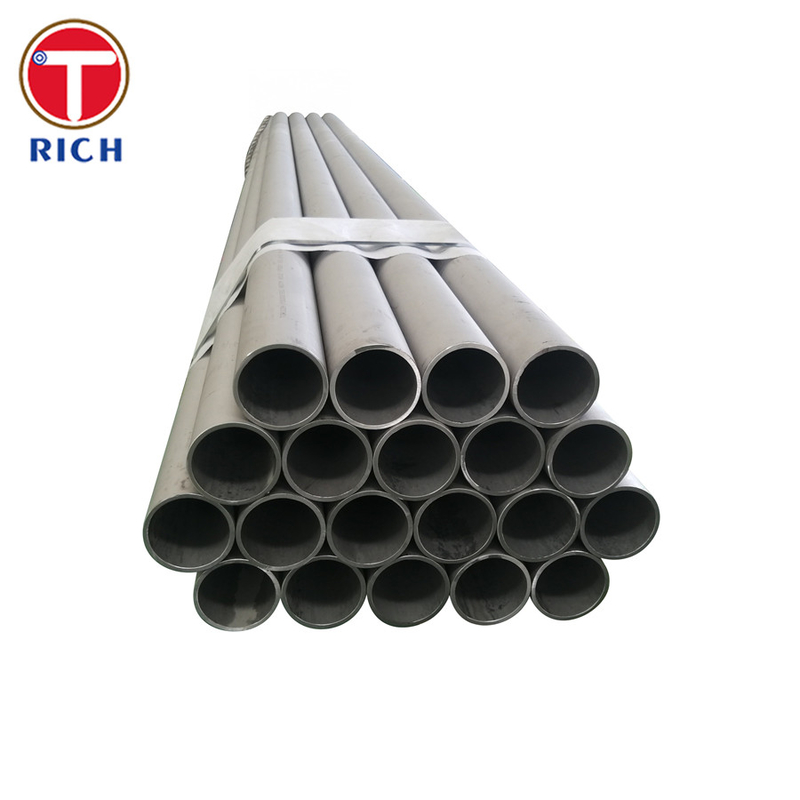

54.1mm Astm A513 Automotive Steel Tube 1010 1020 1015
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
ISO9001
Trading Properties
Minimum Order Quantity:
2Ton
Payment Terms:
L/C,D/A,D/P,T/T
Supply Ability:
5000Ton per years
Product Summary
Astm A513 1010 1020 1015 Automotive Steel Tube 1. Scope 1.1 This specification covers resistance welded carbon and alloy steel pipes used as mechanical pipes 1.2 This specifification covers mechanical tubing made from hot- or cold-rolled steel. 2. Materials and Manufacture 2.1 The steel may be made ...
Product Details
Highlight:
precision 1020 steel tube
,astm a513 automotive steel tube
,1010 automotive steel tube
Heatment:
BKS, NBK,Stress Relieved Annealing
Technical:
Drawn Over Mandral
Material:
1010 1020 1015
Brand:
TORICH
WT:
3.05mm
OD:
54.1mm
Product Description
Astm A513 1010 1020 1015 Automotive Steel Tube
1. Scope
1.1 This specification covers resistance welded carbon and alloy steel pipes used as mechanical pipes
1.2 This specifification covers mechanical tubing made from hot- or cold-rolled steel.
2. Materials and Manufacture
2.1 The steel may be made by any process.
2.2 If a specifific type of melting is required by the purchaser,it shall be as stated on the purchase order.
Chemical components:
| Grade | Carbon | Manganese | Phosphorus max | Sulfur max |
| 1010 | 0.05-0.15 | 0.3-0.6 | 0.035 | 0.035 |
| 1015 | 0.1-0.2 | 0.3-0.6 | 0.035 | 0.035 |
| 1020 | 0.15-0.25 | 0.3-0.6 | 0.035 | 0.035 |
Mechanicl Properties:
| Grade | Tensile strength min | Yield strength min | Elongation min | Hardness |
| 1010 | 415 | 345 | 5 | 73 |
| 1015 | 450 | 380 | 5 | 77 |
| 1020 | 480 | 415 | 5 | 80 |
