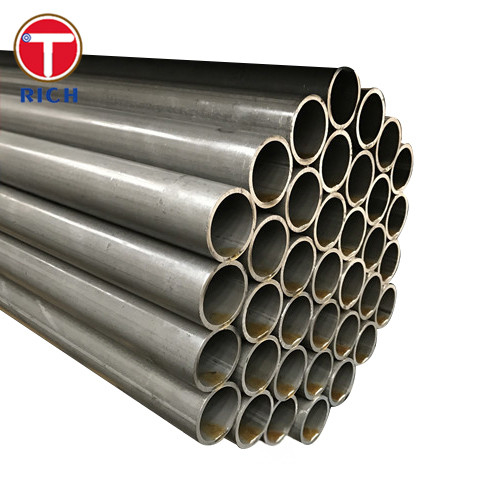

A 556 / A 556m Grade A2 Seamless Boiler Tubes Carbon Steel
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
ISO9001
Trading Properties
Minimum Order Quantity:
2Ton
Price:
USD2000-3000
Payment Terms:
L/C,D/A,D/P,T/T
Supply Ability:
50000Ton per years
Product Summary
A 556/A 556M Grade A2 Seamless Carbon Steel Boiler Tubes for Boiler Pipe 1.Standard Scope 1.1 This specifification2 covers minimum-wall-thickness,seamless cold-drawn carbon steel tubes including bending into the form of U-tubes, if specifified,for use in tubular feedwater heaters. 1.2 The tubing ...
Product Details
Highlight:
precision seamless boiler tubes
,a 556 seamless boiler tubes
,precision carbon steel boiler tubes
Application:
Boiler
Grade:
A2, B2, C2
Supply Ability:
60000 Ton Per Year
Standard:
ASTM A556
Product Description
A 556/A 556M Grade A2 Seamless Carbon Steel Boiler Tubes for Boiler Pipe
1.Standard Scope
1.1 This specifification2 covers minimum-wall-thickness,seamless cold-drawn carbon steel tubes
including bending into the form of U-tubes, if specifified,for use in tubular feedwater heaters.
1.2 The tubing sizes covered shall be 5 ⁄8 to 11 ⁄4-in. [15.9 to 31.8-mm] outside diameter, inclusive,
with minimum wall thicknesses equal to or greater than 0.045 in. [1.1 mm].
1.3 Optional supplementary requirements are provided, and when desired,shall be stated in the order.
2.Manufacture
(1)Manufactur-------Tubes shall be made by the seamless process and shall be cold drawn.
(2 )Heat Treatment:
2.2.1 Cold-drawn tubes shall be heat treated after the fifinal cold-draw pass at a temperature
of 1200°F[640°C] or higher to ensure ductility satisfactory for rolling into tube sheets and tomeet
mechanical properties as specifified.
2.2.2 If stress-relief anneal of the U-bends is specifified, the anneal shall consist of heating the bent
portion within a range of 1100 to 1200°F [585 to 640°C].
3.Chemical Requirement :
|
Element | Composition ,% | ||
| Grade A2 | Grade B2 | Grade C2 | |
| Carbon, max | 0.18 | 0.27 | 0.30 |
| Manganese | 0.27-0.63 | 0.29-0.93 | 0.29-1.06 |
| Phosphorus, max | 0.035 | 0.035 | 0.035 |
| Sulfur, max | 0.035 | 0.035 | 0.035 |
| Silicon , min | ... | 0.10 | 0.10 |
4.Tensile Requirements:
| Grade A2 | Grade B2 | Grade C2 | |
| Tensile strength,min,ksi(Mpa) | 47(320) | 60(410) | 70(480) |
| Yield Strength,min,ksi(Mpa) | 26(180) | 37(260) | 40(280) |
| Elongation in 2 in or 50min, min,%(longitudinal) | 35 |
30 | 30 |
