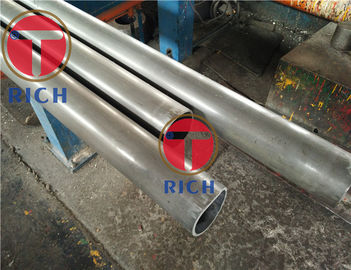

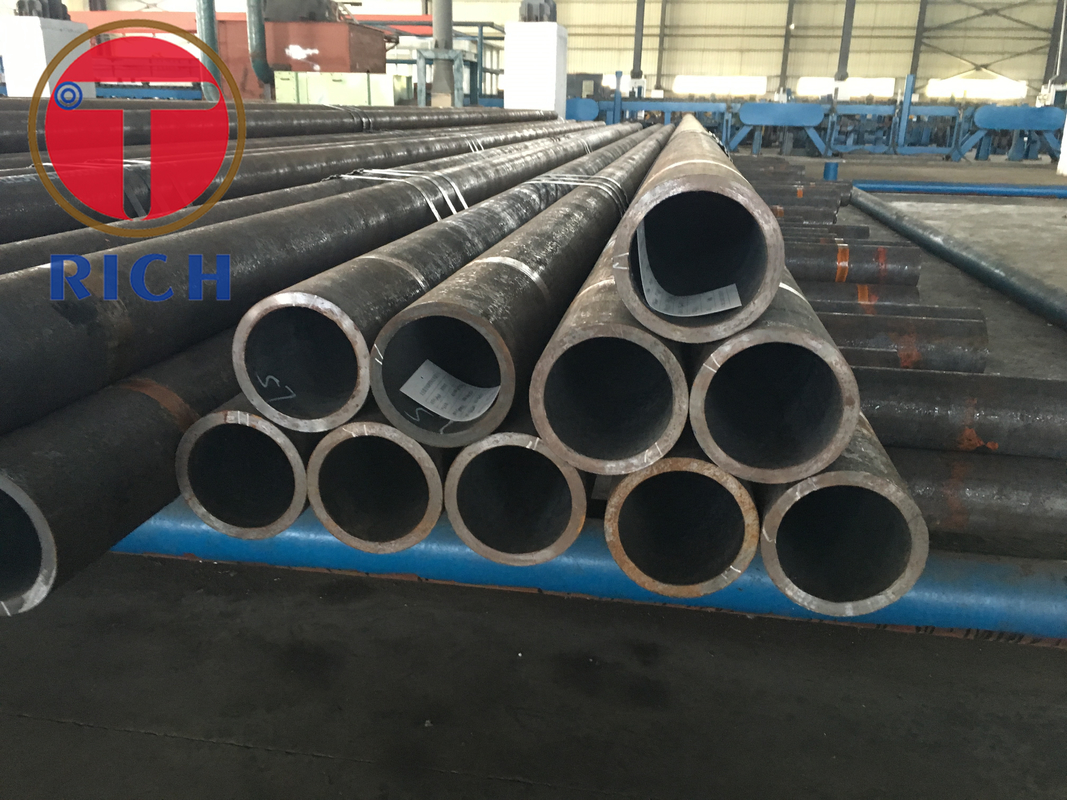

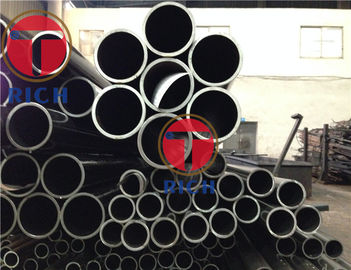

Astm A519 Mt1010 Cold Drawn Seamless Steel Tube Round For Boiler
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
ISO9001
Trading Properties
Minimum Order Quantity:
2Ton
Price:
USD1100-1500
Payment Terms:
L/C,T/T, D/P
Product Summary
ASTM A519 MT1010 Cold Drawn Round Seamless Steel tube for Boiler 1. ASTM A519 Scope 1.2 this specification covers seamless thermoformed mechanical tubes and seamless cold formed mechanical tubes 12 3 ⁄ 4 in. And smaller. Outer diameter of round pipe with wall thickness meeting requirements (323.8 mm...
Product Details
Highlight:
astm cold drawn seamless steel tube
,a519 cold drawn seamless steel tube
,astm a519 cold drawn seamless tubing
Material:
MT1020 MT1010
Brand:
TORICH
Length:
Customer Requirements
OD:
AS ASTM A519
WT:
AS ASTM A519
Application:
Boiler,Mechanical
Product Description
ASTM A519 MT1010 Cold Drawn Round Seamless Steel tube for Boiler
1. ASTM A519 Scope
1.2 this specification covers seamless thermoformed mechanical tubes and seamless cold formed
mechanical tubes 12 3 ⁄ 4 in. And smaller. Outer diameter of round pipe with wall thickness meeting
requirements (323.8 mm).
1.3 pipes shall be provided in the following shapes as specified by the buyer: round, square,
rectangular and round Special sections.
1.4 optional supplementary requirements are provided and shall be stated in the order if necessary.
1.5 values expressed in inch pound units shall be considered standard. The values given
in parentheses are for reference only
2. Materials and Manufacture
(1 )The steel may be made by any process.
(2) If a specifific type of melting is required by the purchaser, it shall be as stated on the purchase order.
(3) The primary melting may incorporate separate degassing or refifining, and may be followed by
secondary melting,such as electroslag or vacuum-arc remelting. If secondary melting is employed,
the heat shall be defifined as all of the ingots remelted from a single primary heat.
(4) Steel may be cast in ingots or may be strand cast. When steel of different grades is sequentially
strand cast, identifification of the resultant transition material is required. The producer shall remove
the transition material by an established procedure that positively separates the grades.
3. Chemical Requirements
| Chemical Requirements | |||
| Element | Composition, % | ||
| MT1015 | MT1010 | MT1020 | |
| Carbon | 0.10-0.2 | 0.05-0.15 | 0.15-0.25 |
| Manganese | 0.3-0.6 | 0.30–0.60 | 0.30-0.60 |
| Phosphorus, max | 0.04 | 0.04 | 0.04 |
| Sulfur, max | 0.05 | 0.05 | 0.05 |
