Inconel 718 Od420mm Torich Nickel Alloy Tube

Basic Information
Place of Origin: ZheJiang,CHINA
Brand Name: TORICH
Model Number: 718
Minimum Order Quantity: 1 Tons
Price: USD 800-1200/Ton
Packaging Details: In bundles or in wooden boxes packaging.as per clients' options.
Delivery Time: 30-45 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 60000 Tons/Year
Detail Information
Standards: Inconel 718 Nickel Alloy Tube Grade: 718
O.D.: 5-420mm W.T.: 0.5-50mm
Length: Max 12000mm Brand: Torich
High Light:

torich inconel 718 tube

,

torich nickel alloy tube

,

od 420mm nickel alloy tube


Product Description

Inconel 718 Nickel Alloy Tube



Inconel 718 nickel alloy tube is an age-hardenable nickel-chromium-iron alloy also containing significant amounts of niobium, molybdenum, titanium and aluminum. It combines good corrosion resistance with extremely high strength. Typical applications include heat exchangers and O-rings.
ASTM B163 Alloy 718 Tube , is an austenitic nickel-based superalloy.718 inconel tube exhibits excellent high yield tensile and creep-rupture properties at temperatures up to 1300ºF and oxidation resistance to 1800ºF. Inconel 718 tube W. Nr 2.4668 is used in applications that require high strength such as parts for jet engines and high speed airframe parts such as wheels, buckets, spacers and high temperature bolts and fasteners.



ASTM B516 Inconel 718 Tube Specification



Inconel 718 Tube Standards ASTM B163, ASTM B516 / ASME SB163, ASME SB516
Seamless Tube Size 3.35 mm OD To 101.6 mm OD
Inconel 718 Welded Tube Size 6.35 mm OD To 152 mm OD
Swg & Bwg 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
Inconel 718 tubing wall thickness 0.020" –0.220", (special wall thicknesses available)
Alloy 718 tube Length Single Random, Double Random, Standard & Cut length
Inconel Alloy 718 Tube Finish Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF
Key Word Nickel alloy tube/pipe
Form Round, Coil, Square, Rectangular, Boiler, Hydraulic, Straight or ‘U’ bent Tubes, Hollow, LSAW Tubes Etc.
Inconel 718 Tube Type Seamless, ERW, EFW, Welded, Fabricated
End Plain End, Beveled End, Treaded
Marking All Inconel tube are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.)
Inconel 718 Tubing Chemical Composition



Grade C Mn Si S Cu Fe Ni Cr
Inconel 718 0.08 max 0.35 max 0.35 max 0.015max 0.30 max 50.00 – 55.00 17.00 – 21.00
Inconel 718 Tubing Mechanical Properties
Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 718 8.2 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 482 45 %







Alloy 718 is popular with a number of different critical industries and applications including:

  • Gas turbine components
  • Cryogenic storage tanks
  • Jet engines
  • Liquid fueled rocket motors and components
  • Fasteners and instrumentation parts
  • Nuclear fuel element spacers
  • Hot extrusion tooling
  • Down hole shafting and strength bolting

Product Pictures:

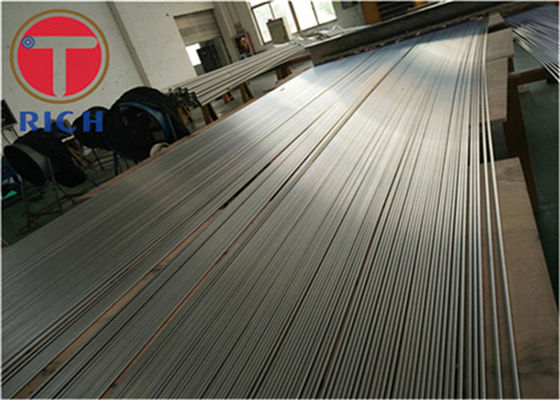

Inconel 718 Od420mm Torich Nickel Alloy Tube 0

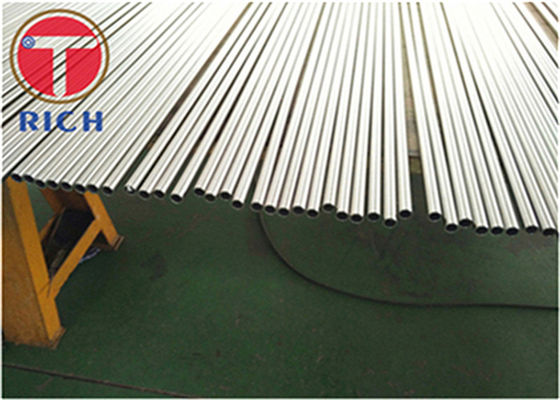

Inconel 718 Od420mm Torich Nickel Alloy Tube 1

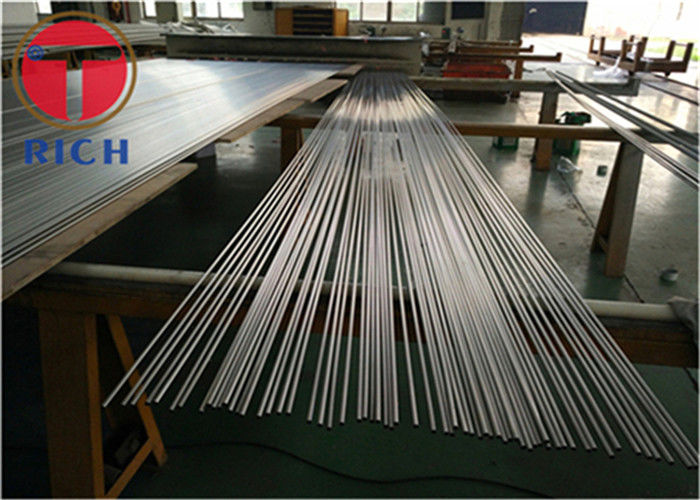

Inconel 718 Od420mm Torich Nickel Alloy Tube 2





Company Introduction:

Inconel 718 Od420mm Torich Nickel Alloy Tube 3

Inconel 718 Od420mm Torich Nickel Alloy Tube 4

Inconel 718 Od420mm Torich Nickel Alloy Tube 5

FAQ:

Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample of Cold drawn ERW DOM tubes ASTM A513 1010 1020 1026 for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
