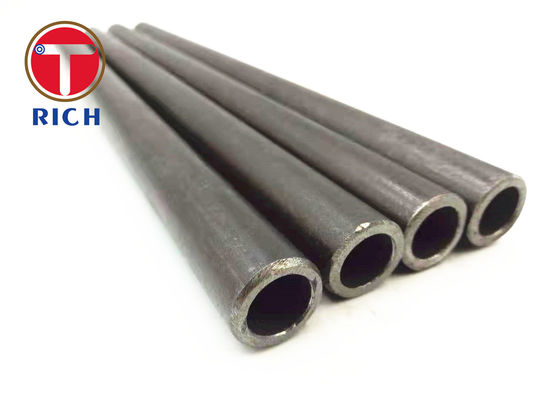

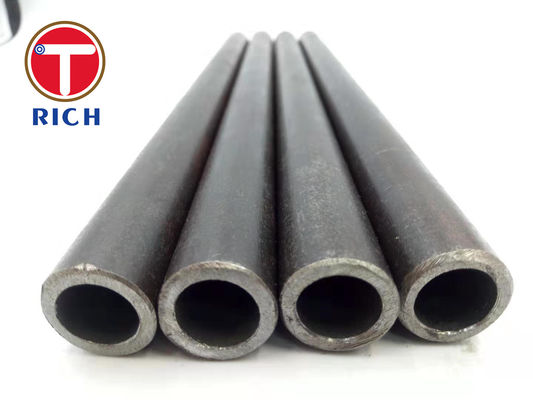

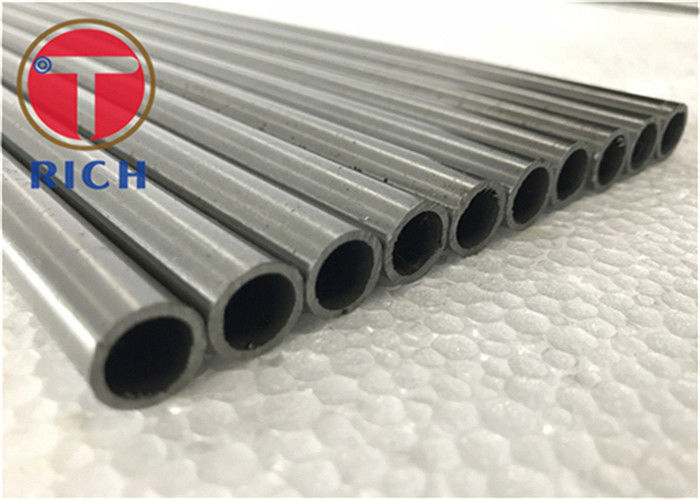

En10305-2 E155 E195 Precision Steel Tubes
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
ISO9001
Trading Properties
Minimum Order Quantity:
2Ton
Price:
USD1000-1500
Supply Ability:
5000Ton per years
Product Summary
En10305-2 E155 E195 Precision Steel Tubes 1.Chinese leading supplier of precision steel pipes, using high-quality hydraulic precision steel pipes, Precision carbon steel pipe, precision seamless steel pipe, CDs steel pipe, CDW steel pipe 2.Production process: Cold rolling mill and cold rolling mill ...
Product Details
Highlight:
e195 precision steel tubes
,precision steel tubes torich
,e155 precision tubes
Tolerance:
According To EN10305-2 Or As Required
Type:
Cold Drawing
Length:
Client Requirement
Material:
E235, E355, 26MnB5, 34MnB5, Q345B, STK490, 45#
Product Description
En10305-2 E155 E195 Precision Steel Tubes
1.Chinese leading supplier of precision steel pipes, using high-quality hydraulic precision steel pipes,
Precision carbon steel pipe, precision seamless steel pipe, CDs steel pipe, CDW steel pipe
2.Production process:
Cold rolling mill and cold rolling mill
Size: 20-350 mm
When sending the inquiry, please describe the final heat treatment.
3.Steel Grade and Chemical Compositions
| Steel Grade | C | Si | MN | P | S |
| Steel Name | max | max | max | max | max |
| E155 | 0.11 | 0.35 | 0.7 | 0.025 | 0.025 |
| E195 | 0.15 | 0.35 | 0.70 | 0.025 | 0.025 |
| E235 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 |
| E355 | 0.22 | 0.35 | 1.60 | 0.025 | 0.025 |
6.Deliver condition:
1). +C No heat treatment after the final cold drawig process
2). +LC After the final heat treatment there is a suitable drawing pass
3). +SR After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere
4). +A After the final cold drawing process the tubes are annealed in a controlled atmosphere
5). +N After the final cold drawing operation the tubes are normalized in a controlled atmosphere
5). +N After the final cold drawing operation the tubes are normalized in a controlled atmosphere
