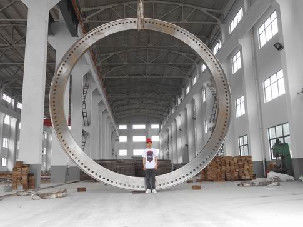

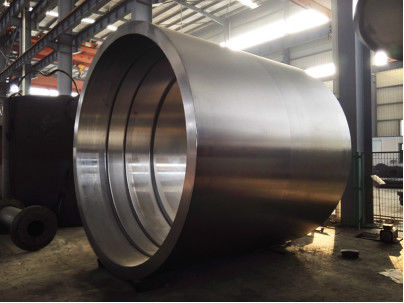

Iso Torich Forging 304 Stainless Steel Od 3000mm
Product Details
torich forging 304 stainless steel
,forging 304 stainless steel od 3000mm
,iso stainless steel forging
TORICH 420 304 40CrNiMo Annealing and Tempering Stainless Carbon Alloy Forging
Details:
| Material | 42CrMo4, 18CrNiMo7-6, 40CrNiMo,34CrNiMo6,304,316,321,410,420,1020,1035,1045 |
| Size Range | OD:＜3000mm, WT:＜800mm, Length:＜3000mm |
| Delivery conition: | Carbon or alloy: Normalizing+Tempering / Stainless: Solid Solution Pickling for tubesheet drilling |
| Raw material | Round steel, steel ingot |

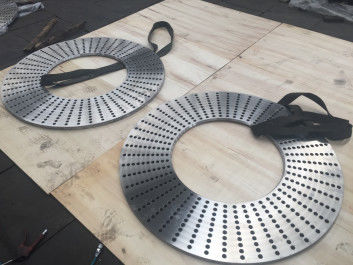

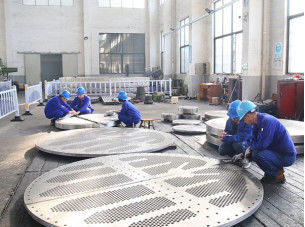

| Application | Fertilizer, oil refining, power station, agricultural machinery, metallurgy, mining, machinery and equipment,tubesheet in heatexchanger |
| MOQ | 1 pc |
| Non-destructive testing | Ultrasonic test |
| Delivery time | 15-30 days to produce |
What is the forging:
Forging is a processing process. A forging is an object in which a metal is subjected to pressure to shape the required shape or suitable compression force through plastic deformation. This force is typically achieved through the use of a hammer or pressure. The forging process creates a fine grain structure and improves the physical properties of the metal. In the actual use of parts, a correct design can make the particles flow in the direction of the main pressure.
Forgings need to be consistent in each piece, without any porosity, inclusions or other defects. The components produced by this method have a high ratio of strength to weight.
The advantages of forgings are stretchable length; shrinkable length and stretchable cross-section; changeable length and changeable cross-section.
Forgings need to be consistent in each piece, without any porosity, inclusions or other defects. The components produced by this method have a high ratio of strength to weight. These elements are commonly used in aircraft structures.
The advantages of forgings include stretchable length and shrinkable cross-section; shrinkable length and stretchable cross-section; changeable length and changeable cross-section. The types of forgings are: free forging/hand forging, hot die forging/precision forging, upsetting, roll forging and die forging.
QUALITY CONTROL:
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.
Show:
FAQ
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but you need to pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
If you have another question, pls feel free to contact us
-
