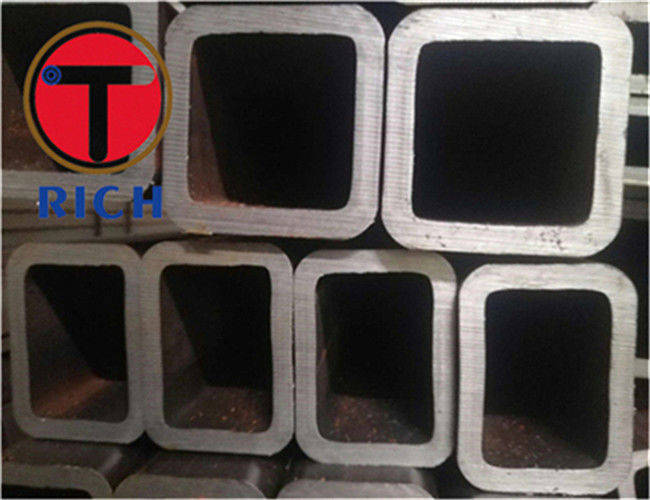

ASTM A500 GR A Cold Formed Seamless Torich Rectangle Steel Tube
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
ISO9001
Trading Properties
Minimum Order Quantity:
5Ton
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
50000 Ton Per Years
Product Summary
ASTM A500 GR A Cold Formed Seamless Rectangle Steel Tube Standred: 1.1 This specifification covers cold-formed welded and seamless carbon steel round, square, rectangular, or special shapestructural tubing for welded, riveted, or bolted construction of bridges and buildings, and for general ...
Product Details
Highlight:
Torich Cold Formed Steel Tube
,ASTM A500 Rectangle Steel Tube
,A500 GR A Rectangle Steel Tube
Place Of Origin:
ZheJiang,NingBo
Application:
General Structure
Alloy Or Not:
IS-Alloy
Special Pipe:
Other
Production Method:
Seamless Or Welded
Grade:
A,B,C,D
Type:
Cold Formed
Shape:
Rectangle
Product Description
ASTM A500 GR A Cold Formed Seamless Rectangle Steel Tube
Standred:
1.1 This specifification covers cold-formed welded and seamless carbon steel round, square,
rectangular, or special shapestructural tubing for welded, riveted, or bolted construction of
bridges and buildings, and for general structural purposes.
1.2 This tubing is produced in both welded and seamless sizes with a periphery of 64 in.
(1626 mm) or less, and a specifified wall thickness of 0.625 in. (15.88 mm) or less. Grade
D requires heat treatment.
Product Detaileds:
| Tube: | Seamless Steel Tube |
| Standred: | ASTM A500 |
| Production Method: | Cold Formed |
| Material: | GR A,GR B,GR C,GR D |
Chemical Requirement:
| Chemical Requirement | ||||
| Element | Grade A, B, D | Grade C | ||
| Heat Analysis | Product Analysis | Heat Analysis | Product Analysis | |
| Carbon, max | 0.26 | 0.3 | 0.23 | 0.27 |
| Manganese, max | 1.35 | 1.40 | 1.35 | 1.4 |
| Phosphorus, max | 0.035 | 0.045 | 0.035 | 0.045 |
| Sulfur, max | 0.035 | 0.045 | 0.035 | 0.045 |
| Copper, max | 0.2 | 0.18 | 0.2 | 0.18 |
Size range:
| O.D. | 230-600mm |
| W.T. | 1-24mm |
| Length | max 12000mm |
