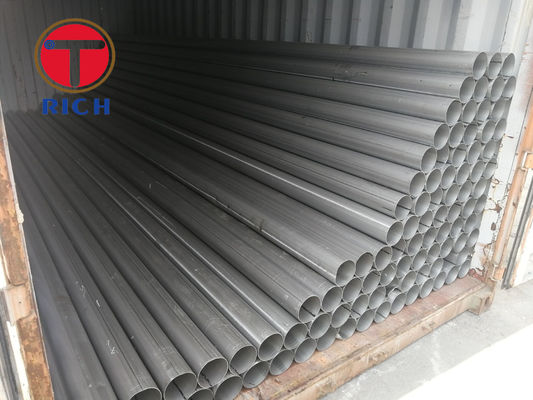

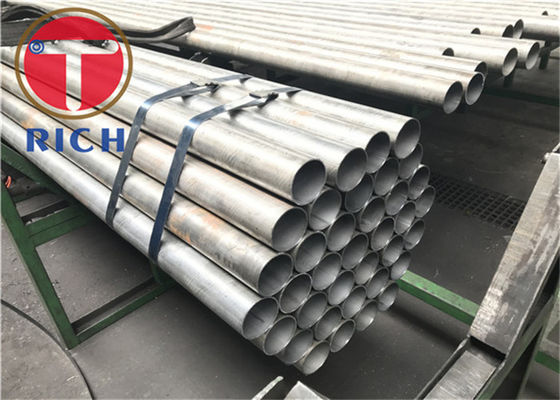

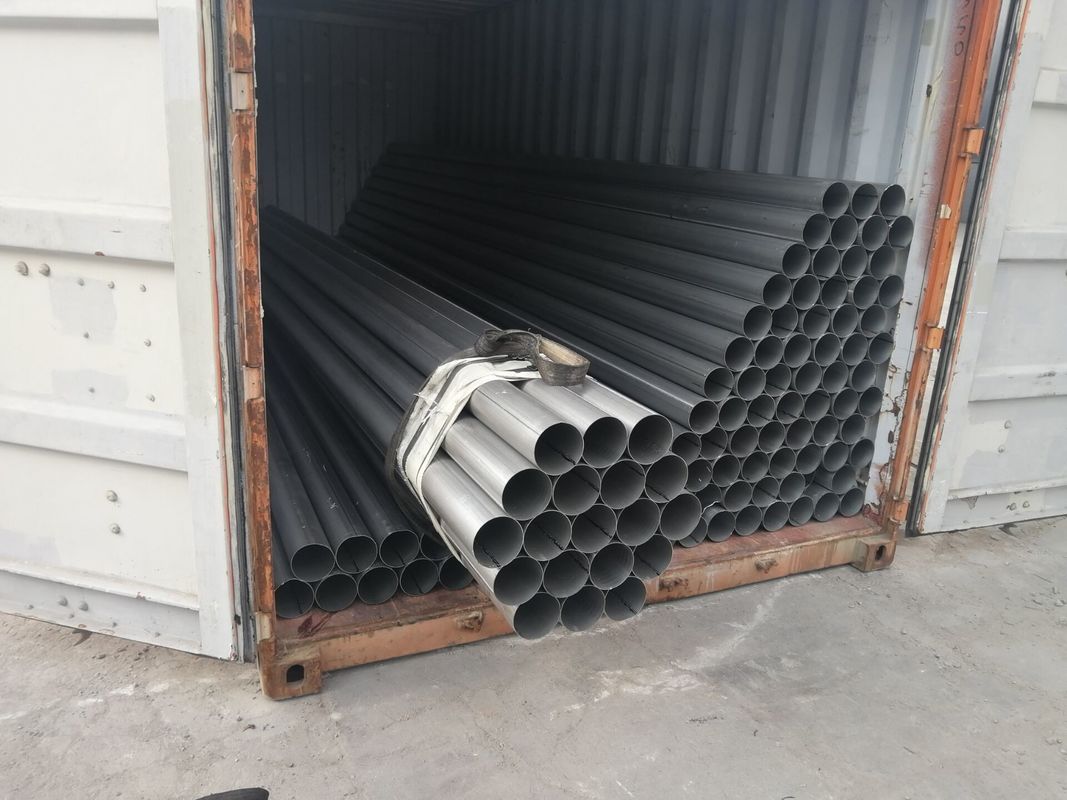

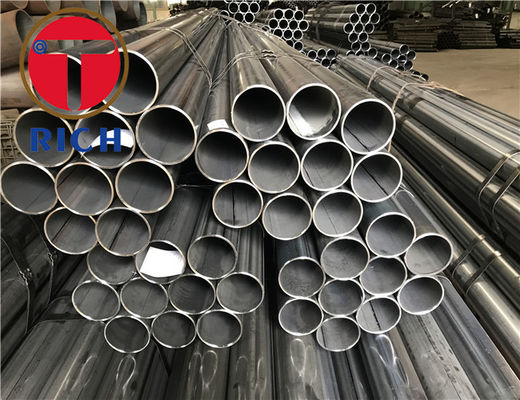

ASTM A334 Gr1 Gr6 Torich Welded Carbon Steel Tube
Product Details
Gr6 Welded Carbon Steel Tube
,ASTM A334 Welded Carbon Steel Tube
,Gr1 Erw Carbon Steel Pipe
ASTM A334 Gr1 Gr6 Welded Carbon Steel Tube
Sope:
1 This specification covers several grades of minimum-wall-thickness, seamless and welded,
carbon and alloy-steel tubes intended for use at low temperatures. Some product sizes may not be
available under this specification because heavier wall thicknesses have an adverse affect on
low-temperature impact properties.
2 Supplementary Requirement S1 of an optional nature is provided. This shall apply only when
specified by the purchaser. NOTE 1 For tubing smaller than 1/2 in. [12.7 mm] in outside diameter,
the elongation values given for strip specimens in Table 1 shall apply. Mechanical property
requirements do not apply to tubing smaller than 1/8 in. [3.2 mm] in outside diameter and with
a wall thickness under 0.015 in. [0.4 mm].
Chemical composition
| Grade | Mfg. Process | Chemical composition(%) | ||||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | Others | ||
| Gr1 | 0.30Max | 0.40~1.06 | 0.05Max | 0.60Max | (STBL450) | |||||
| Gr3 | 0.19Max | 0.18~0.37 | 0.31~0.64 | 0.05Max | 0.050Max | 3018 | ||||
| Gr6 | 0.30Max | 0.10Max | 0.29~1.06 | 0.048Max | 0.058Max | |||||
| Gr7 | 0.19Max | 0.13~0.32 | 0.90Max | 0.04Max | 0.050Max | 2.03~2.57 | (STBL690) | |||
| Gr8 | 0.18Max | 0.13~0.32 | 0.90Max | 0.045Max | 0.045Max | 8.40~9.60 | (Cu0.75~1.25) | |||
| Gr9 | 0.20Max | - | 0.40~1.06 | 0.045Max | 0.50Max | 1.60~2.24 | ||||
Mechanical Properties
| Grade | Tensile Test MPa or N/mm2 | Remaks (Similar to JIS) | Possibility Temperature
| |
| Min Yield point | Tensile Strength | |||
| Gr. 1 | 205 | 380Min | Impact Test(J) 2V 18 | |
| Gr. 3 | 240 | 450Min | 2V 18 | |
| Gr. 6 | 240 | 415Min | 2V 18 | |
| Gr. 7 | 240 | 450Min | 2V 18 | |
| Gr. 8 | 520 | 690Min | 2V 18 | |
| Gr. 9 | 315 | 435Min | 2V 18 | |
-
