C11000 Torich Od 8mm Fin Fan Exchanger Ts16949
Basic Properties
Place of Origin:
Zhejiang,CN
Brand Name:
TORICH
Certification:
ISO 9001,ISO14001,TS16949
Model Number:
GB/T19447
Trading Properties
Minimum Order Quantity:
500 KGS
Price:
negotiable
Payment Terms:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:
50000 TONS PER YEAR
Product Summary
fin fan exchanger About Finned Pipe With an aim to increase the heat exchanging efficiency, It’s usually to extend the surface area (or internal surface area) by adding fins onto a tube, which through this manufacturing process, would greatly improve and upgrade the heat transferring efficiency of ...
Product Details
Highlight:
od 8mm fin fan exchanger
,c11000 fin fan exchanger
,torich fin fan heat exchanger
Product Name:
Fin Fan Exchanger
Keyword:
Fin Fan Exchanger
Shape:
Round
Application:
For Boiler And Heat Exchanger
Material:
C11000 C10200 C12200
Surface:
Copper Coated
Length:
Max 12000mm
Tube OD:
8-55mm
Fin Thickness:
0.1-2mm
Brand:
TORICH
Product Description
fin fan exchanger

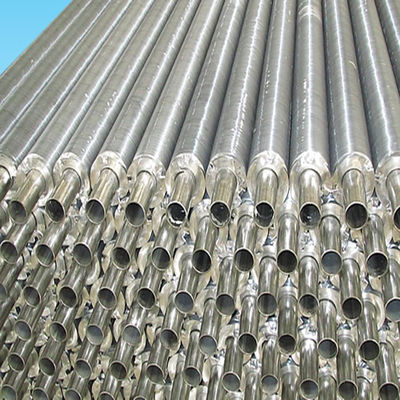

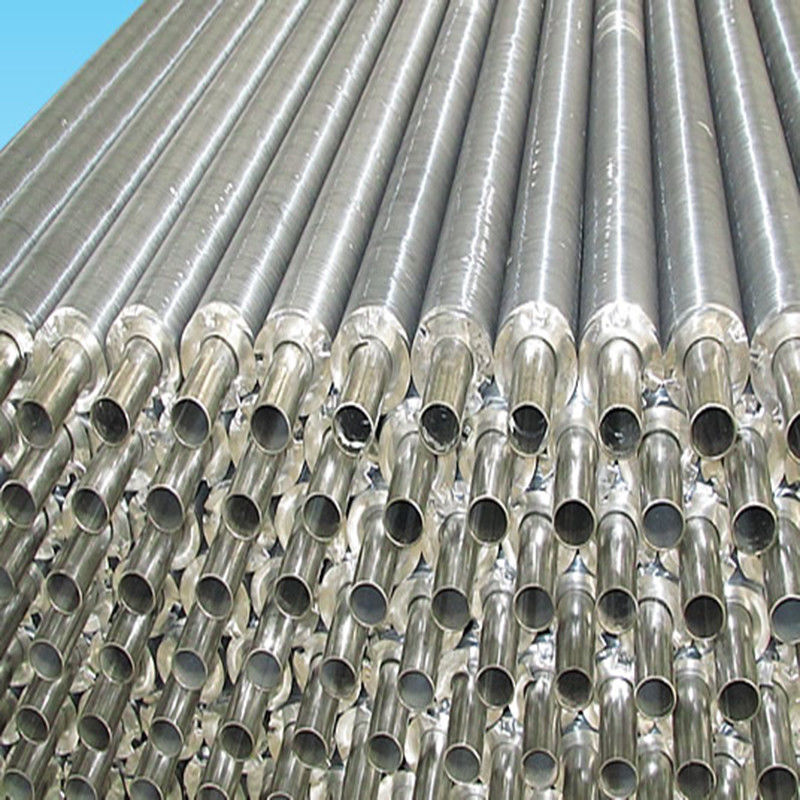

About Finned Pipe
With an aim to increase the heat exchanging efficiency, It’s usually to extend the surface area (or internal surface area) by adding fins onto a tube, which through this manufacturing process, would greatly improve and upgrade the heat transferring efficiency of heating tube, it's called Finned Tube or Fin Pipe.
Welded finned tubes
Extruded finned tubes
Welded helical solid finned tubes
Welded serrated finned tubes
Welded helical serrated finned tubes
Application: finned heat heatechangers
| Specification of Steel tube with crimped steel fin | ||||
| Tube Size | Fin (OD) | Fin Height | Fin Thickness | Fins Distance |
| Φ18x2 mm | Φ38 mm | 10 mm | 0.3 mm | 4-5 mm |
| Φ21x2 mm | Φ45 mm | 12 mm | 0.3 mm | 5-8 mm |
| Φ21x2 mm | Φ51 mm | 15 mm | 0.3 mm | 5-8 mm |
| Φ25x2 mm | Φ50 mm | 12.5 mm | 0.3 mm | 5-8 mm |
| Φ25x2 mm | Φ55 mm | 15 mm | 0.3 mm | 5-8 mm |
| Φ32x3 mm | Φ62 mm | 15 mm | 0.3 mm | 8-10 mm |
| Other finned tube size can be customized. | ||||
| (Materials S/S 201, S/S 304, S/S 316 are optional) | ||||
