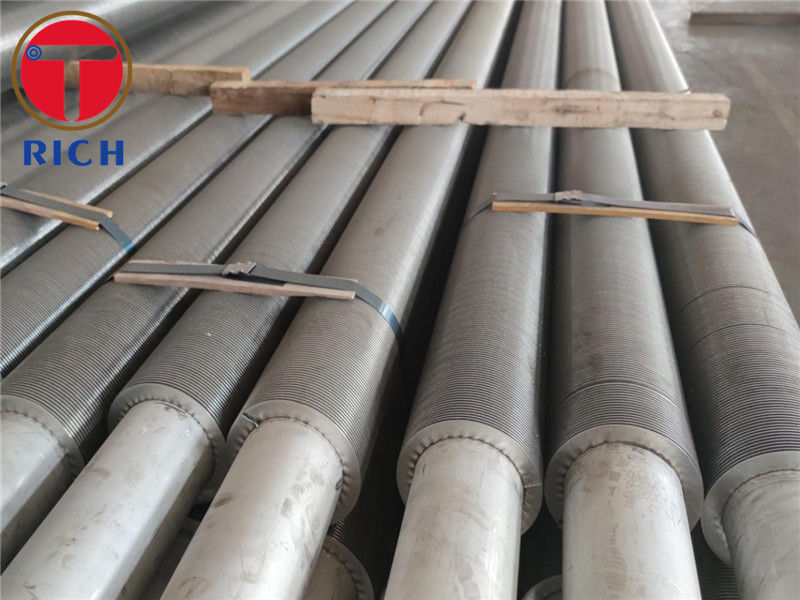

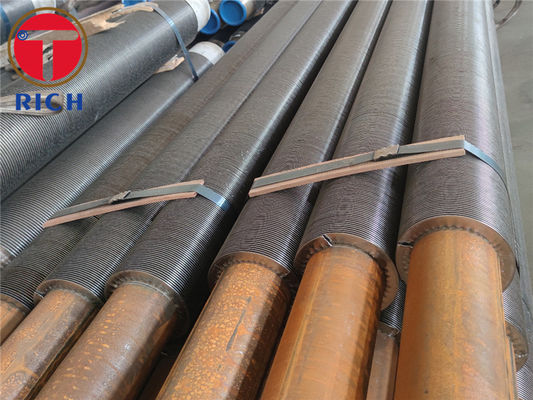

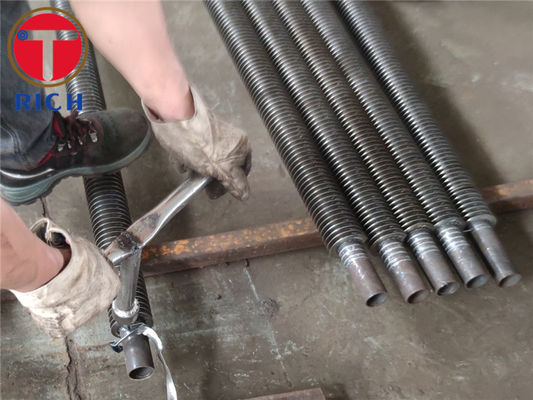

High Frequency Welded Aluminum 2mm Spiral Finned Tube
Product Details
api spiral finned tube
,2mm spiral finned tube
,2mm aluminium finned tubes
High Frequency Welded Spiral Finned Aluminum Fins Tube Finube Fin Caoutchouc
Advantages of high frequency welding spiral finned tube
1. The installation is simple and economical. The large length of high-frequency welded
spiral finned tube can reach more than 20 meters, and there is no connection point,
which makes the installation more economical and fast, and reduces the probability
of water leakage at the connection.
2. The maintenance is simple. After the installation of high-frequency
welded spiral finned tube, there is basically no maintenance.

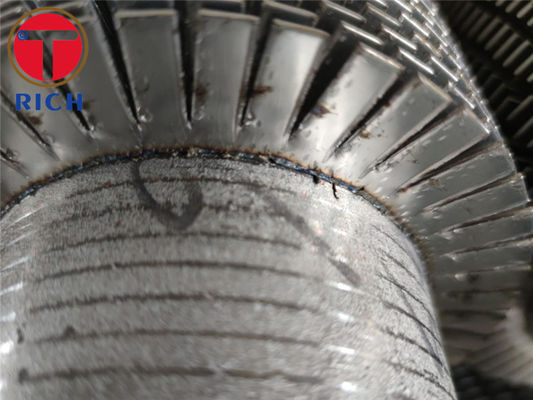

3. High efficiency, high-frequency welding spiral finned tube is full contact welding between fins
and steel pipe, the heat dissipation area is more than 8 times that of smooth tube, the interior is
smoother and the internal water flow resistance is small.
4. Long service life, high mechanical strength of the combination of fins and pipes, tensile
strength of more than 200MPa, and hot-dip galvanizing treatment is adopted inside and outside the pipe.
Material:carbon steel, stainless steel, copper, copper-zinc, copper-nickel, aluminium
Base Tube Diameter 12.7-25.4mm
Base Tube Wall Thiness 1.65-3.0mm
Fin Thickness is 0.3-0.5mm
Fin pitch 0.9-1.5mm
Fin high 0.9-1.3mm
