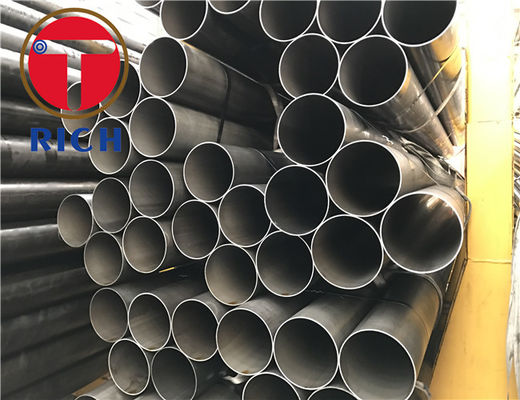

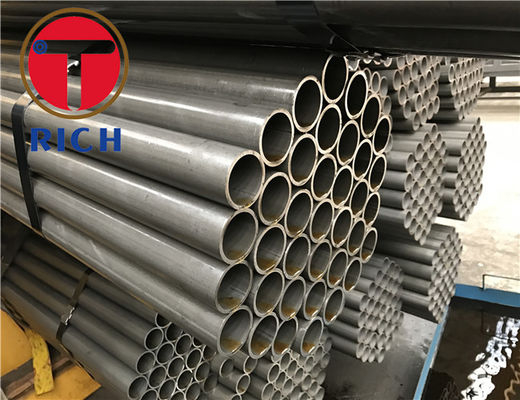

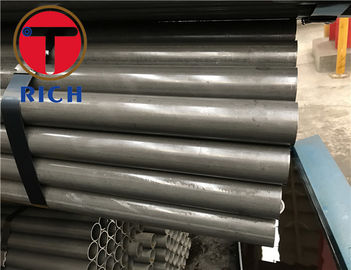

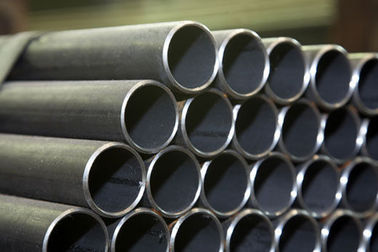

Astm A513 Round Precision Sae 1020 Dom Steel Tube
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
ISO9001 TS16949
Trading Properties
Minimum Order Quantity:
1 Ton
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
50000 Ton per year
Product Summary
ASTM A513 Precision DOM Steel Tube Products Description: 4.7mm 6.6mm 0.185in 0.26in Precision SAE 1020 ASTM A513 DOM tubing Characteristic: Good concentricity Good OD and ID tolerance High Precision Stable quality Smooth Roughness TORICH QUALITY ASSURANCE Production Processs: ERW tube and Cold ...
Product Details
Highlight:
sae 1020 dom steel tube
,astm a513 dom steel tube
Material:
SAE 1020
Certification:
ISO9001 TS16949
Type:
Cold Drawn,Cold Drawing
Shape:
Round Shape
Size:
OD 4-420mm WT0.5-50mm
Surface Treatment:
Oiling
Product Description
ASTM A513 Precision DOM Steel Tube
Products Description:
4.7mm 6.6mm 0.185in 0.26in Precision SAE 1020 ASTM A513 DOM tubing
Characteristic:
Good concentricity
Good OD and ID tolerance
High Precision
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE
Production Processs:
ERW tube and Cold Drawing or Cold Rolling Production
Chemical Composition Limits,%
| Grade Designation | Carbon | Manganese | Phosphorus, max | Suifur, max |
| MT1010 | 0.05-0.15 | 0.30-0.60 | 0.035 | 0.035 |
| MT1015 | 0.10-0.20 | 0.30-0.60 | 0.035 | 0.035 |
| MT X 1015 | 0.10-0.20 | 0.60-0.90 | 0.035 | 0.035 |
| MT1020 | 0.15-0.25 | 0.30-0.60 | 0.035 | 0.035 |
| MT X 1020 | 0.15-0.25 | 0.70-1.00 | 0.035 | 0.035 |
