SA178a Annealed ASTM A178 ERW Heat Exchanger Tubes
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 1000KG | Price : | negotiable |
|---|---|---|---|
| Packaging Details : | In plywood case | Delivery Time : | 30-45 DAYS |
| Payment Terms : | T/T, L/C, D/A, D/P, Western Union, MoneyGram | Supply Ability : | 5000KG PER YEAR |
| Place of Origin: | Zhejiang,China | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO9001 ISO14001 TS16949 | Model Number: | ASTM A213 |
|
Detail Information |
|||

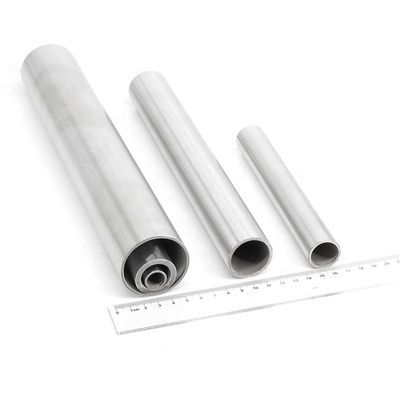

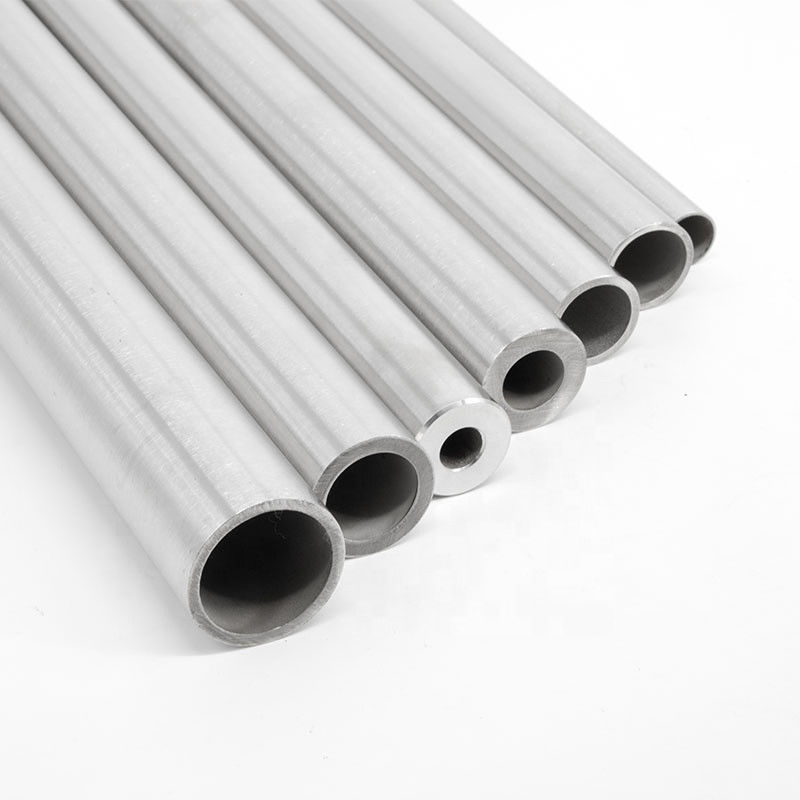

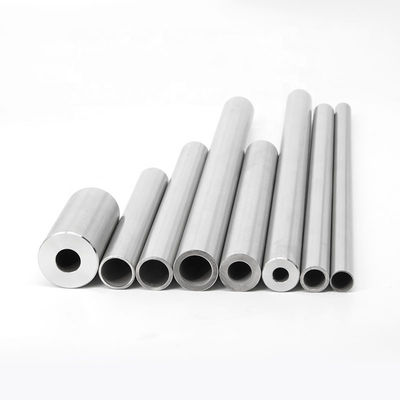

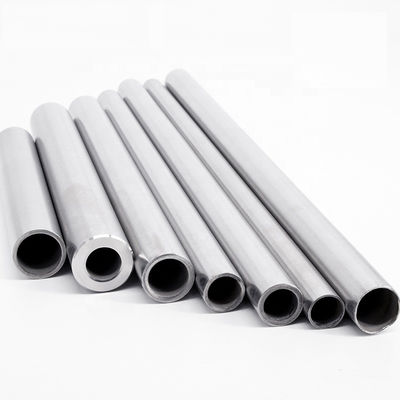

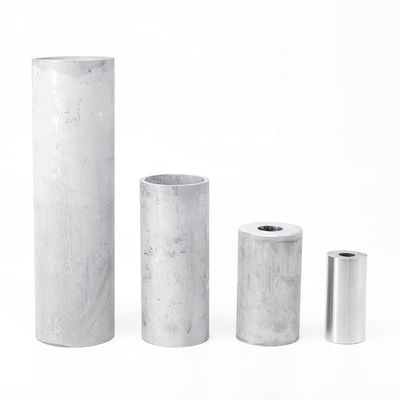

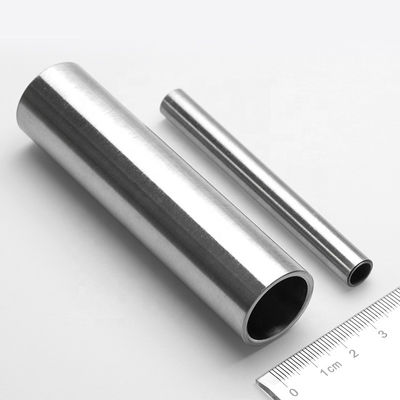

| Product Name: | ASTM A213 TP321 25.4X2.0 Seamless Heat Exchanger Tubes | Keyword: | Heat Exchanger Tubes |
|---|---|---|---|
| Usage: | For Condenser,Heat Exchanger,Evaporator Use | Material: | 316L 316 304 201 |
| Type: | Seamless | Shape: | Round |
| OD: | 3-24.5mm | WT: | 0.3-2.0mm |
| General Delivery Length: | 200-1000mm | Brand: | TORICH |
| High Light: | 25.4x2.0 seamless heat exchanger tubes,tp321 seamless heat exchanger tubes,astm a213 heat exchanger tubes |
||
Product Description
What kind of coiled tubing we can produce?
unit:mm
| OD 4.76 | WT 0.51 0.71 0.89 1.24 |
| OD 6 | WT 1 1.5 |
| OD 6.35 | WT 0.51 0.71 0.89 1.24 1.65 |
| OD 7.94 | WT 0.71 0.89 1.24 1.65 |
| OD 9.53 | WT 0.71 0.89 1.24 1.65 |
| OD 10 | WT 1 1.5 2 |
| OD 12 | WT 1 1.5 |
| OD 12.7 | WT 0.71 0.89 1.24 1.65 |
| OD 14 | WT 1 1.5 2 |
| OD 15.88 | WT 0.71 0.89 1.24 1.65 2.11 |
| OD 16 | WT 1 1.5 2 |
| OD 19.05 | WT 1 1.24 1.65 2.11 |
| OD 25.4 | WT 1.24 1.65 2.11 2.54 |
| OD 31.8 | WT 1.24 1.65 2.11 2.54 |
| OD 38.1 | WT 1.24 1.65 2.11 2.54 3.05 |
D4 / T3 Bright Annealed Stainless Steel Tubes ASTM A213 ASTM A269 EN10216-5 TC1
| Austenite | Standard |  |
| 304/304L, 316/316L | SA213,SA312, GB14976-2012, GB13296-2013, EN10216-5 |
|
| 317/317L, 321 | ||
| 316Lmod, 2522 | SA213 | |
| Superaustenitic | Standard |  |
| 904L | GB13296-2013, SB677 | |
| 254SMO ( S31254 ) | SA213, SA269 | |
| N08926 | SA249/M, SB677 | |
| N08925 | ||
| Duplex steel | Standard |  |
| S32205, S31803, S32900 | SA789, SA790, GB/T21833-2008 | |
| S31260, S32750 | ||
| S32760, S32707 | ||
| S31500, S32304 | ||
| Ferrite, Martensitic | Standard |  |
| 405, 410, 430, 446-1, 44400, 1Cr25Ti | SA213, SA268, GB/T14976-2012 | |
| Superferrite | Standard | |
| 44660 | SA268 | |
| Heat Resistant Ferrite | Standard |  |
| 0Cr18SiAl | GB/T14976-2012 | |
| Heat Resistant Austenite | Standard | |
| 310S, 314 | SA213, SA312 | |
| 253MA ( S30815 ) | SA213, SA276 | |
| PH Stainless Steel | Standard |  |
| 17-4PH ( C630 ) | ||
| High pressure boiler tube | Standard | |
| 304H,321H,347H | GB5310-2008, GB13296 | |
| Nickel base corrosion-resistant alloy | Standard |  |
| N02200, N02201, N08800, N08810, N08825, N08811, N06601, N06600 |
SB163, SB167, SB423 | |
| Titanium alloy | Standard | |
| Gr1, Gr2, TA1, TA2 | SB163 | |
Bright annealed stainless steel tubes as per following standard:
ASTM A213 ASTM A269 EN10216-5 TC-1
Tolerance:D4/T3 (±0.5%,±0.1 min)/(±10%,±0.2 min)
NDT Tests:Eddy Current or Hydraulic Test or UT
Heat treatment on tubes: Bright Annealed
stainless seamless tube
Quality Assurance: ISO 9001&PED 97/23/EC certificated with 100% traceability on all instrument tubes and material test reports(EN 10204/3.1B)accompany every shipment upon request.
Application:
Instrument Tubing
Chromatography tubing
Hydraulic Tubing
High Pressure Tubing
Cleaned Tubing
Multi Core Tubing
Why choose bright annealed tube?
1. Superior Surface Finish
The traditional annealing :Open furnace---Oxygen atmosphere---form Scale, tarnish the material,For more than 12m tubes this method is hard to clean inner surface.
A special bright annealing:Closed furnace---Intert atmosphere use noble gases(Nitrogen and argon)Preventing Oxygen to contact with marterial ---Surface finish is clean,bright and precision,which is an excellent starting point for further process,like electro-polishing and mechanical polishing. For more than 12m tubes,this method is much cleaner smoother on both inner and outer surface.
2. Better Mechanical Property
The temperature of furnace can reach more than 1350℃,and the tolerance for setting and real temperature can be controlled whithin +/-2℃,which is impossible for the traditional annealing.
3. Perfect Inspection Method And Inspection Equipment
100%PMI test
100%Hydraulic test
100%Inner cleaned by sponge
100%Dimension test
100%Surface test
Quality of precision drawn tubing is same to precision rolling.
4. More Precision Dimension
Advanced cold drawn technology from Japan and Korean,Making the close dimension controls.
