Condenser Heat Exchanger Sa210 Special Steel Pipe

Minimum Order Quantity : 1 Ton Price : USD 1500-1800 Ton
Packaging Details : Packing in wooden boxes Delivery Time : 30-45 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 10000 Tons/Year
Place of Origin: China Brand Name: TORICH
Certification: ISO Model Number: Al

Detail Information

Product Name: Carbon Based Pipes Al Material Low Finned Tube For Condenser Heat Exchanger Keyword: Condenser Heat Exchanger Tube Finned
Fin Material: Aluminum End Protector: Plain
Brand: TORICH Packing: Wooden Cases
Usage: Exchanger,heater,cooling System
High Light:

sa210 special steel pipe

,

sa210 finned stainless steel tubing

,

iso special steel pipe

Product Description

Carbon Based Pipes Al Material Low Finned Tube for Condenser Heat Exchanger

1.Introduction:

Carbon Based Pipes Al Material Low Finned Tube for Condenser Heat Exchanger

Application Power plant boilers, heating boilers, fin economizers of industrial boilers, heat pipe air preheaters, waste-temperature boilers, and steel, petrochemical, chemical and various industrial boilers
Material of base pipe

Carbon, alloy steel, stainless steel tube
ASTM A106/A53,ASTM/ASME SA210,ASTM A213,ASTM A179/A192

Material of fins Aluminium or copper
Type of base pipe Seamlesss,Welded
Shape of finned tube  Spiral
OD of Base pipes 25mm-168 mm
WT of base pipes 1-10 mm
Height of fins 8mm-20mm
WT of fins 0.8mm-5mm
Pitch of fins 2.0mm-20mm
Length of blank area According to Customer's request.


Material:carbon steel, stainless steel, copper, copper-zinc, copper-nickel, aluminium

Base Tube Diameter of copper low fin tube for heat exchanger: 12.7-25.4mm
Base Tube Wall Thiness 1.65-3.0mm
Fin Thickness is 0.3-0.5mm
Fin pitch 0.9-1.5mm
Fin high 0.9-1.3mm


Feature:
The Maximum heat transfer ratio of low finned tubes will be up 2.5 to 3 times to compare with plain bare tubes and also it can be not only reduced the cost for new equipment or retrofitting of old equipments but also save the size or weight of new equipment from the beginning stage of basic design.

Torich advantage:
1. Selection of superior materials
2. Support of non-standard customized
3. Scientific and reasonable design
4. The service life is long

Application:
Heat exchangers of applications for cooling and heating of liquid and gas,including water,oil,steam and air as well as for condensation,evaporation.Double-pipe heat exchanger condensers,Absorption refrigerator chiller absorbers,Absorption refrigerator chiller evaporators, Falling film evaporators,Absorption refrigerator chiller condensers
Material:carbon steel, stainless steel, copper, copper-zinc, copper-nickel, aluminium

Base Tube Diameter 12.7-25.4mm
Base Tube Wall Thiness 1.65-3.0mm
Fin Thickness is 0.3-0.5mm
Fin pitch 0.9-1.5mm
Fin high 0.9-1.3mm

Low finned tubes Low-finned tube/threaded tube/internally threaded tubeLow-finned threaded copper tube heat exchanger air conditioner copper tube red copper finned tube internal and external thread high-efficiency evaporator tube/Efficient tube /Corrugated Tubes/LHT Low Fin Tubes

Feature:
The Maximum heat transfer ratio of low finned tubes will be up 2.5 to 3 times to compare with plain bare tubes and also it can be not only reduced the cost for new equipment or retrofitting of old equipments but also save the size or weight of new equipment from the beginning stage of basic design.

Torich advantage:
1. Selection of superior materials
2. Support of non-standard customized
3. Scientific and reasonable design
4. The service life is long

Application:
Copper tube fin heat exchanger can be used for cooling and heating of liquid and gas,including water,oil,steam and air as well as for condensation,evaporation.Double-pipe heat exchanger condensers,Absorption refrigerator chiller absorbers,boiler finned tube economizer, Absorption refrigerator chiller evaporators,  Falling film evaporators,Absorption refrigerator chiller condensers

6. QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking.

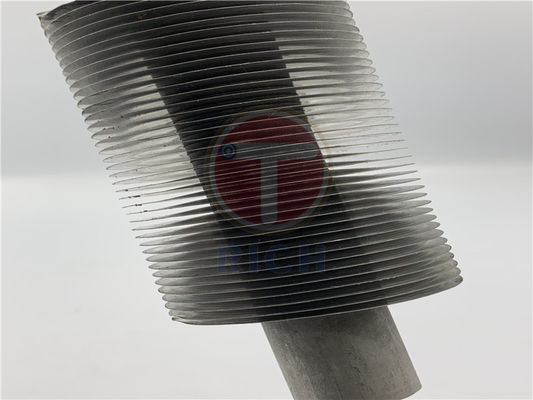

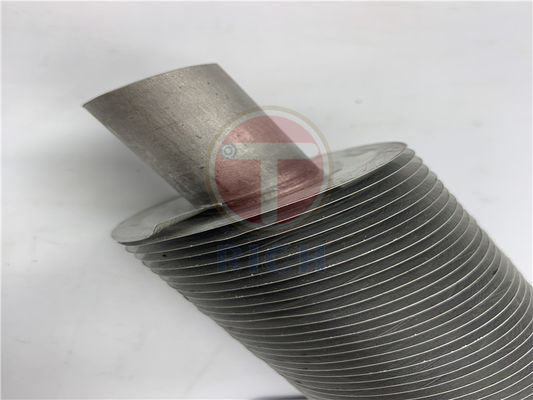

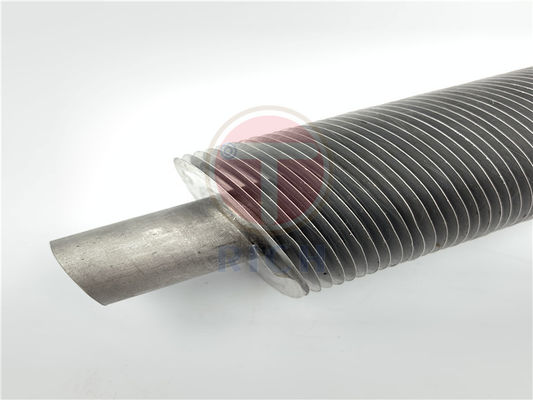

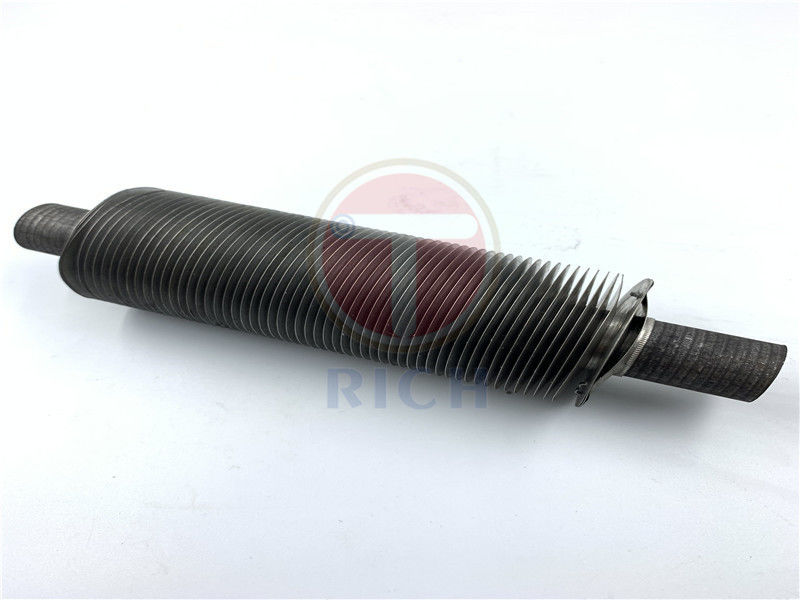

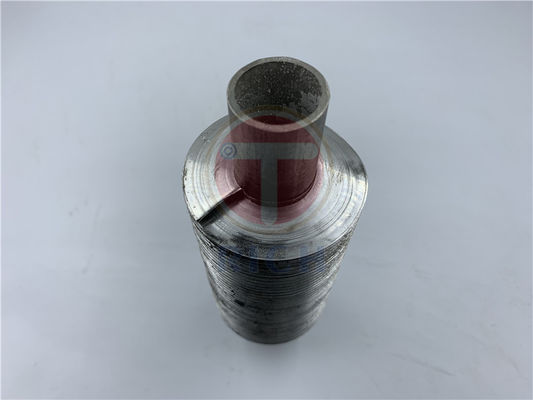

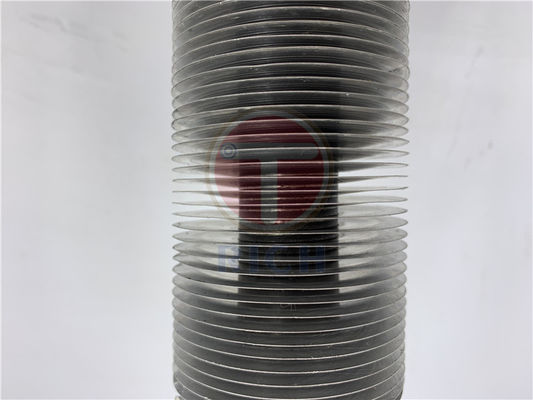

7. Product show:

Condenser Heat Exchanger Sa210 Special Steel Pipe 0Condenser Heat Exchanger Sa210 Special Steel Pipe 1
Condenser Heat Exchanger Sa210 Special Steel Pipe 2Condenser Heat Exchanger Sa210 Special Steel Pipe 3

8. FAQ

How is your production capability?
1.2000 tons monthly production capacity, 5000 tons monthly trading capability
2.Prompt and timely shipment

Do you provide samples of carbon seamless steel tube ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.

Are you trading company or manufacturer ?
A professional steel pipes materials inventor, manufacturer and solution provider
