Sa179 Based TORICH Spiral Finned Tube For Cooling System

Basic Information
Place of Origin: China
Brand Name: TORICH
Certification: ISO
Model Number: Al
Minimum Order Quantity: 1 Ton
Price: USD 1500-1800 Ton
Packaging Details: Packing in wooden boxes
Delivery Time: 30-45 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 Tons/Year
Detail Information
Product Name: SA179 Based Pipes Al Material Spiral Finned Tube For Cooling System Keyword: Aluminum Cooling Tube Finned
Fin Material: Aluminum End Protector: Plain
Brand: TORICH Packing: Wooden Cases
Usage: Exchanger,heater,cooling System
High Light:

torich spiral finned tube

,

sa179 spiral finned tube

,

torich fin and tube heat exchanger


Product Description

SA179 Based Pipes Al Material Spiral Finned Tube for Cooling System

1.Introduction:

SA179 Based Pipes Al Material Spiral Finned Tube for Cooling System

Application Power plant boilers, heating boilers, fin economizers of industrial boilers, heat pipe air preheaters, waste-temperature boilers, and steel, petrochemical, chemical and various industrial boilers
Material of base pipe

Carbon, alloy steel, stainless steel tube

ASTM A106/A53,ASTM/ASME SA210,ASTM A213,ASTM A179/A192

Material of fins Aluminium or copper
Type of base pipe Seamlesss,Welded
Shape of finned tube  Spiral
OD of Base pipes 25mm-168 mm
WT of base pipes 1-10 mm
Height of fins 8mm-20mm
WT of fins 0.8mm-5mm
Pitch of fins 2.0mm-20mm
Length of blank area According to Customer's request.



2. A aluminum cooling tube finned is formed by high frequency welding, the base tube and fin rotating on the official surface by a high-frequency welding process.



3. High-frequency resistance welding spiral finned tube is to introduce high-power high-frequency current into the welded part, and use the resistance heat generated by the current passing through the contact surface of the welded part joint and the adjacent area to make the welding contact surface reach melting or semi-melting plasticity State, and then apply appropriate pressure to the welding contact surface to complete the welding work of the finned tube.



4. Advantage: High production efficiency, good heat transfer performance



5. Package: The aluminum finned tubes are packed in wooden cases.



6. QUALITY CONTROL:

1. Incoming Raw Material Inspection

2. Raw Material Segregation to avoid steel grade mix-up

3. Heating and Hammering End for Cold Drawing

4. Cold Drawing and Cold Rolling, on line inspection

5. Heat Treatment, +A, +SRA, +LC, +N, Q+T

6. Straightening-Cutting to specified length-Finished Measuring Inspection

7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc

8. Packing and Stocking.



100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.

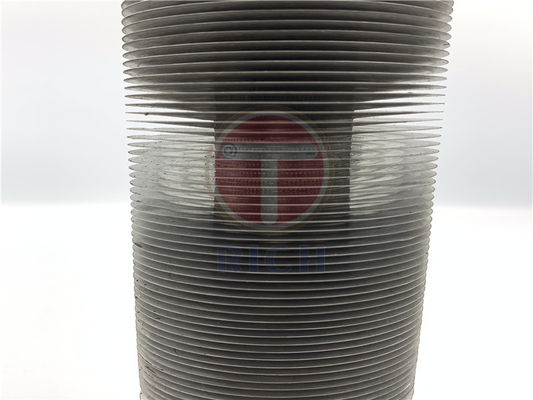

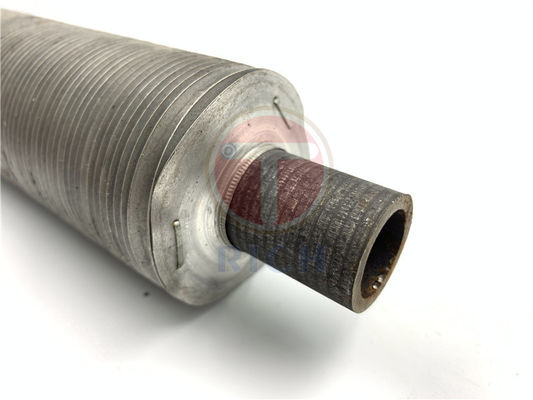

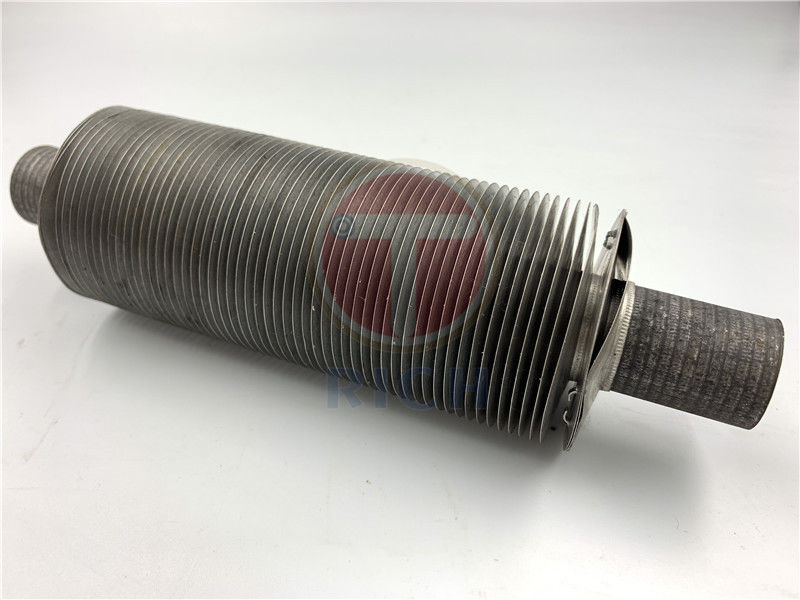

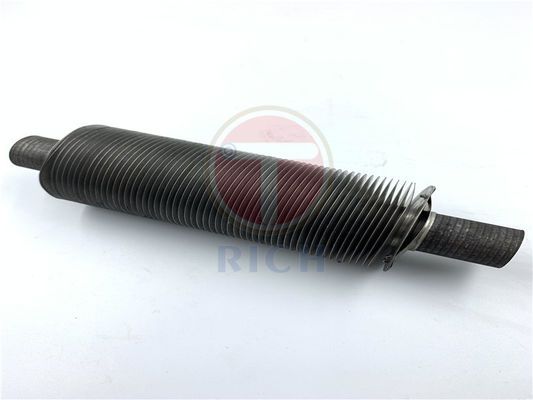

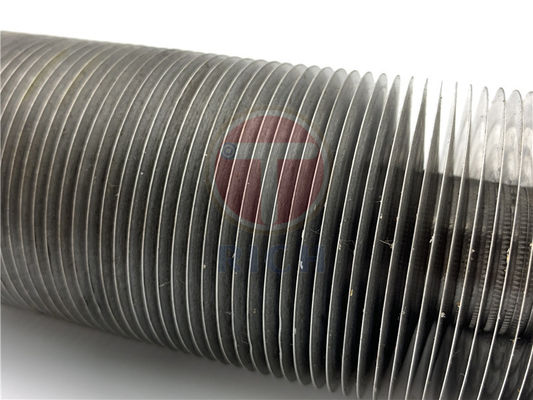

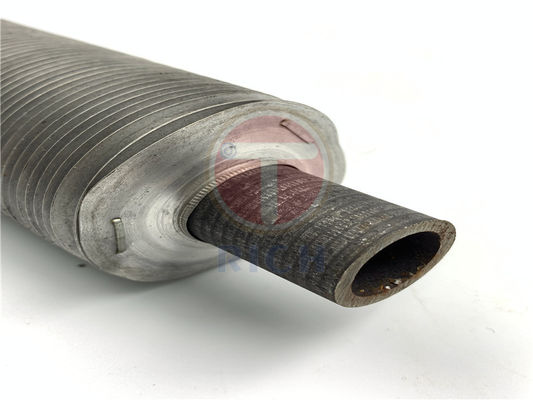

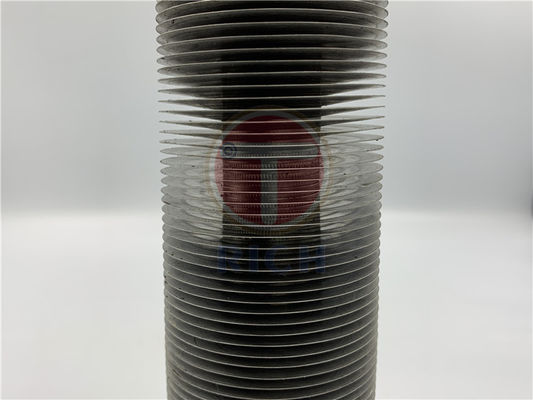

7. Product show:

Sa179 Based TORICH Spiral Finned Tube For Cooling System 0Sa179 Based TORICH Spiral Finned Tube For Cooling System 1Sa179 Based TORICH Spiral Finned Tube For Cooling System 2Sa179 Based TORICH Spiral Finned Tube For Cooling System 3Sa179 Based TORICH Spiral Finned Tube For Cooling System 4



8. FAQ



How is your production capability?

1.2000 tons monthly production capacity, 5000 tons monthly trading capability

2.Prompt and timely shipment



Do you provide samples of carbon seamless steel tube ? is it free or extra ?

Yes, we could offer the sample for free charge but need pay the cost of freight.



Are you trading company or manufacturer ?

A professional steel pipes materials inventor, manufacturer and solution provider
