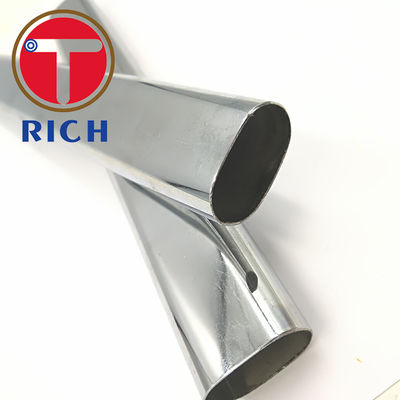

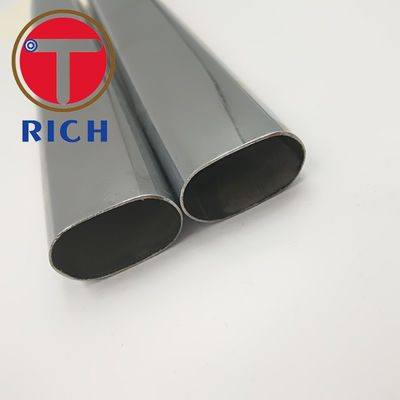

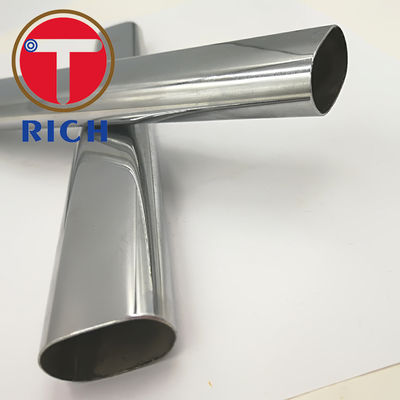

Grade 304 316l Special Shaped 12m Oval Stainless Steel Tubing
Product Details
304 oval stainless steel tubing
,316l oval stainless steel tubing
,12m oval steel pipe
304 316L Special-Shaped Stainless Steel Pipe Oval Steel Tube
The development of special-shaped pipe is mainly the development of product varieties,
including section shape, material and performance. Extrusion, cross die rolling and cold drawing
are effective methods for producing special-shaped pipes.
They are suitable for producing special-shaped pipes with various sections and materials.
In order to produce a wide variety of special-shaped pipes, we must also have a variety of production means.
In the 1990s, on the basis of cold drawing, China developed dozens of production methods such as roll drawing,
extrusion, hydraulic pressure, rotary rolling, spinning, continuous rolling, rotary forging and die-free drawing,
and is constantly improving and creating new equipment and processes.
Chemical composition of 304 Stainless Steel:
| Cr% | Ni% | C% | P% | Si% | Mn% | S% |
| 18-19 | 8-9 | 0.03-0.07 | ≤0.035 | ≤1 | ≤2 | ≤0.03 |
Thickness Tolerance:
less than 2mm, tolerance ± 0.02mm, more than 2mm, tolerance 0.05mm
-
Auto Parts ASTM A513 Cold Rolling Welded Steel Tubes with DOM Production
Auto Parts ASTM A513 Welded Steel Tubes with DOM production ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Applications: for Machinery, Mechanical Engineering 1. Standard: ASTM A513 cold rolling welded precision steel tubes 2. Steel Grade: SAE1010, SAE1020, other materials upon agreement with customers. 3. Production method: Cold rolling on the weled steel tubes, to reach high accuracy on the OD and WT tolerance 4. Size range: O.D.:6-350mm W.T. -
25mm Diameter Bright Annealing Seamless Steel Tube for Hydraulic Systems
EN10305-1 E235 E355 NBK Bright Annealing Precision Steel Pipes for Hydraulic Systems EN10305-1 NBK Bright Annealed Precision steel pipes for Hydraulic system OD:4-80 (mm) WT0.5-10 (mm) Length 1000-12000mm Product name: Seamless Precision Steel Pipe Application: for hydraulic systems precision steel pipes for Hydraulic system OD (mm) WT (mm) Length (mm) 4 0.5 5800-6000 4.0 1.0 5800-6000 5.0 1.0 5800-6000 6.0 1.0 5800-6000 6.0 1.5 5800-6000 8.0 1.0 5800-6000 9.5 0.89 5800-6000 -
Precision Seamless Black Phosphating Steel Tube for Hydraulic Systems
Steel Pipes with high precision for Hydraulic Systems with Black Phosphating surface Black Phosphated Hydraulic Tubes with High Precision and tight tolerance, the tubes are produced by precision cold drawn and cold rolling, then bright annealed in a protected atmosphere, afterwards it is blackphosphated on the surface Production process: DIN series tubes, cold drawn and bright annealed precision seamless steel tube is used as the tube to be phosphated. The phosphorization is -
Precision Seamless Galvanized Steel Tubes DIN2391 EN103052 ST35.0 ST37
Precision Seamless Galvanized Steel Tubes DIN2391 EN103052 ST35.0 ST37 Production Process: Cold rolling by Cold pilger machine and Cold rolling machine,galvanized and zinc plated could be applied. Cold Rolled and Galvanized Steel Tube Production process: DIN highly accurate, cold rolled and bright seamless steel tube is used as the tube to be galvanized. The outer wall of tube is electroplated. The caps are covered at two ends of tube to prevent from the dust. Main Features:
