EN 10305-2 E235 E355 Precision Automotive DOM Tubes
Product Details
Automotive DOM Tubes
,EN 10305-2 DOM Tubes
,E355 Drawn Over Mandrel Tube
EN 10305-2 E235 E355 SSID Precisision DOM automotive tubes
DOM Welded Carbon Steel Pipe EN10305-2 for Hydraulic Steel Tubing E155, E195, E235 E275, E355
Size range: O.D.:6-420mm W.T.:1-50mm L:max12000mm
Applications: for Auto Industry/ Machinery Use/ Oil Cylinder Tube/ Motorcycle Shock Absorber/
Auto Shock Absorber/ Inner Cylinder/ Telescopic Cylinders/ Jack Lifting System/ Hydraulic Cylinders
Appearance:

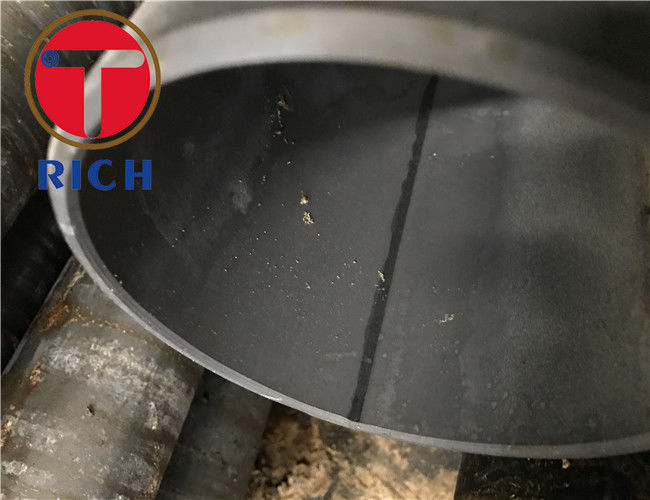

The internal and external surface finish of the tubes is smooth, while the Weld Seam is somehow not visible or tangible.
The ID surface with roughness Ra≤4μm, the best ID smoothness we could reach Ra≤0.8μm
The inner surface can be measured and reported if this is requested by the purchaser before PO.
Supplying Steel Grade:
E155, E195, E235 E275, E355
Delivery Condition:
+C, +Lc, + SR, +A, +N
Steel Grade and Chemical Compositions:
| Steel Grade | C | Si | Mn | P | S | |
| Steel Name | Steel Number | max | max | max | max | max |
| E155 | 1.0033 | 0.11 | 0.35 | 0.70 | 0.025 | 0.025 |
| E195 | 1.0034 | 0.15 | 0.35 | 0.70 | 0.025 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 |
| E275 | 1.0225 | 0.21 | 0.35 | 1.40 | 0.025 | 0.025 |
| E355 | 1.0580 | 0.22 | 0.35 | 1.60 | 0.025 | 0.025 |
Note: Special steel grade is also available, according to customer request.
Relate Information:
Quality Inspection standard and Normative references:
EN10002-1, Metallic materials- Tensile testing- Part 1: Method of test at ambient temperature
EN10020, Definition and classification of grades of steel
EN10021, General technical delivery requirements for steel and iron products.
EN10027-1, Designation systems for steel - Part 1: Steel names, principal symbols.
EN10027-2, Designation systems for stee l- Part 2: Numerical system
EN10052, Vocabulary of heat treatment terms for ferrous products
EN10204, Metallic Products - Types of inspection documents
EN10233, Metallic materials - Tube - Flattening test
EN10234, Metallic materials - Tube - Drift expanding test
EN10246-1, Non-Destructive testing of steel tubes - Part 1: Automatic electromagnetic testing of seamless and welded(except submerged arc-welded) ferromagnetic steel tubes for verification of hydraulic leak-tightness
EN10246-3, Non-Destructive testing of steel tubes - Part 3: Automatic eddy current testing of seamless and welded ( except submerged arc-welded) steel tubes for the detection of imperfections
EN10246-5, Non-Destructive testing of steel tubes - Part 5: Automatic full peripheral magnetic transducer /flux leakage testing of seamless and welded (except submerged arc-welded) ferromagnetic steel tubes for the detection of longtitudinal imperfections
EN10246-7, Non-Destructive testing of steel tubes - Part 7: Automatic full peripheral ultrasonic testing of seamless and welded (except submerged arc-welded) steel tubes for the detection of longitudinal imperfections.
EN10256, Non-Destructive testing of steel tubes - Qualification and competence of level 1 and 2 non-destructive testing personnel
EN ISO377, Steel and steel products - Location and preparation of samples and test pieces for mechanical testing ( ISO 377:1997)
EN ISO 2566-1, Steel - Conversion of elongation values - Part 1: Carbon and low alloy steels ( ISO2566-1:1984)
ENV10220, Seamless and welded steel tubes - Dimension and masses per unit length.
EN10266, Steel Tubes, fittings and structural hollow sections - Definition and Symbols for use in products standards
-
