EN10305-1 E215 E235 E355 Galvanized High Precision Steel Tube
Product Details
EN10305-1 High Precision Steel Tube
,Galvanized High Precision Steel Tube
,E215 Galvanized Steel Tube

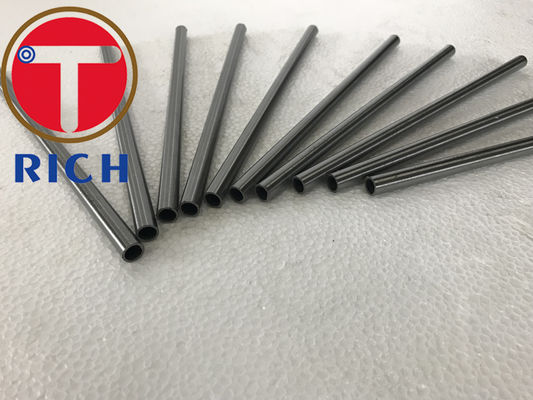

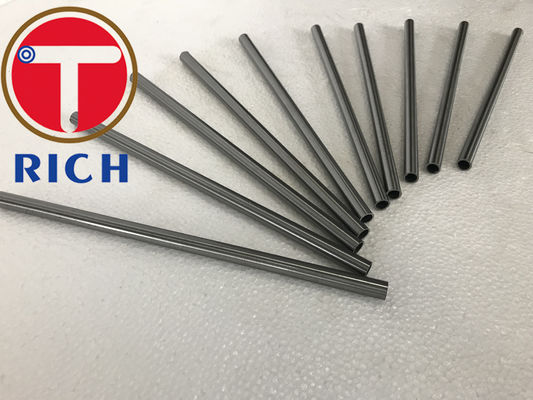

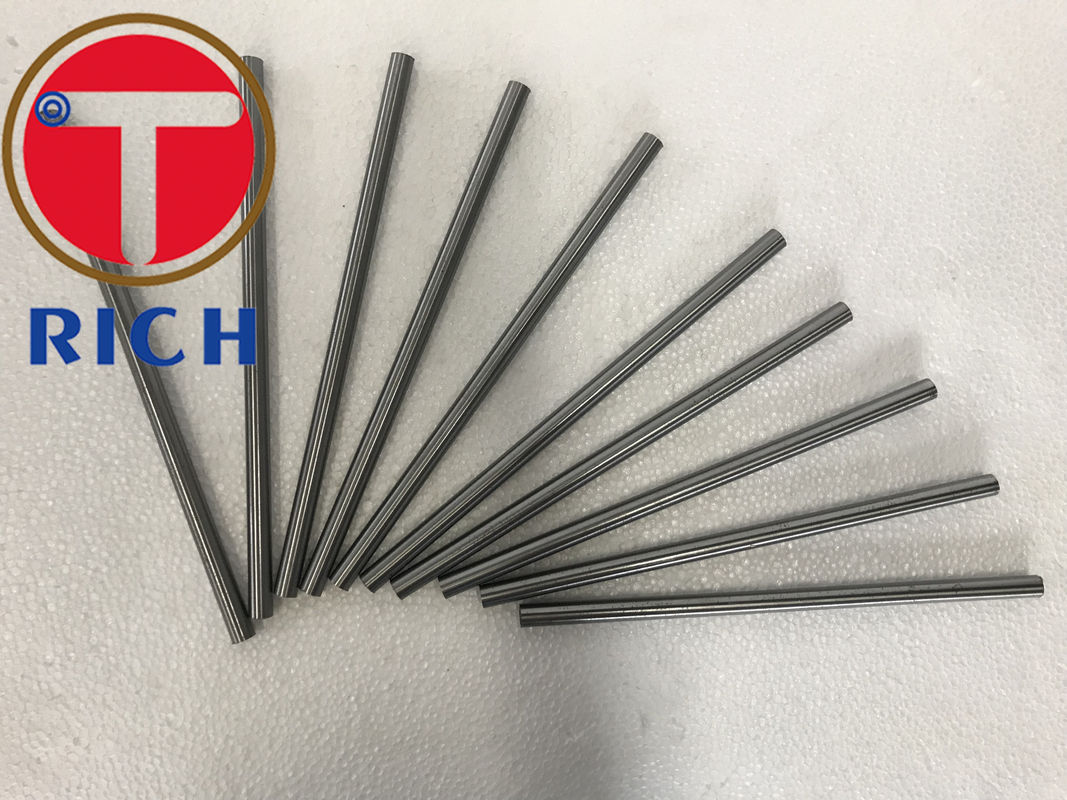

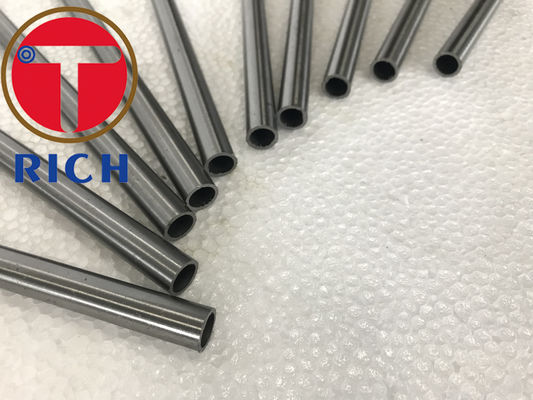

TORICH EN10305-1 E215 E235 E355 High Precision Steel Tube Galvanized Surface
Production process:
DIN series tubes, cold drawn and bright annealed precision seamless steel tube is used as the tube to be galvanized.
The outer wall of tube is electroplated.
The caps are covered at two ends of tube to prevent it from dust.
Main Features:
White galvanized, color galvanized (yellow galvanized),olive green.
After galvanization, the outer wall of tube has good brightness, good property for antirust and anticorrosion.
Main Application:
Auto parts industry,
In the occasion where the requirement for precision, Surface finish, antirust and anticorrosion of outer wall is relatively high.
| Steel Grade | C | Si | Mn | P | S | Al | |
| Name | Number | max | max | max | max | max | max |
| E215 | 1.0212 | 0.1 | 0.05 | 0.7 | 0.025 | 0.015 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.2 | 0.025 | 0.015 | - |
| E355 | 1.0580 | 0.22 | 0.55 | 1.6 | 0.025 | 0.015 | - |
| Steel Grade | Yield Strength | Tensile Strength | Elongation | |
| Name | Number | Min Mpa | Min Mpa | % |
| E215 | 1.0212 | 215 | 290-430 | 30 |
| E235 | 1.0308 | 235 | 340-480 | 25 |
| E355 | 1.0580 | 355 | 490-630 | 22 |
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in Steel Tube products. And we trade our products with our clients directly.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable.
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.
Q: What’s your MOQ?
A: If we have the products in stock, it will be no MOQ.
If we need to produce, we can discuss the MOQ according to customer’s exact situation.
-
