Galvanized Gas Resistant Plastic Coated Q235 Steel Pipe

Minimum Order Quantity : 10 tons Price : $1450-1550
Packaging Details : Seaworthy Packing Delivery Time : 25-30work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 50 tons
Place of Origin: China Brand Name: Torich
Certification: CE,ISO Model Number: Q235

Detail Information

Name: Galvanized Gas Resistance Plastic Coated Steel Pipe Grade: Q235
Usage: Gas Resistance Type: Carbon
High Light:

Gas Resistant Q235 Steel Pipe

,

Galvanized Q235 Steel Pipe

,

Plastic Coated Q235 Steel Tube

Product Description

TORICH Outdoor Durability Gas Resistance Plastic Coated Steel Pipe



Name  Galvanized Gas Resistance Plastic Coated Steel Pipe
Application  Gas Resistance
Material  Q235
Performance Good outdoor durability
Anti-yellowing properties
Good storage stability

Excellent overall performance.



Large diameter plastic coated steel pipe:

Large-caliber plastic-coated steel pipe is an upgraded version of traditional steel-plastic pipe and galvanized pipe with high cost performance. It has the comprehensive characteristics of high strength, high extensibility, good low temperature brittleness, small expansion coefficient of steel pipe, and plastic pipe corrosion resistance, abrasion resistance, and low fluid resistance. It is a new type of water supply and drainage, anti-corrosion green Large-caliber pipes are being used more and more widely in various domestic industries.

At present, the domestic largest diameter polyethylene plastic-coated pipe has exceeded 3200mm, and the specifications above 2200mm are coated with solvent-free epoxy. It is widely used in seawater treatment, quicksand engineering, ocean engineering, chemical sewage disposal and other projects. It has the advantages of high strength, good toughness, anti-aging, corrosion resistance, long service life, and good combination with insulation layer.



Plastic coated steel pipe for gas:

Its production process: After the base pipe is bought back, it must be pickled to remove the rust and oxide layer, phosphating, drying, sandblasting, purification, and then electrostatic spraying to achieve uniform spraying on the inner and outer walls of the metal pipe, and curing at high temperature to The plastic powder is firmly coated on the surface of the steel pipe, and the inspection is carried out according to the standard and an inspection report is provided. Both epoxy and polyethylene have excellent leveling properties, heat resistance and mechanical properties, as well as good outdoor durability, anti-yellowing properties, good storage stability, and excellent overall performance.



Plastic coated steel pipe for water supply and drainage:

Technical Description

Piping type: inner and outer plastic coated, inner plastic coated and galvanized outer coating material: epoxy resin, polyethylene

Product color: red, white, blue and gray (colors can be selected according to customer requirements) Processing technology: hot dipping, high-voltage electrostatic spraying, rotomolding, overmolding Pipe specifications: DN15-DN2200 (up to 3200 can be processed) execution Standard: CJ/T120-2008 Water supply plastic-coated composite steel pipe Safety performance: All composite GB/T17219 standard impact strength: ≥55kg Gel time: ≤120 (200℃)

Connection method: clamps, flanges and threads, buried in the ground can be welded with bimetal or connected without damage



QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking

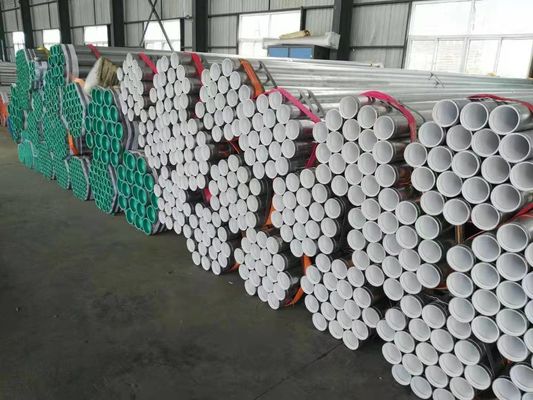

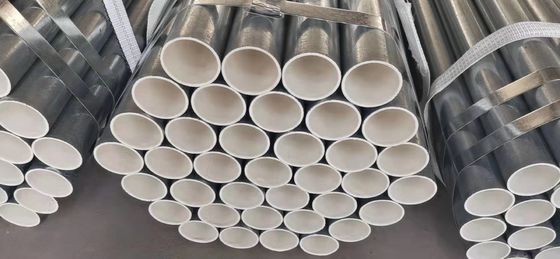

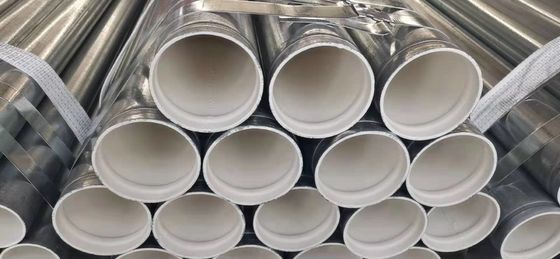

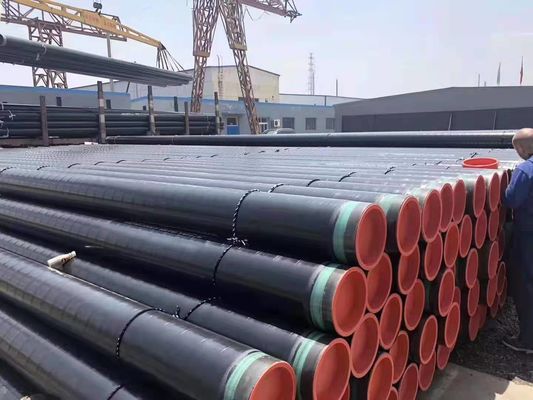

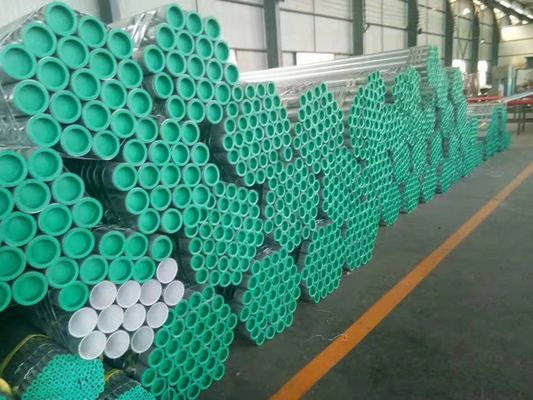

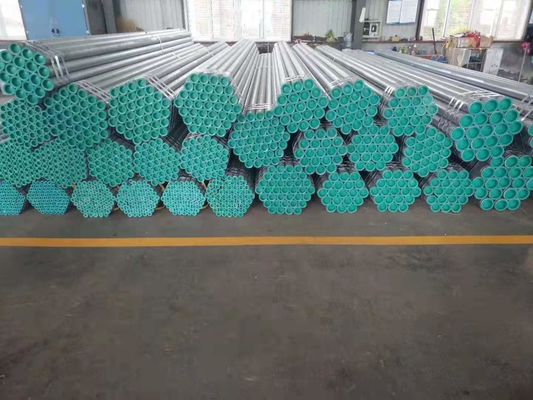

Product show:



Galvanized Gas Resistant Plastic Coated Q235 Steel Pipe 0Galvanized Gas Resistant Plastic Coated Q235 Steel Pipe 1Galvanized Gas Resistant Plastic Coated Q235 Steel Pipe 2Galvanized Gas Resistant Plastic Coated Q235 Steel Pipe 3Galvanized Gas Resistant Plastic Coated Q235 Steel Pipe 4







Q&A

Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.



Q: Do you have agent or distributor in our country?
A: We are recruiting area agent and distributor all over the world, welcome to send us your mail or call us for detail discussion.



Q: How is your production capability?
A: 1. 2000 tons monthly production capacity, 5000 tons monthly trading capability
2. Prompt and Timely shipment

Q: How to get the sample?
A: 1. You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2. Sample charges will be refunded when order is placed.


QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
