JIS G3314 SA1D 5 Inch Welded Steel Tubes Aluminized

Minimum Order Quantity : 10 tons Price : 900-1200 usd per ton
Packaging Details : JIS G3314 SA1D 5 Inch Welded Aluminized Steel Tubes,packing in standard marine package Delivery Time : 20-45 days
Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram Supply Ability : 50000 tons per year
Place of Origin: Zhejiang,China Brand Name: TORICH
Certification: ISO 9001 ISO 14001 TS16949 Model Number: JIS G3314

Detail Information

Product Name: JIS G3314 SA1D 5 Inch Welded Aluminized Steel Tubes Keyword: Aluminized Steel Tubes
Application: For Exhaust System Type: ERW/HFW
Shape: Round Material: 1010,1020,1045,SPHC,SPCC,4130
Length: Max12000mm OD: 5-420mm
WT: 0.5-50mm Brand: TORICH
High Light:

SA1D Welded Steel Tube

,

Aluminized Welded Steel Tube

,

JIS G3314 Welded Steel Tube

Product Description

JIS G3314 SA1D 5 Inch Welded Aluminized Steel Tubes

ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing

Size : O.D.:6-350mm W.T.:1-12.5mm L:max12000mm

Grade: 1008,1010, 1020, 1026

Production: ERW + DOM

Steel Grade and Chemical Compositions:
Steel Grade C Mn P S Si Cr Mo
max   max max max min
1008 0.10 0.5 0.035 0.035
1010 0.08-0.13 0.30-0.60 0.035 0.035
1018 0.14-0.20 0.30-0.60 0.035 0.035
1020 0.17-0.23 0.30-0.60 0.035 0.035
1026 0.22-0.28 0.60-0.90 0.035 0.035
1035 0.31-0.38 0.60-0.90 0.035 0.035
4130 0.28-0.33 0.40-0.60 0.035 0.035 0.15-0.35 0.80-1.10 0.08-0.25
4140 0.38-0.43 0.75-1.00 0.035 0.035 0.15-0.35 0.80-1.10 0.15-0.25



Packing:

In Hexagonal Bundles, with anti corrosion oil protection, with seaworthy packing

Deliver condition:

1. A.W.H.R. "as welded" from hot-rolled steel

2. A.W.C.R. "as welded" from cold-rolled steel

3. S.D.C.R. "sink-drawn", cold-rolled steel

5. M.D. mandrel drawn

6. S.S.I.D. special smooth inside diameter

Please specify the delivery condition when sending the enquiry!

Thermal condition:

1. No final thermal treatment

2. Stress relieved

3. Annealed

4. Normalized

Applications: for Machinery, Mechanical Engineer, Automotive Parts,Agricultural.

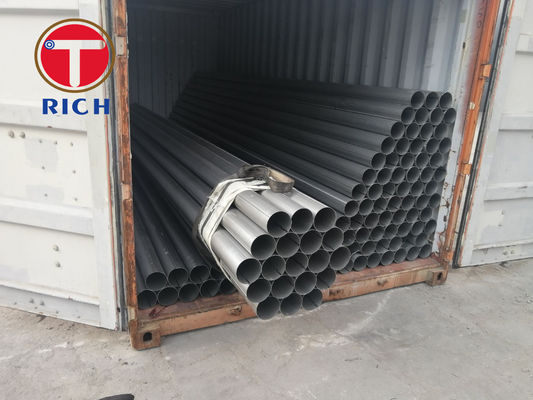

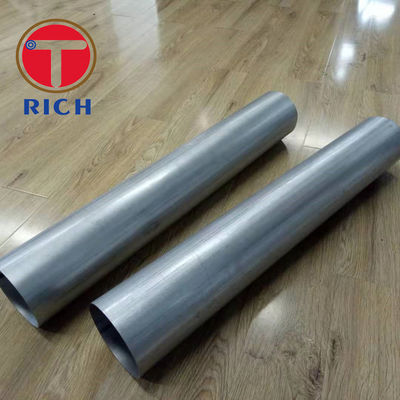

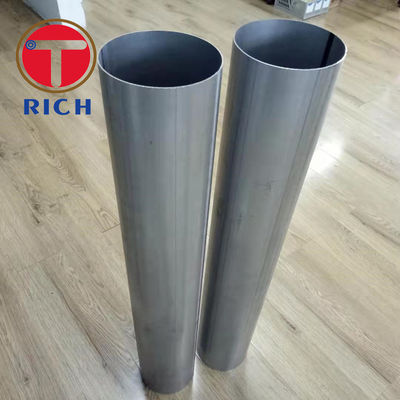

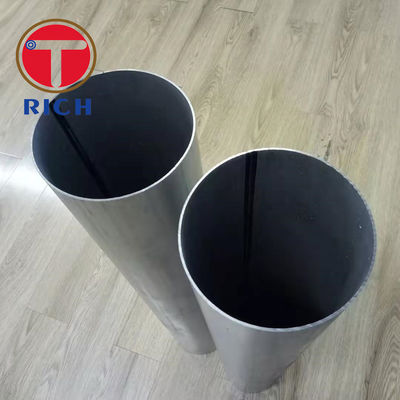

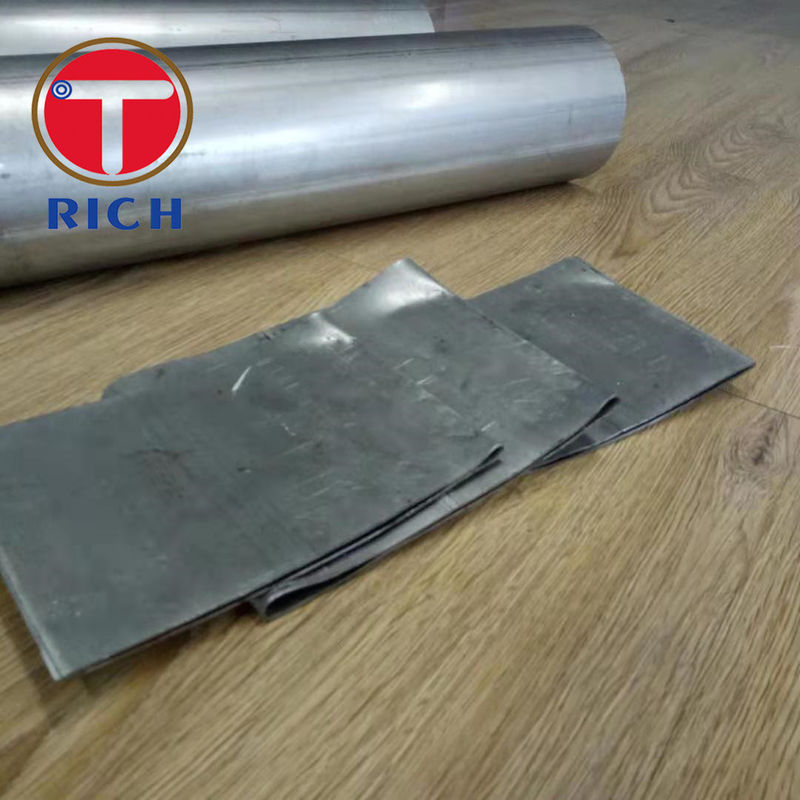

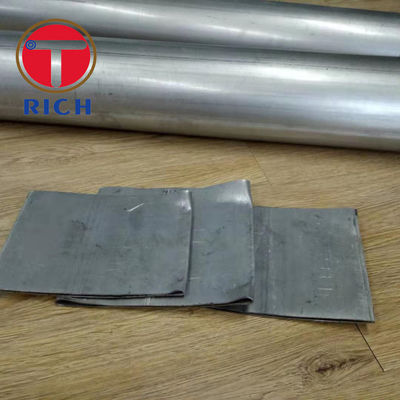

Product pictures

JIS G3314 SA1D 5 Inch Welded Steel Tubes Aluminized 0JIS G3314 SA1D 5 Inch Welded Steel Tubes Aluminized 1



OD127mm*WT1.5mm ERW Steel Tubes with Erased Seam for Heavy Truck Exhaust System
