TORICH BKS Shock Absorber Hydraulic Cylinder Tube ST52 E355 Material
Product Details
BKS Shock Absorber Honed Tube
,E355 Hydraulic Cylinder Tube
,EN10305-1 Hydraulic Cylinder Tube

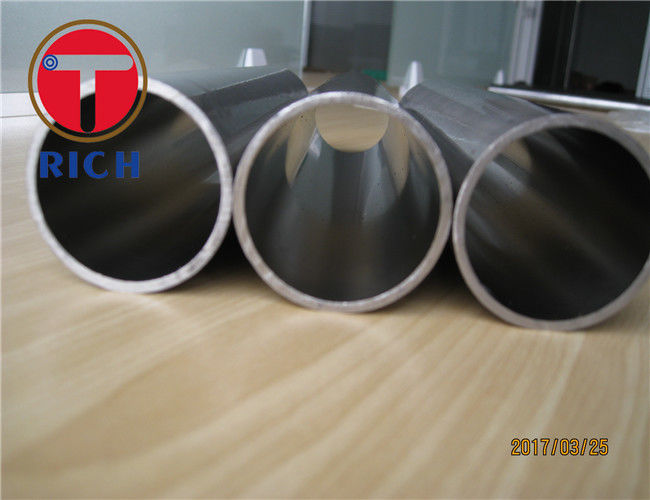

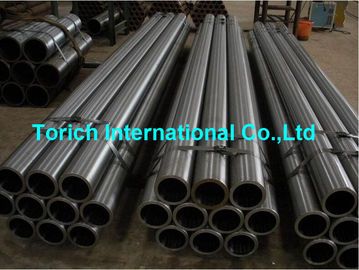

TORICH ST52 E355 BKS Shock Absorber Using CK45 AISI1020 AISI1045 CDS Honed Tube
ST52 E355 BKS Shock Absorber Using CK45 AISI1020 AISI1045 CDS Honed Tube
Delivery condition:
The tubes can be produced in the following delivery conditions:
BK (+C) Cold finished/hard (cold finished as drawn).
No heat treatment after the last cold forming process.
BKW (+LC) Cold finished/soft (lightly cold worked)
After the last heat treatment there is a light finishing pass (cold drawing).
BKS (+SR) Cold finished/stress relieve annealed.
After the final cold forming process the tubes are stress relieve annealed.
GBK (+A) Annealed.
After the final cold forming process the tubes are annealed in a controlled atmosphere.
NBK (+N) Normalized. (Mainly focus on)
After the final cold forming process the tubes are annealed above the upper transformation point in a controlled atmosphere
The features of precision tube:
1. exact diameter than seamless pipe
2. High precision of carbon tube can be done with tolerance H9, H10
3. Cold finished makes high precision, good roughness, and nice quality
4. Honed tube or SRB tube can be used for hydraulic cylinder directly
5. High mechanical property better than seamless pipe
What we can provide are honed seamless tube pipe, honed tube pipe, seamless pipe, carbon tube, cold drawn tube, cold rolled tube, hydraulic cylinder tube, honed tube......
seamless tube, honed tube, hydraulic tube, carbon steel pipe, cold drawn pipe, cold rolled pipe, and so on.
1.Seamless steel tube and carbon tube, seamless pipe
Widely used in the hydraulic cylinder of the heavy machinery, Cranes, excavator also forklifts. Material is various, mainly STKM-13CT, ST52, CK45 and AISI 1020. We can also offer as customized seamless steel tube.
2.cold drawn steel tube/cold rolled steel tube, cold drawn pipe, cold rolled pipe, cold drawn tube, cold rolled tube
Grade: 20# 45# 16Mn 25Mn 27SiMn E355 ST52 STKM11A STKM13A ST52 S45C CK45
Standard: GB/T8713 GB/T3639 DIN2391 EN10305 ASTMA519
Range: 30-300mm
Length: 11m(max)
The cold process can change the thickness of tube to meet client's request and offer better mechanical property.

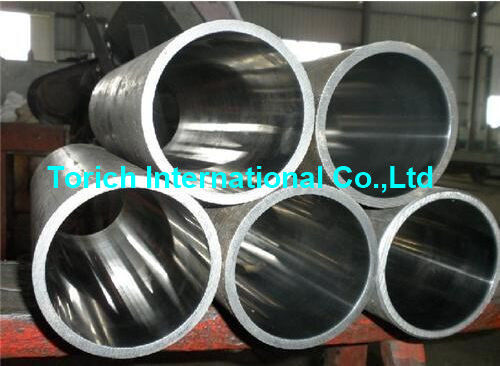

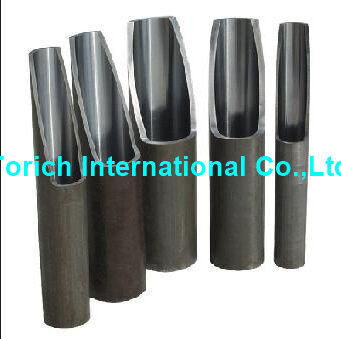

3. Honed steel tube&SRB steel pipe, honed tube, honed tubes, honed steel pipe, honed pipe
ID Tolerance: H8 H9
ID Roughness: RA0.4micron(max)
Length: 6m(max)
Inner roughness: Ra0.2-0.8um
Straightness: 1:1000 or customized
FAQ:
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
-
