DIN17456 Medical Capillary Stainless Steel Tube Bright Annealing

Minimum Order Quantity : 50 KG Price : negotiable
Packaging Details : Tubes are packed in wooden boxes or hexagonal bundles in seaworthy packing. Delivery Time : 30-45 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 2000Tons per Year
Place of Origin: ZHEJIANG, CHINA Brand Name: TORICH
Certification: ISO9001, ISO14001, TS16949 Model Number: AISI DIN

Detail Information

Keyword: Medical Capillary Tube Material: 304/304L/316/316L/310/310S Etc
Surface: 180G, 320G, 400G Satin / Hairline Shape: Round Shape
Length: Customized WT: 0.08mm - 2mm
OD: 0.5mm--8mm Usage: Medical Chemical Tube
High Light:

Bright Annealing Stainless Steel Tube

,

Medical Capillary Stainless Steel Tube

,

DIN17456 Stainless Steel Tube

Product Description

TORICH AISI DIN Small Diameter Stainless Steel Micro Medical Capillary Tube

Size: OD: 0.5mm--8mm WT: 0.08mm - 2mm Length: According to Customer's Requirement



Tolerance: Outer Diameter: +/- 0.2mm
                  Thickness: +/- 0.02mm
                   Length: +/- 5mm



Surface Finish:180G, 320G, 400G Satin / Hairline, 400G, 500G, 600G or 800G Mirror finish



Application:



1. General service, 2. Curatorial Industry, 3. Food Industry , 4. Ornamental, 5. Aerospace Industry
6. Petrochemical , 7. Fluid transport, 8. Nuclear Industry, 9. Boiler heat- exchanger, 10. Oil and gas service



Commodity name

Small diameter bright annealing welded stainless steel capillary tube
Process method Welded
Stainless steel grades TP304/304L, TP310/S,TP316/316L, TP317L, TP321, TP347/H S31803/2205, 904L
Standard ASTM A213, A312, A511, A270, A269, A789, A790, DIN17456, DIN17458, JIS G3463
Testing

Chemical Analysis.
Hydrostatic or Nondestructive Electric Test,
Intergranular Corrosion Test,
Flaring Test,
Flattening Test,
Flange Test,
Grain Size Test

Air Under water Testing

Ultrasonic Testing

Eddy Current Testing

tube surface Bright annealing
Packing bundle, plywood case, both end with caps,seaworthy packing.


Product Show

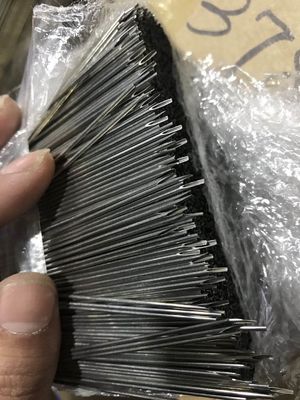

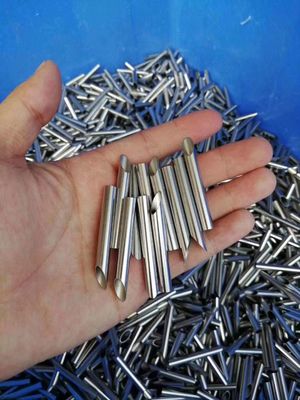

DIN17456 Medical Capillary Stainless Steel Tube Bright Annealing 0       DIN17456 Medical Capillary Stainless Steel Tube Bright Annealing 1

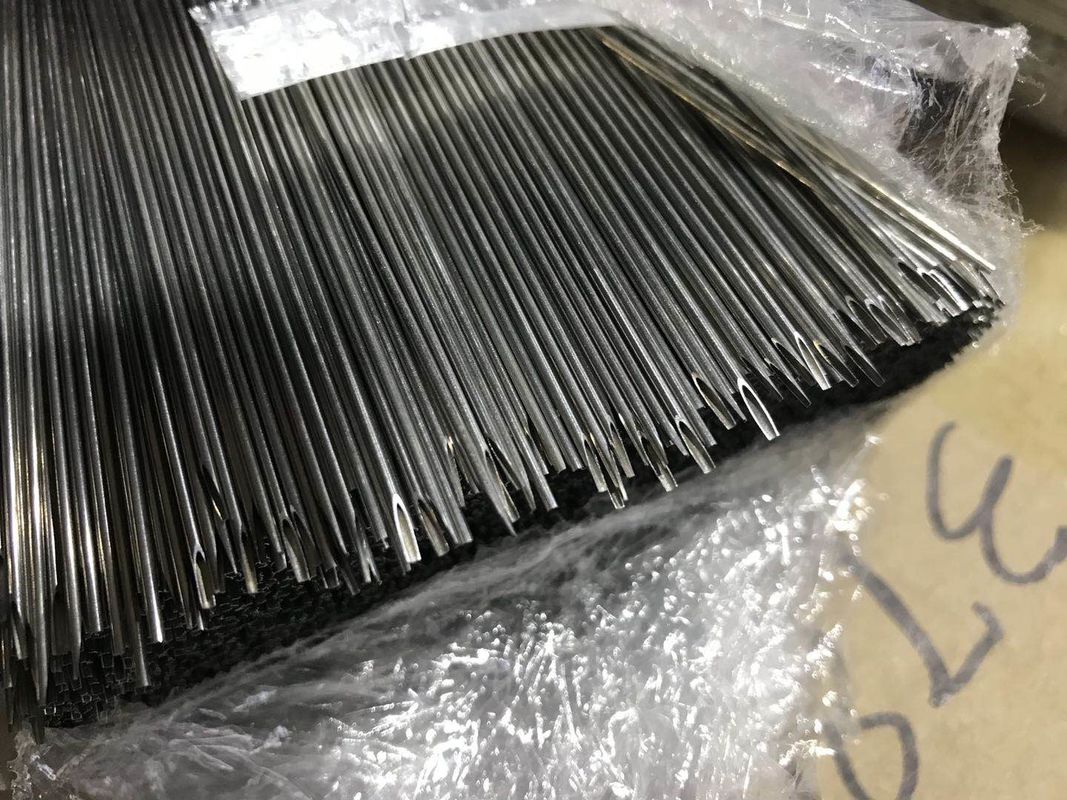

DIN17456 Medical Capillary Stainless Steel Tube Bright Annealing 2



FAQ

Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
