ASTM A179 Longitudinal Finned Heat Exchanger Tubes Annealed
Basic Properties
Place of Origin:
ZHEJIANG, CHINA
Brand Name:
TORICH
Certification:
ISO9001, ISO14001, TS16949
Model Number:
ASTM A179
Trading Properties
Minimum Order Quantity:
5Tons
Price:
negotiable
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
2000Tons per Year
Product Summary
TORICH ASTM A179 Longitudinal Finned Heat Exchanger and Superheater Tube Based Tube: ASTM A179 A192 A213 T5 T9 T11 Fin Type: Longitudinal Fins Other Fin Types: According to the fin shape and structure Square finned tube, Sprial finned tube, Longitudinal finned tube, Helical serrated finned tube, ...
Product Details
Highlight:
Longitudinal Aluminum Finned Tube
,Annealed Heat Exchanger Tubes
,Finned Heat Exchanger Tube
Keyword:
Finned Tube
Standard:
ASTM A179
Material:
SA179 SA192 A106 GrB T5 T9 T11 Etc
Production Method:
Fin Welded
Finish:
Annealed
Length:
2-20m
Fin Material:
Aluminum, Copper Alloy, Stainless Steel, Carbon Steel
Finned:
Longitudinal Fins
Product Description

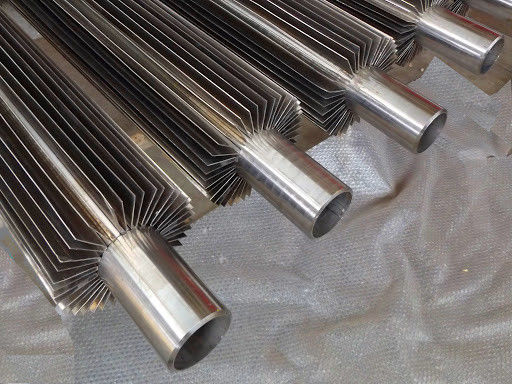

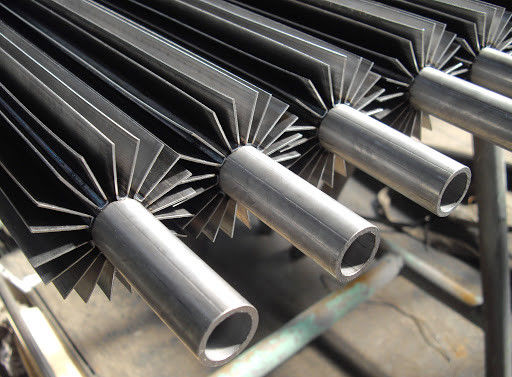

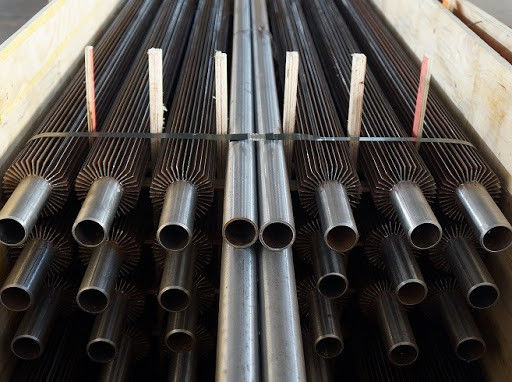

TORICH ASTM A179 Longitudinal Finned Heat Exchanger and Superheater Tube
Based Tube: ASTM A179 A192 A213 T5 T9 T11
Fin Type: Longitudinal Fins
Other Fin Types:
| According to the fin shape and structure | Square finned tube, Sprial finned tube, Longitudinal finned tube, Helical serrated finned tube, Inner finned tube |
| According to the fin material | Single metal finned tube, Bimetal composite finned tube |
| According to the processing technology | Extruded fin tube, welded fin tube, Roll forming fin tube, Set shaped fin tube |
Fin Material: Carbon Steel, Stainless steel, Aluminum, Copper etc
Application: Boiler, Heat Exchanger, Superheater, Economizer
Performance characteristics of Fin Tube:
1) Anti-corrosion
2) Anti-wear
3) lower contact resistance
4) Higher Stability

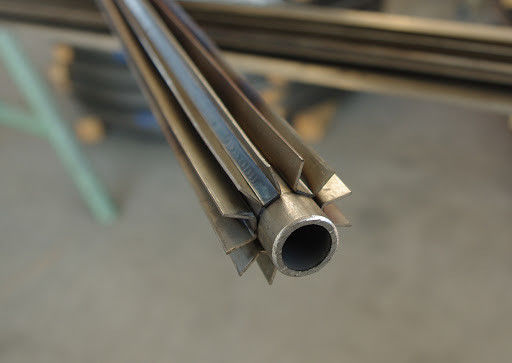

Outer longitudinal finned tube: high frequency welding process and U-shaped stamping fin are adopted.
The tube has the characteristics of tight fitting, firm welding, small contact thermal resistance and no deformation
of the straightness of the finned tube. The fin ratio can reach more than 10.
Applications: In petroleum, chemical and other industries
