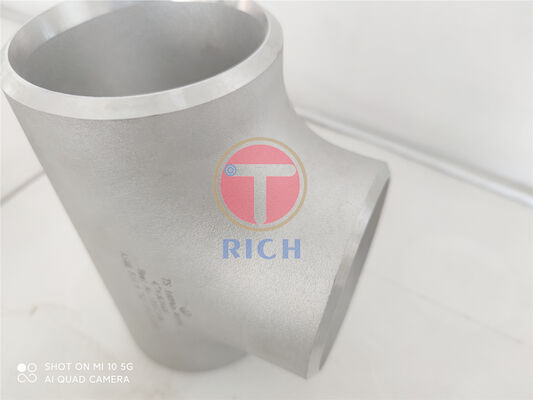

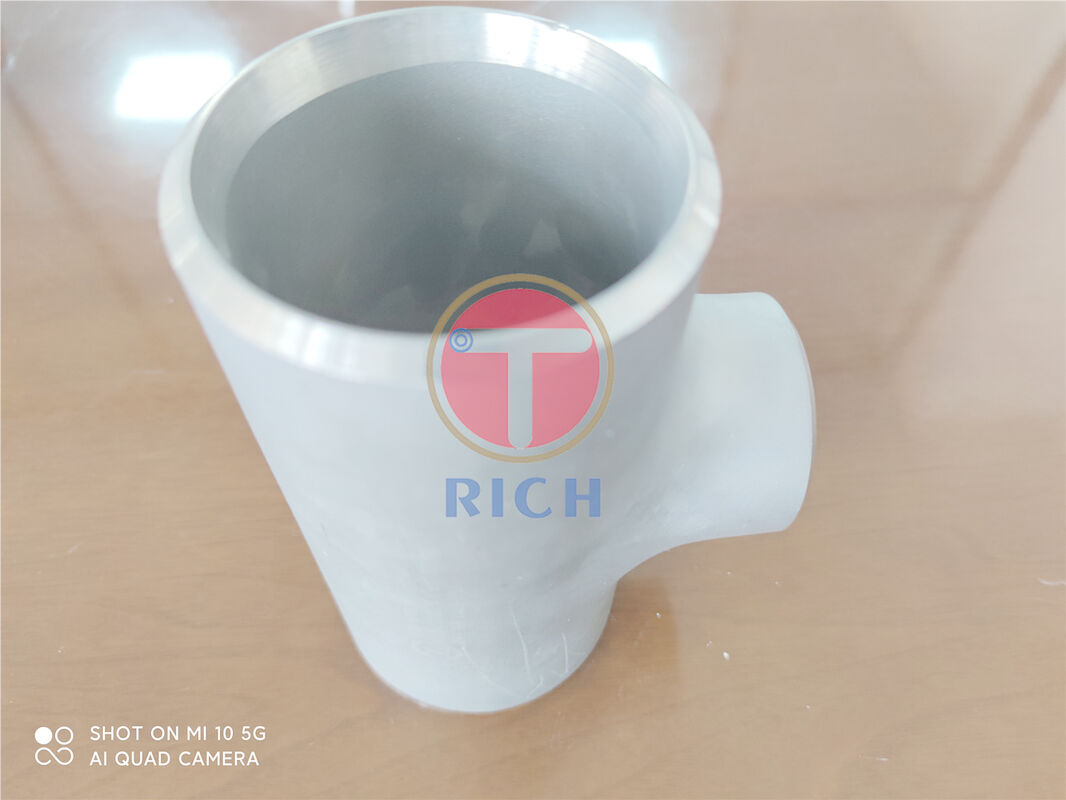

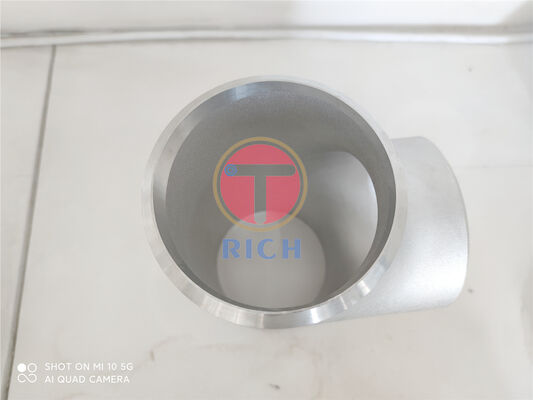

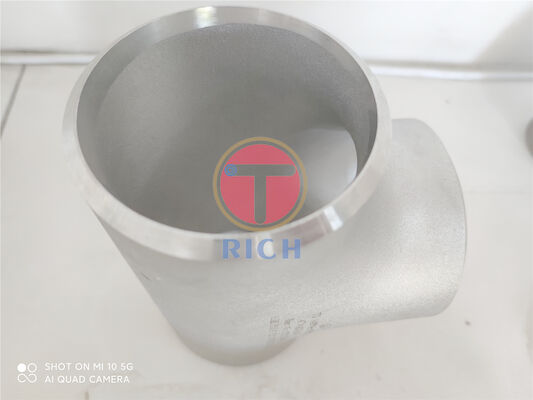

TORICH EN10253-4 Stainless Steel 2205 Equal Tee Pipe Fitting Matte Polished
Product Details
SS 2205 Equal Tee Pipe Fitting
,Matte Polished Equal Tee Pipe Fitting
,EN10253-4 Equal Tee Pipe Fitting
TORICH EN10253-4 Matte Polished Stainless Steel 2205 Equal Tee Pipe Fitting
Type: Equal Tee, Reducing Tee, 45° Lateral Tee, Y Tee, Equal Cross
Raw material: Seamless/Welde Pipe, Steel Sheet, Forging
Material: 317/L; 304/L; 316/L; 310/S; 309/S; 347/H; 321/321/H; 904/L; 2205 etc
Standard: GB/T12459, GB/T13401, GB14383, SH 3408, SH 3409,EN10253-4 EN 10357,
ASME B16.9, DIN2605, DIN2607,JIS2312, JIS2313, MSS SP-43
Producing Process: Extrussion moulding, Pressing, Cold-Working, Machining, Hot-bending, Welded, Heat treatment.
Applications: Petrochemical Plant, Fossil Power Plant, Food Machinery, Gryogenics, Petroleum Refining, Nuclear Power Plant
Size: seamless 1/2''~12'' (DN15-DN600)
welded 1/2''~12'' (DN15~DN1200)
Thickness: SCH5S-SCH160
| DN | NPS | OD | Center to End | Center to Center |
| 25 | 1 | 32 33.4 | 25 | 50 |
| 32 | 1 1/4 | 38 42.2 | 32 | 64 |
| 40 | 1 | 45 48.3 | 38 | 76 |
| 50 | 2 | 57 60.3 | 51 | 102 |
| 65 | 2 1/2 | 76 73 | 64 | 128 |
| 80 | 3 | 89 | 76 | 152 |
| 90 | 3 1/2 | 101.6 | 89 | 178 |
| 100 | 4 | 108 114 | 102 | 204 |
| 125 | 5 | 133 141.3 139.7 | 127 | 254 |
| 150 | 6 | 168.3 159 165 | 152 | 304 |
| 200 | 8 | 219 216 | 203 | 406 |
-
