High Precision Hydraulic Steel Pipe Astm 2mm Thickness
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
Minimum Order Quantity : | 1 Piece | Price : | 5 usd per piece |
---|---|---|---|
Packaging Details : | Plastic Bubble Bags Separately first. | Delivery Time : | 30 days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 60000 piece per month |
Place of Origin: | Zhejiang China | Brand Name: | TORICH |
---|---|---|---|
Certification: | ISO 9001 | Model Number: | ASME B16.9 |
Detail Information |
|||
Brand: | TORICH | Material: | Stainless Steel |
---|---|---|---|
Type: | Elbow | The Material: | SS 316L 304/L 310/S |
MOQ: | 1 Piece | Connection: | Welding |
Standard: | ASME B16.9 | Thickness: | SCH5S-SCH160 |
High Light: | Stainless Steel Polished 45 Degrees Elbow,Welded 45 Degrees Elbow,DIN 2605 45 Degrees Elbow |

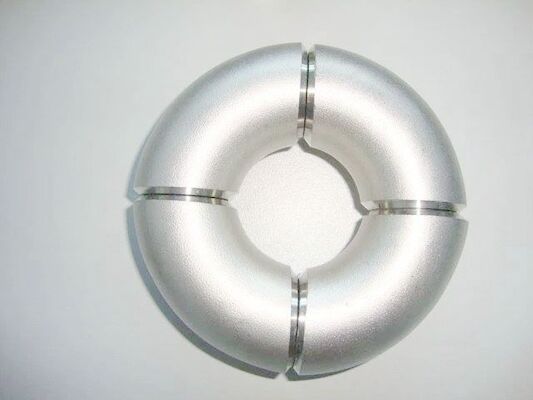

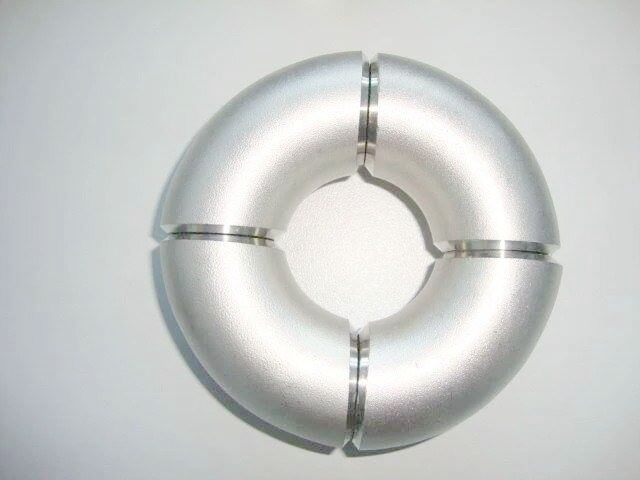

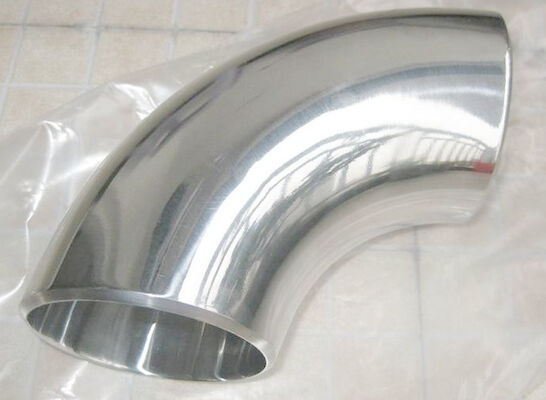

Product Description
Material:
317/L ; 304/L;316/L;310/S;309/S;347/H;321/321/H;904/L
Applications:
Dairy, food, beer, beverage, pharmacy, cosmetic, etc
Size:
seamless 1/2''~24'' (DN15-DN600)
welded 1/2''~48'' (DN15~DN1200)
DN | NPS | OD | Center to End | Center to Center |
15 | 1/2 |
18 21.3 |
38 | 76 |
20 | 3/4 |
25 26.7 |
38 | 76 |
25 | 1 |
32 33.4 |
38 | 76 |
32 | 1 1/4 |
38 42.2 |
48 | 96 |
40 | 1 |
45 48.3 |
57 | 114 |
50 | 2 |
57 60.3 |
76 | 152 |
65 | 2 1/2 |
76 73 |
95 | 190 |
80 | 3 | 89 | 114 | 228 |
90 | 3 1/2 | 101.6 | 133 | 266 |
100 | 4 |
108 114 |
152 | 304 |
125 | 5 |
133 141.3 139.7 |
190 | 380 |
150 | 6 |
168.3 159 165 |
229 | 458 |
200 | 8 |
219 216 |
305 | 610 |
Standard: ASME B16.9 ; DIN2605 ; JIS
Thickness: SCH5S-SCH160
