EN10305-4 Hydraulic Seamless Steel Tube Colorful Galvanized
Product Details
Hydraulic Seamless Steel Tube
,EN10305-4 Seamless Steel Tube
,Colorful Galvanized Seamless Steel Tube
EN10305-4 Colorful Galvanized Hydraulic Seamless Steel Tube
Torich produces colordul galvanized hydraulic seamless steel tubes for over 20 years.
Carbon Steel Seamless Pipes and Hydraulic Steel Tube (Hydraulic Tube) are operations for incorporating in
the automated machinery's piping work for plastic injection molding machines, working servos, construction
equipment, rubber molding machines, papermaking machines, printing machines, refrigeration equipment, foods
and chemical machinery, loading equipment, fiber spinning equipment, agricultural equipment, automotives,
shipbuilding and the like.
Quick detail
| Standard: | EN10305-4(DIN2445/2), EN10305-1(DIN2391), ASTM A179 |
| Steel Grade: | E235 (ST35 ST37.4 ) , E355 (ST52 ST52.4) |
| Size: | OD: 4-120mm, WT: 0.5-10mm, Length:Fixed 6m or as your requirement |
| Surface treatment: | galvanized--this tubes with a zinc coating of 8 to12μm and subsequently |
| Delivery condition: | +N (NBK) normalized under controlled atmosphere |
| Delivery time: | 15-45 days according to the quantity you need and if the goods in stock |

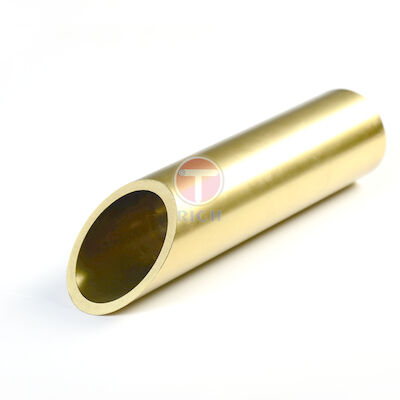

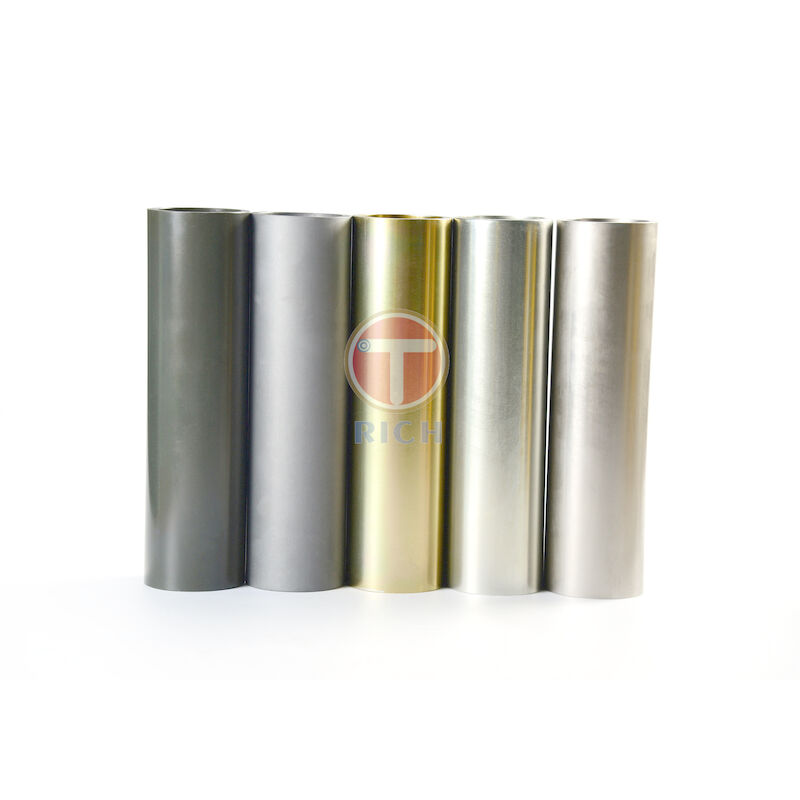

Galvanized hydraulic steel pipes with colorful.
Feature:
1.No any corrosion after 120 hours' salt spray test
2.Cold galvanized (eletrogalvanzing)in bright pipe
3.It will be strong anti-corrosion&rust when passivated in zinc coating
4.Color:White,yellow or colorful
5.High pressure,No leakage.
Material from E215,E235,E355,St 37.4 St 35 E235,E355 etc.
Delivery condition: NBK
Length:3-6m
Packaging: In wooden boxes package.
Tolerance
| Outer Diameter | Allowable tolerance | special tolerance | ||
| GB/T3639 | DIN2391 | OD | WT | |
| 4mm-20mm | ±0.10mm | ±0.08mm | ±0.05mm | ±0.05mm |
| 20mm-30mm | ±0.10mm | ±0.08mm | ±0.08mm | ±0.08mm |
| 31mm-40mm | ±0.15mm | ±0.15mm | ±0.10mm | ±0.08mm |
| 41mm-60mm | ±0.20mm | ±0.20mm | ±0.15mm | ±0.15mm |
| 61mm-80mm | ±0.30mm | ±0.30mm | ±0.20mm | ±0.20mm |
| 81mm-120mm | ±0.45mm | ±0.45mm | ±0.30mm | ±0.30mm |
Delivery condition of cold-drawn precision seamless steel tube:
BK means that the tubes do not undergo heat treatment
BKW means the final heat treatment is followed by cold drawing involving limited deformation
Appropriate further processing allows a certain degree of cold forming
BKS means Heat treatment is applied following the last cold forming process
GBK means the last cold forming process is followed by annealing
NBK means the last cold forming process is followed by annealing above the upper transformation point in a
controlled atmosphere.
Stock Sizes
| OD*WT | OD*WT | OD*WT | OD*WT | OD*WT | OD*WT |
| 4*0.5 | 14*2.0 | 20*2.5 | 28*2.0 | 34*4.0 | 42*4.0 |
| 4*1.0 | 14*2.5 | 20*3.0 | 28*2.5 | 34*4.5 | 42*4.5 |
| 5*1.0 | 14*3.0 | 20*3.5 | 28*3.0 | 34*5.0 | 42*5.0 |
| 6*1.0 | 15*1.0 | 20*4.0 | 28*3.5 | 35*1.5 | 42*6.0 |
| 6*1.5 | 15*1.5 | 22*1.0 | 28*4.0 | 35*2.0 | 45*3.0 |
| 6*2.0 | 15*2.0 | 22*1.5 | 30*1.5 | 35*2.5 | 45*6.0 |
| 8*1.0 | 15*2.5 | 22*2.0 | 30*2.0 | 35*3.0 | 48*3.0 |
| 8*1.5 | 15*3.0 | 22*2.5 | 30*2.5 | 35*3.5 | 48*3.5 |
| 8*2.0 | 16*1.0 | 22*3.0 | 30*3.0 | 35*4.0 | 48*4.0 |
| 8*2.5 | 16*1.5 | 22*3.5 | 30*3.5 | 35*4.5 | 48*5.0 |
| 10*1.0 | 16*2.0 | 22*4.0 | 30*4.0 | 35*5.0 | 50*3.0 |
| 10*1.5 | 16*2.5 | 25*1.5 | 30*5.0 | 38*2.5 | 50*4.0 |
| 10*2.0 | 16*3.0 | 25*2.0 | 32*2.0 | 38*3.0 | 50*5.0 |
| 10*2.5 | 18*1.0 | 25*2.5 | 32*2.5 | 38*3.5 | 50*6.0 |
| 10*3.0 | 18*1.5 | 25*3.0 | 32*3.0 | 38*4.0 | 50*8.0 |
| 12*1.0 | 18*2.0 | 25*3.5 | 32*3.5 | 38*5.0 | 60*3.0 |
| 12*1.5 | 18*2.5 | 25*4.0 | 32*4.0 | 38*6.0 | 60*4.0 |
| 12*2.0 | 18*3.0 | 27*3.0 | 34*2.0 | 40*4.0 | 60*5.0 |
| 12*2.5 | 20*1.0 | 27*3.5 | 34*2.5 | 42*2.0 | 60*6.0 |
| 14*1.0 | 20*1.5 | 27*4.0 | 34*3.0 | 42*3.0 | 60*8.0 |
| 14*1.5 | 20*2.0 | 28*1.5 | 34*3.5 | 42*3.5 | 60*10.0 |
-
