12X1mm DIN2391 ST35 ST45 ST52 Cold Drawn High Precision Tube Seamless Steel Pipe
Product Details
DIN2391 High Precision Seamless Steel Pipe
,Cold Drawn Seamless Steel Pipe
,ST35 Seamless Steel Pipe

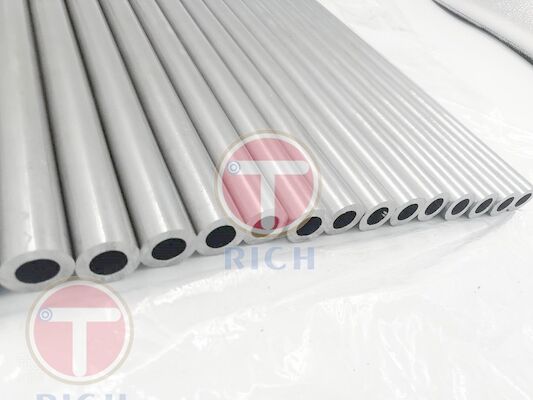

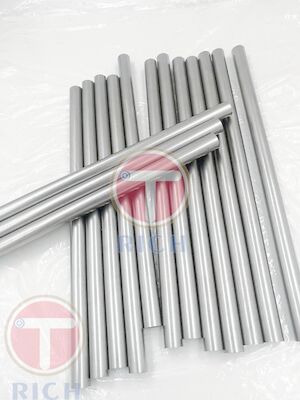

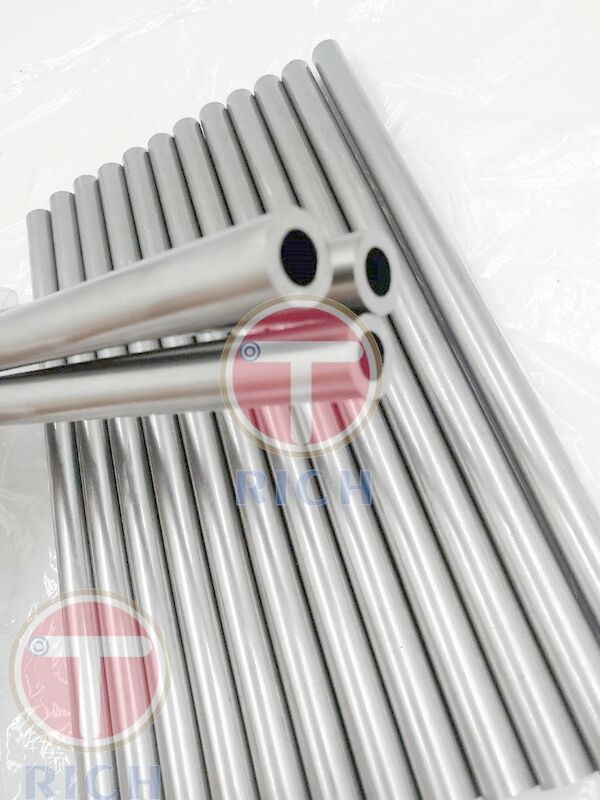

DIN2391 ST35 ST45 ST52 Cold Drawn High Precision Tube Seamless Steel Pipe
Torich is a professional manufacturer of DIN 2391 seamless preceision steel tubes, with material St35,St45,St 52 etc
Production routing:
Quality carbon steel from bao steel etc big mill, cold drawing the heat treatment without oxidization , NBK condition. Do nondestructive testing ,HT tests and do dipping oil antirust protection, Packed tube in wooden boxes.
Main feature:
High precision
Excellent brightness
No oxidization on outer and inner walls after heat treatment
High cleanness of inside wall
High pressure
No deformation after clod bending
No crack after flaring and flattening
Color : Gray with white
Chemical composition of ST35 ST45 ST52 Seamless Steel Pipe :
| Steel grade | C | Si | Mn | P | S |
| St 30Si | ≤0.10 | ≤0.30 | ≤0.55 | ≤0.25 | ≤0.25 |
| St 30Al | ≤0.10 | ≤0.05 | ≤0.55 | ≤0.25 | ≤0.25 |
| St 35 | ≤0.17 | ≤0.35 | ≤0.40 | ≤0.25 | ≤0.25 |
| St 45 | ≤0.21 | ≤0.35 | ≤0.40 | ≤0.25 | ≤0.25 |
| St 52 | ≤0.22 | ≤0.55 | ≤1.6 | ≤0.25 | ≤0.25 |
Delivery condition:
BK BKW GBK NBK BKS
The surface of the steel pipe must have a smooth inner and outer surface suitable for the production method, and no surface
defects such as folding and heavy skin are allowed, and the average roughness Ra≤6.3μm
Diameter and wall thickness tolerance:
For steel pipes delivered as BK and BKW, the permissible diameter tolerances are subject to DIN2391 PtI. However, for the
steel pipe in the delivery state of BKS GBK NBK, due to heating deformation, the diameter deviation has increased, and the
allowable increase is as follows: S/D≥1/20 According to the value specified in the DIN2391 Pt1 dimension table.
1/40≤S/D＜1/20 1.5 times the value specified in the dimension table of DIN2391 Pt1
S/D<1/40 is twice the value specified in the DIN2391 Pt 1 dimension table.
Wall thickness tolerance is ±10% of nominal size
Bending deviation: The bending deviation is expressed by the deviation of a tension line with a length of 10000mm or a straight
edge at any two points parallel to the axis of the steel pipe
Application of High Precision Tube Seamless Steel Pipe:
Hydraulic system
Automobile
-
