Cold Drawn 17mm High Precision Steel Tube ST52 DIN2391 Tube Seamless Pipe
Product Details
Stress Relieved Cylinder Cold Rolled Tube
,Honed Cold Rolled Tube
,E355 Cold Rolled Tube
Cold Drawn 17mm High Precision Steel Tube ST52 DIN2391 Tube Seamless Pipe
TORICH is a rich-experienced manufacturer of steel tube especially for precision DIN2391, EN103051, etc steel tube.
1.Brief introduction of cold drawn high precision steel tubes of DIN2391:
OD:16-325mm WT:1-22mm
Material:ST35, ST45,ST52, ST30 Si, ST30Al
Our testing:
dimensional check,
surface inspection,
tensile test
flattening test
drift expanding test
Length tolerance:
up to 500mm: +2mm/-0mm
above 500mm up to 2000mm: +3mm/-0mm
above 2000mm up to 5000mm: +5mm/-0mm
length above 5000 up to 7000mm: +10mm/0mm
Tube ends:
Cold darwn high precision steel tube shall be cut nominally square to the tube axis and shall be free from excessive burrs.
Quantity ordered in meters:
up to 500: +20% deviation
above 500 up to 2000: +15% deviation
above 2000: +10% deviation
2.Final supply conditions:
| BK (+C) Cold finished/hard (cold finished as drawn) | No heat treatment after the last cold forming process. |
| BKW (+LC) Cold finished/soft (lightly cold worked) | After the last heat treatment there is a light finishing pass (cold drawing).
|
| BKS (+SR) Cold finished/stress relieve annealed. | After the final cold forming process the tubes are stress relieve annealed. |
| GBK (+A) Annealed | After the final cold forming process the tubes are annealed in a controlled atmosphere |
| NBK (+N) Normalized. (Mainly focus on) | After the final cold forming process the tubes are annealed above the upper transformation point in a controlled atmosphere |
3.Mechancial properties:
| Steel grade
|
BK |
BKS | GBK | NBK | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Tensile Strength Rm N/mm min | Elongation % min | Tensile Strength Rm N/mm min | Tensile Strength Rm N/mm min | Elongation % min | Tensile Strength Rm N/mm min | Elongation % min | Tensile strength Rm N/mm min
| Yield strength ReH N/mm min | Elongation % min | |
| St35 | 480 | 6 | 420 | 315 | 14 | 315 | 25 | 340-470 | 235 | 25 |
| St45 | 580 | 5 | 520 | 375 | 12 | 390 | 21 | 440-570 | 255 | 21 |
| St52 | 640 | 4 | 580 | 420 | 10 | 490 | 22 | 490-630 | 355 | 22 |
QUALITY CONTROL
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.

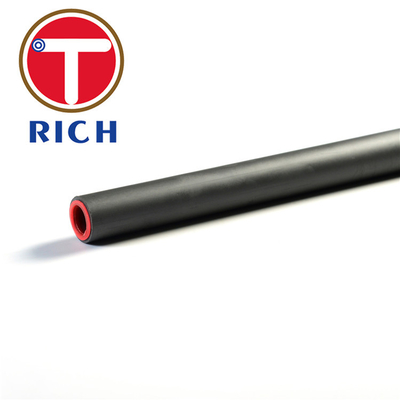

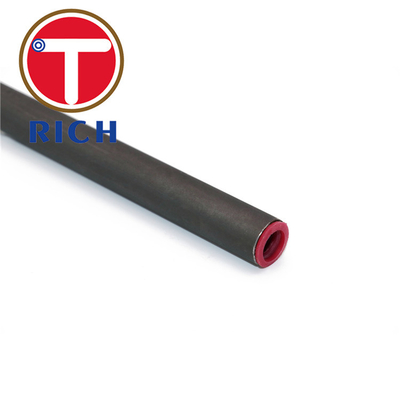

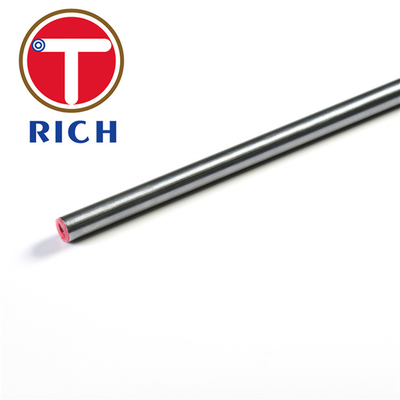

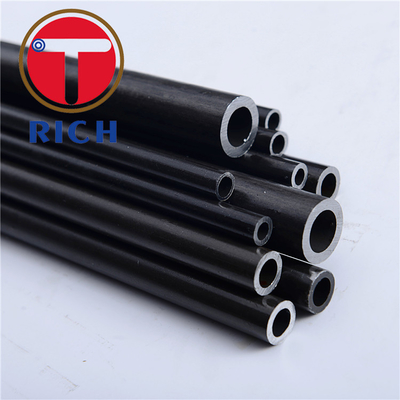

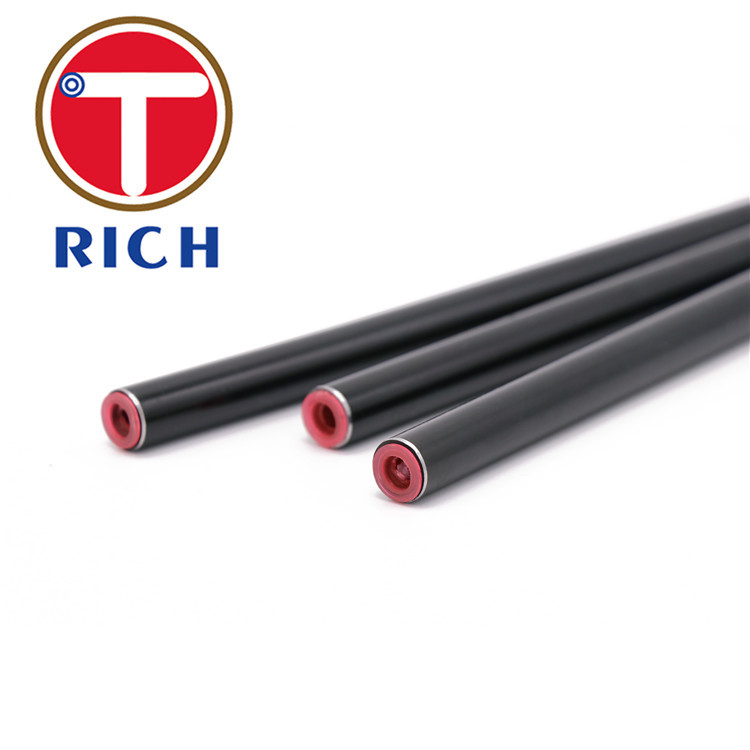

4.Cold drawn high precision steel tube product show:
5.Packing method of precision cold drawn steel tube:
FAQ
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but you need to pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
If you have another question, pls feel free to contact us
-
