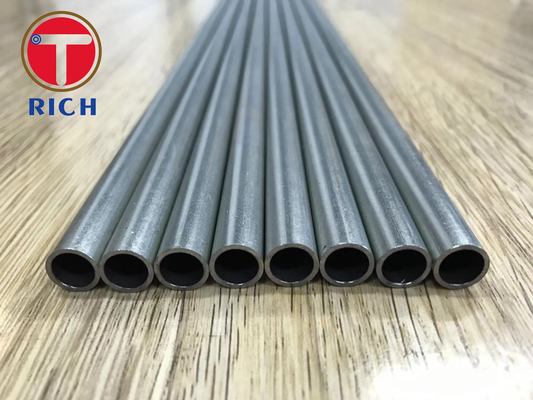

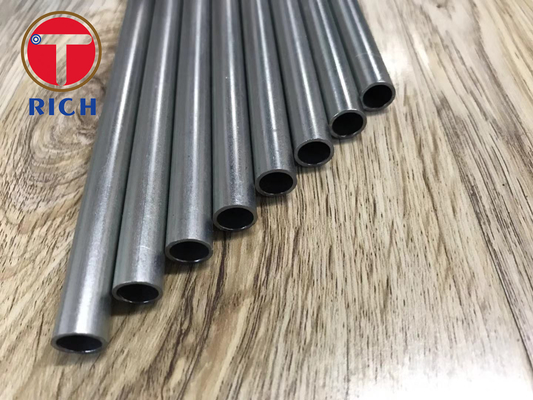

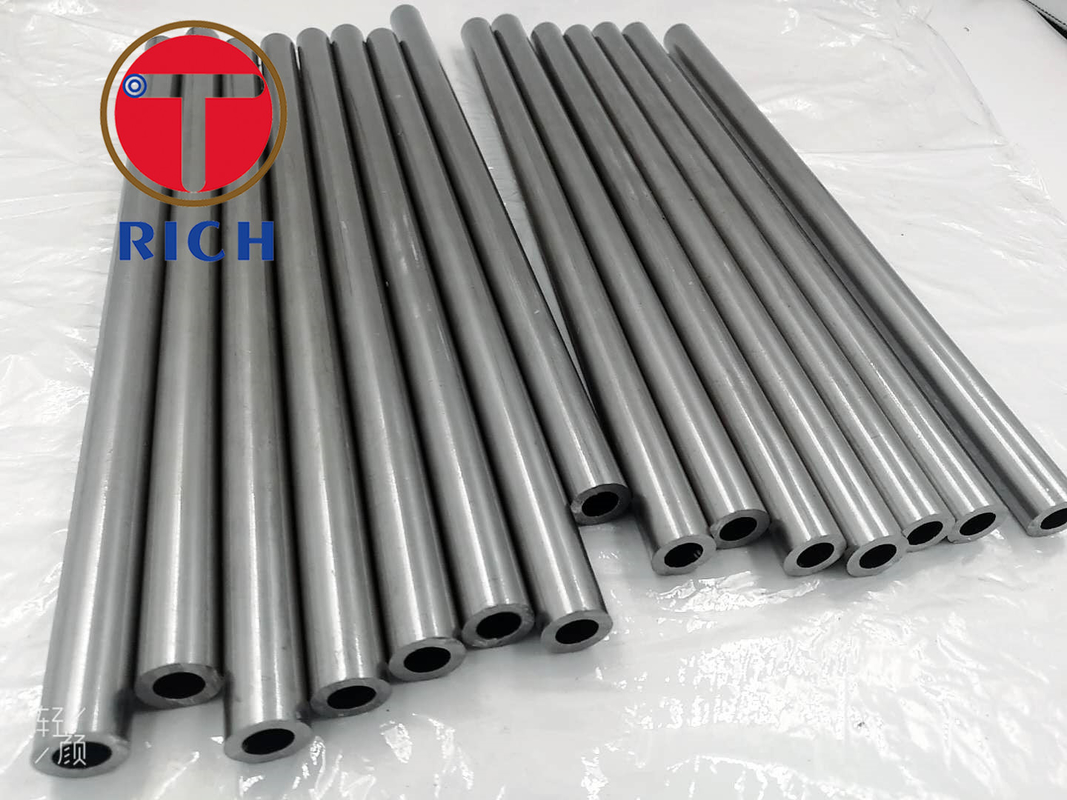

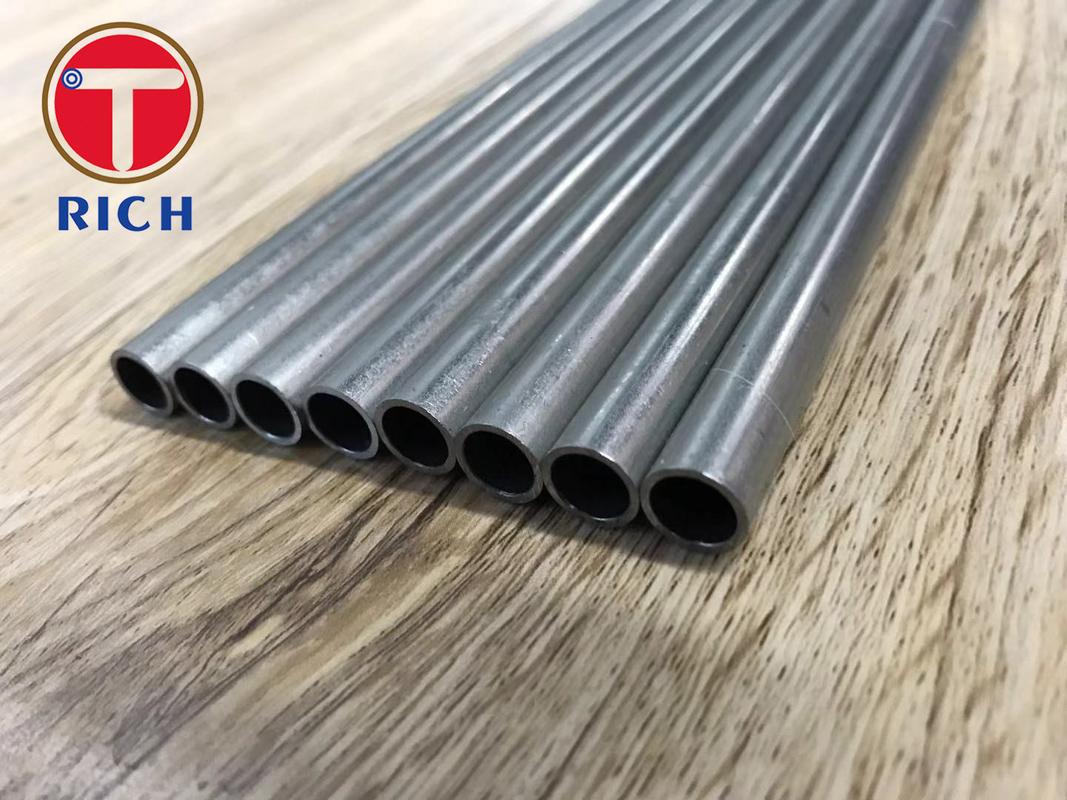

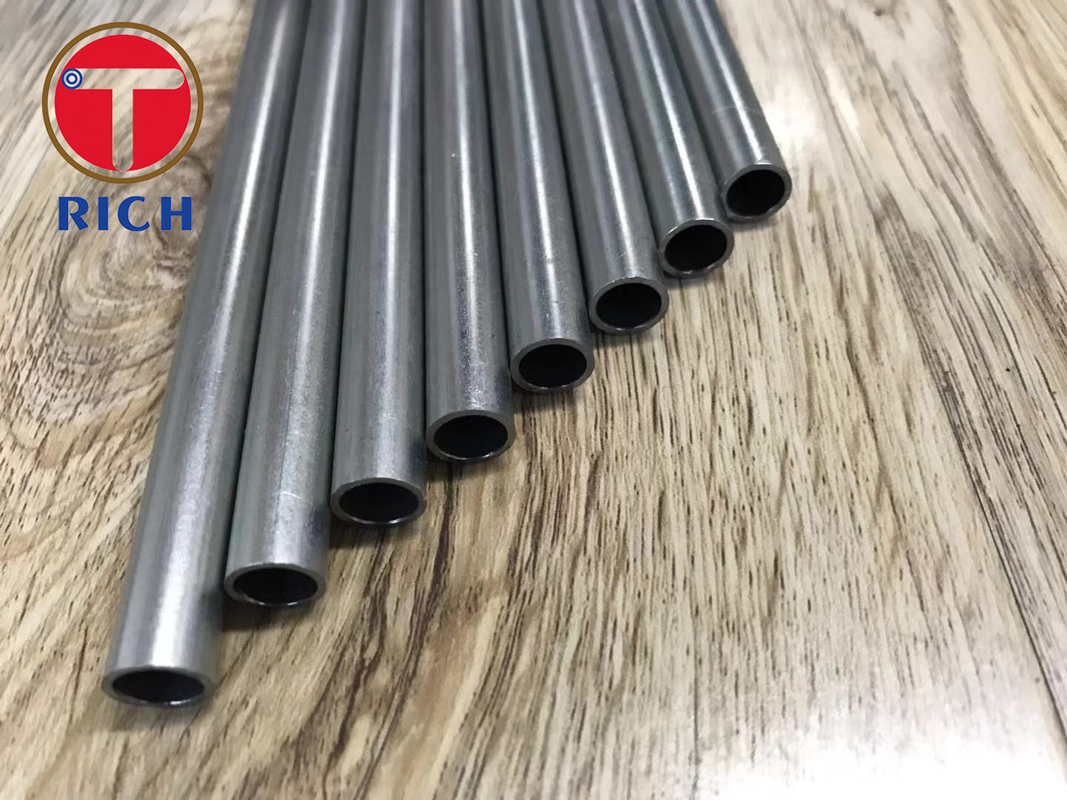

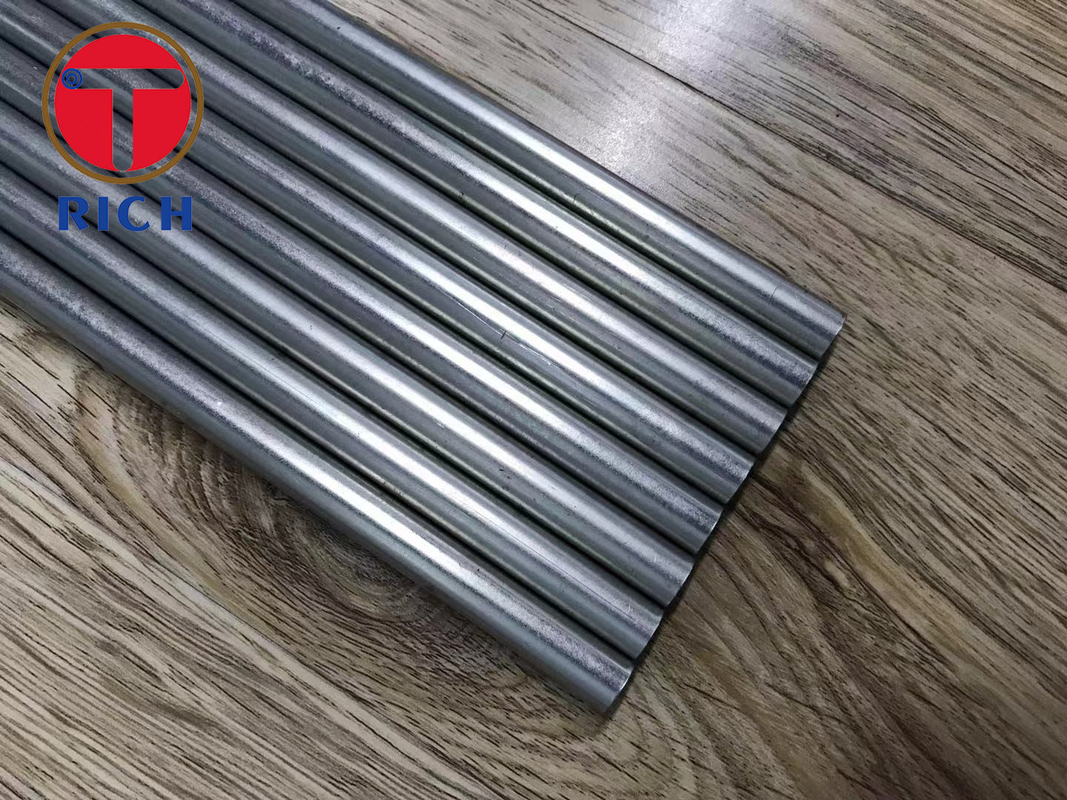

Galvanized Precision Seamless Steel Pipes Tubes
TORICH is a professional steel tubes supplier from China with over 23 years manufacturing and exporting experience.
Our main products are seamless precision pipe,carbon steel seamless precision pipe,alloy steel seamless precision pipe, stainless steel seamless precision pipe.The material we usually use for producing Galvanized Precision Seamless Steel Pipes Tubes is10#,20#,1010,1020,1026,ST37,ST44,E235,E215,E355
OD:4-76mm
Wall thickness:0.5-8mm
Material:E215 E235 E355 ST35,ST37.4,ST45,ST52.4 etc
| Hydraulic steel tube |
| Standard | | Material | Delivery | Surface | Sizes |
| DIN | 2391/1630/2445 | ST37.4 ST52.4 | NBK | 1) BA 2)Black phosphating 3) Galvanizing | OD2 -60mm × WT0.3 -10mm |
| EN | 10305-4 | E235 E355 | (+)N | |
| BS | 3602 | CFS 360 | | Zinc Layer thickness more than 8um |
| Other steel grades also available upon request |
Delivery condition:
The tubes can be produced in the following delivery conditions:
BK (+C) Cold finished/hard (cold finished as drawn).
No heat treatment after the last cold forming process.
BKW (+LC) Cold finished/soft (lightly cold worked)
After the last heat treatment there is a light finishing pass (cold drawing).
BKS (+SR) Cold finished/stress relieve annealed.
After the final cold forming process the tubes are stress relieve annealed.
GBK (+A) Annealed.
After the final cold forming process the tubes are annealed in a controlled atmosphere.
NBK (+N) Normalized. (Mainly focus on)
After the final cold forming process the tubes are annealed above the upper transformation point in a controlled atmosphere
Production routing:
Quality carbon steel from bao steel etc big mill, cold drawing the heat treatment without oxidization , NBK condition. Do nondestructive testing ,HT tests and do dipping oil antirust protection, Packed tube in wooden boxes.
Main feature:
High precision
Excellent brightness
No oxidization on outer and inner walls after heat treatment
High cleanness of inside wall
High pressure
No deformation after clod bending
No crack after flaring and flattening
Color : Gray with white
Application:
Hydraulic system
Automobile
Tolerance
Name | Scope mm | DIN seriesmm |
| OD | 04-30 | ±0.08 |
| OD | 31-40 | ±0.15 |
| OD | 41-50 | ±0.20 |
| OD | 51-60 | ±0.25 |
| Wall | 0.5-7 | ±10% |
Surface:
NBK

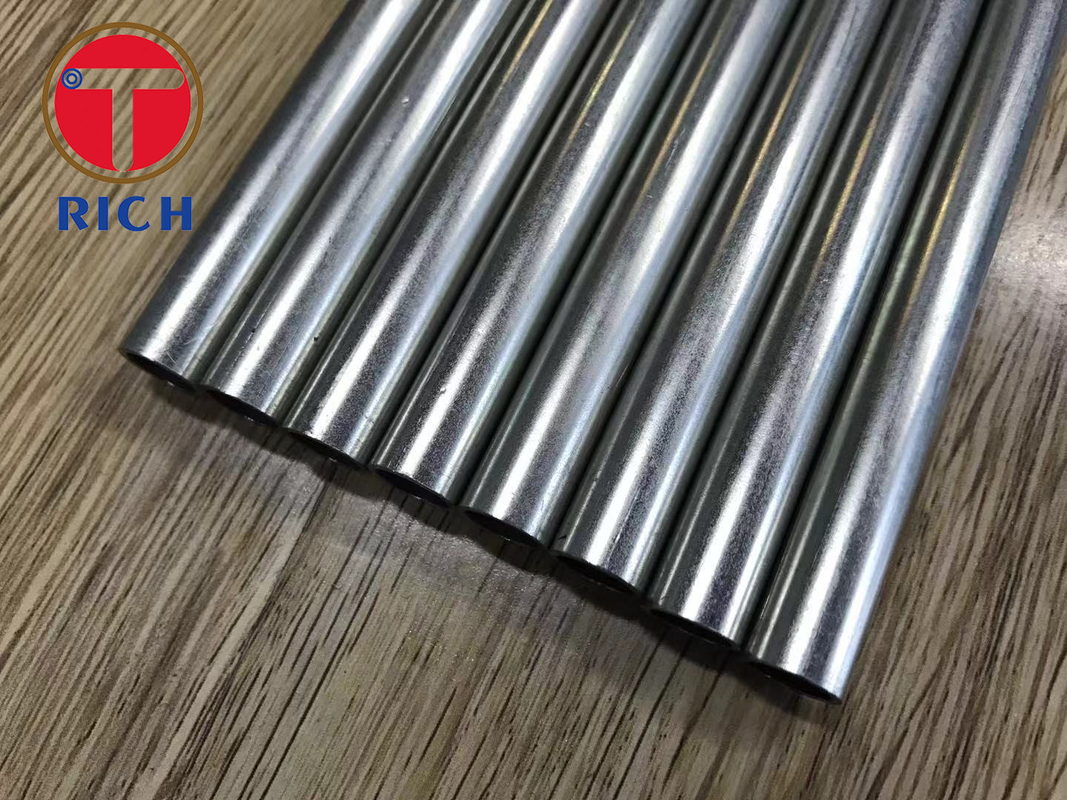

Galvanization/Galvanized/Zinc Coated
Blue White Zinc (Trivalent Chromium Passivation)
Plating Colour Zinc(Trivalent Chromium Passivation)
Yellow, Army-Green
Phosphated/Black Phosphated
Surface quality
Without oxidization
No crack
No fold
No rolling fold
No scar
No laminar defect
What we can do in our testing center
Physis laboratory
Chemical spectrometer
Pressure blasting machine
Metallographic analysis
Salt Spray Test
