DIN2391 St52 Galvanized Precision Steel Tube for Automotive System
Product Details
din 2391 st52
,din 2391 Precision Steel Tube
,TORICH Precision Steel Tube
DIN2391 St52 Galvanized Precision Steel Tube for Automotive System
Material:E215 E235 E355 ST35,ST37.4,ST45,ST52.4 etc
Size: OD:4-76mm, Wall thickness:0.5-8mm
Surface:NBK, Galvanization/Galvanized/Zinc Coated, Blue White Zinc (Trivalent Chromium Passivation),
Plating Colour Zinc(Trivalent Chromium Passivation), Yellow, Army-Green, Phosphated/Black Phosphated
Surface quality:Without oxidization, No crack, No fold, No rolling fold, No scar, No laminar defect
Tolerance
| Name | Scope mm | DIN seriesmm |
| OD | 04-30 | ±0.08 |
| OD | 31-40 | ±0.15 |
| OD | 41-50 | ±0.20 |
| OD | 51-60 | ±0.25 |
| Wall | 0.5-7 | ±10% |
| Hydraulic steel tube | |||||
| Standard | Material | Delivery | Surface | Sizes | |
| DIN | 2391/1630/2445 | ST37.4 ST52.4 | NBK | 1) BA 2) 2)Black phosphating 3)Galvanizing | OD2 -60mm WT0.3-10mm |
| EN | 10305-4 | E235 E355 | (+)N | ||
| BS | 3602 | CFS 360 | Zinc Layer, thickness more than 8um | ||
| Other steel grades also available upon request | |||||
Delivery Condition: BK(+C), BKW(+LC), BKS(+SR), GBK(+A),NBK( +N)
| BK (+C) Cold finished/hard | No heat treatment after the last cold forming process. |
| BKW (+LC) Cold finished/soft | After the last heat treatment there is a light finishing pass (cold drawing). |
| BKS (+SR) Cold finished/stress relieve annealed. | After the final cold forming process the tubes are stress relieve annealed. |
| GBK (+A) Annealed. | After the final cold forming process the tubes are annealed in a controlled atmosphere. |
| NBK (+N) Normalized. | After the final cold forming process the tubes are annealed above the upper transformation point in a controlled atmosphere |

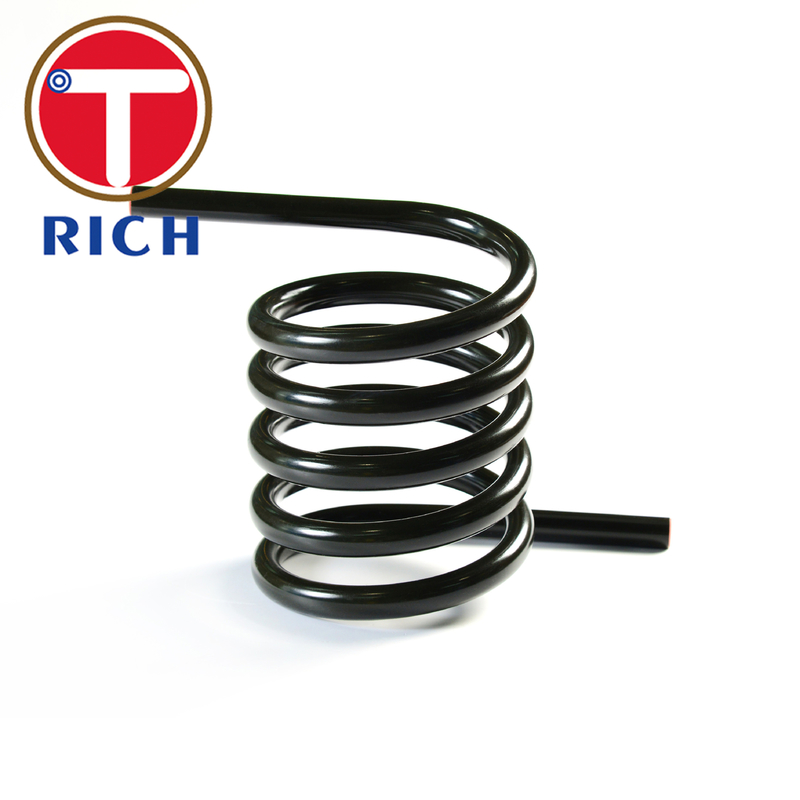

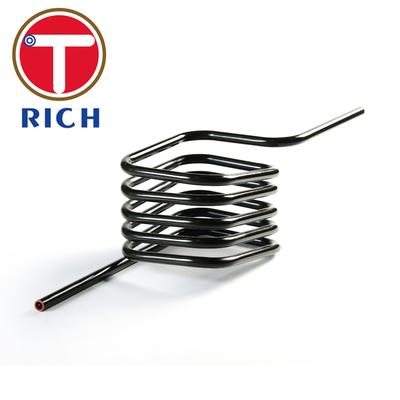

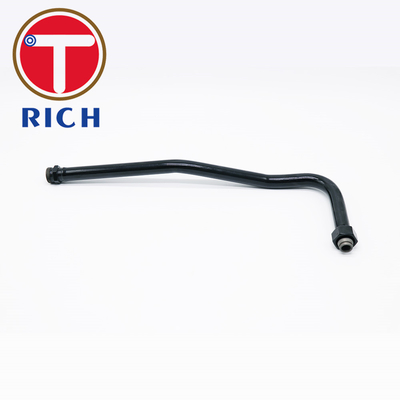

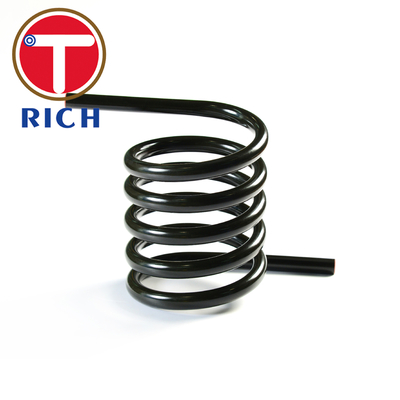

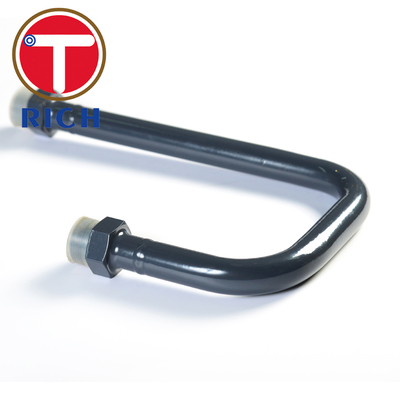

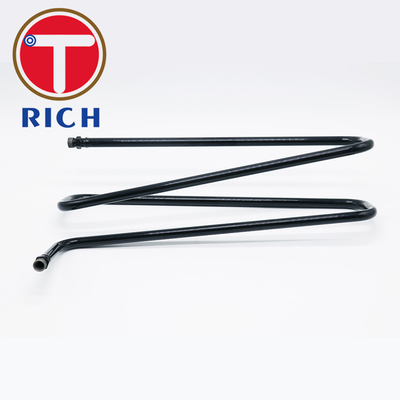

Product Display Galvanized Precision Steel Tube for Automotive System
Manufacturing Process
Application: Hydraulic system, Automobile
Packing & Delivery
Packing Details : In bundles or in wooden boxes packaging
Our Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
-
