2205 Round ASTM A213 25mm Stainless Steel Tube for Chemical Industry
Product Details
25mm stainless steel round tube
,Round 25mm stainless steel tube
,2205 25mm stainless steel tube
2205 Round ASTM A213 25mm Stainless Steel Tube for Chemical Industry
Product Discription
| Producsts Name | ASTM A213 Seamless Feritic Austenitic Alloy-Steel Boiler,Superheater, Heat Exhchanger Tubes |
| Technical Standard | TP316 TP304 T5 T9 T11 T12 T21 T22 T91 T92 |
| Size Range | OD: 3.2-127mm WT: 0.4-12.7mm Length: 6m-12m Cutting Length: according to customers PO. |
| Surface Treatment/Surface Condition | Pickling,Blasting,Polishing |
| Tube Inspection | Tensile Requirement Hardness Requirement Flattening Test Flaring Test |
| Tube Application | Instrument Tubing Chromatography tubing Hydraulic Tubing High Pressure Tubing Cleaned Tubing Multi Core Tubing |
Chemical Composition
| Material | C | Mn | P | S | Si |
| TP304 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 |
| TP316 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 |
| T5 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 |
| T9 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 |
| T11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 |
| T12 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | 0.50 |
| T21 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 |
| T22 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 |
| T91 | 0.07-0.14 | 0.30-0.60 | 0.020 | 0.010 | 0.20-0.50 |
| T92 | 0.07-0.13 | 0.30-0.60 | 0.020 | 0.010 | 0.50 |
Surface Condition
Ferritic Alloy cold-finished steel tubes are free of scale and suitable for inspection
Ferritic alloy hot-finished steel tubes are free of loose scale and suitbale for inspection.

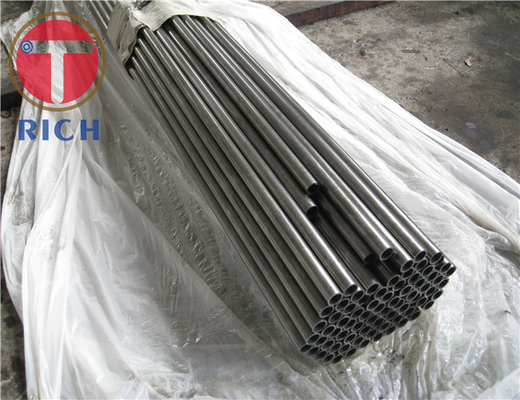

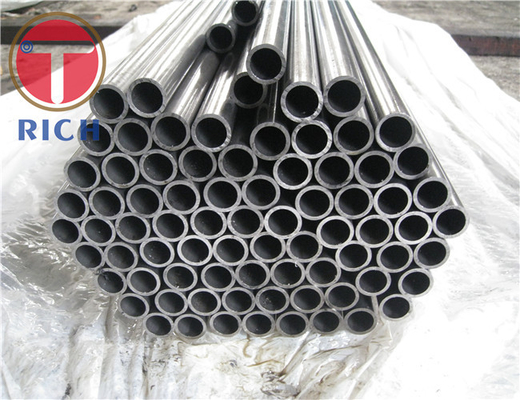

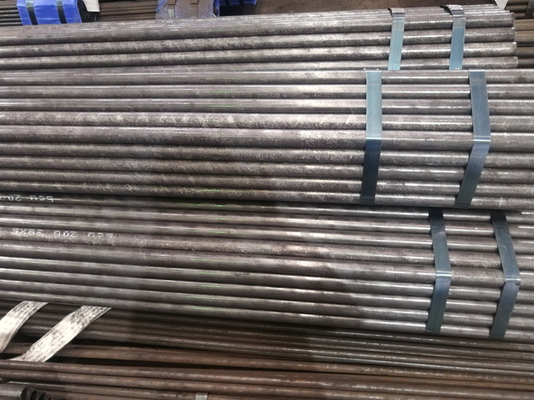

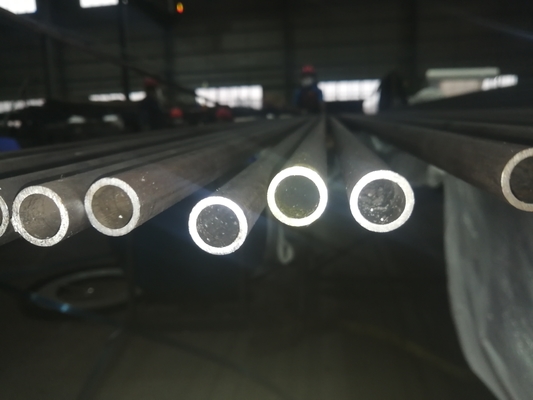

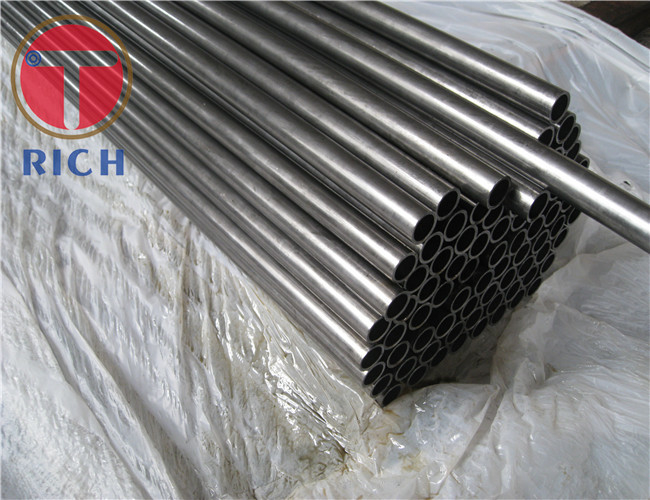

Product show:
Production Process
FCA
1. who are we?
TORICH is not only professional manufacturer and exporter, but also international marketing and sales company in the field of steel tubes from China. Our factory was established in 1997, with the name of Haiyan Sanxin Steel Pipe Co., Ltd. Our technicians are equipped with great engineering experience in steel pipe industry for more than 22 years, they have great command of production technology for Cold Drawing and Cold Rolling, as well as heat treatment and inspection. So we have a strong technician team and manufacturing capability.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Stainless Steel/Carbon Steel/AlloySteel,Titanium,Copper/Brass,etc.
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
-
