ASME B16.5 Oiled Surface Long Weld Neck Flange Non Alloy

Product Description

ASME B16.5 Long Weld Necks Flange

Long Weld Necks(LWN), also commonly referred to as Nozzles, typically are made with square cuts to replace pipe, not to be welded up to pipe. Due to this, long weld necks do not have schedule bores. A typical weld neck flange has a weld prep at the tip of the neck to weld up to matching pipe, whereas long weld neck flanges, or “nozzles,” are square cut at the ends for the purpose of utilization with your tank or alternate assembly. Schedule bores for regular Long Weld Neck Flanges (Not including Heavy Barrels) are the same as the nominal size of the flange. For example, on a 2-inch LWN, the bore size will also be 2.00 inches.

STANDARD SPECIFICATIONS OF LONG WELD NECK FLANGE

• Type Long Welding Neck Flange (RFLWN)
• Size ½” (15 NB) to 48″ (1200NB)
• Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
• DIN DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
• BS BS4504 , BS4504, BS1560, BS10
• In Form SORF, WNRF, BLRF, SWRF, LAP Joint, Threaded, Reducing, Spectacle, etc
• Standard ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820
• Coating/Surface Treatment Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
• Connection Type Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large, Tongue & Groove, Small Tongue & Groove
• Flange Face Type Flat Face (FF), Raise Face (RF), Ring Joint (RJT)
• Dimensions ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
• Packing No Fumigate or Fumigate Plywood/Wood Pallet or Case
• Usage/Applications Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.

MATERIALS, STANDARDS, & GRADES OF LONG WELD NECK FLANGE

• Stainless Steel Long Weld Neck Flange ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
• Duplex Steel Long Weld Neck Flange ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
• Super Duplex Long Weld Neck Flange ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
• Nickel Alloys Long Weld Neck Flange ASTM SB564, SB160, SB472, SB162 – Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)
• Copper Alloys Long Weld Neck Flange ASTM SB 61 , SB62 , SB151 , SB152 – UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
• Alloys Long Weld Neck Flange ALLOY 20, ALLOY C, ALLOY C276, ALLOY B2
• Low Temperature Steel Long Weld Neck Flange ASTM A350 LF2, LF3, LF6
• High Yield Long Weld Neck Flange ASTM A694 F42, F52, F60, F65, F70
• Carbon Steel Long Weld Neck Flange ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706
• Alloy Steel Long Weld Neck Flange ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91

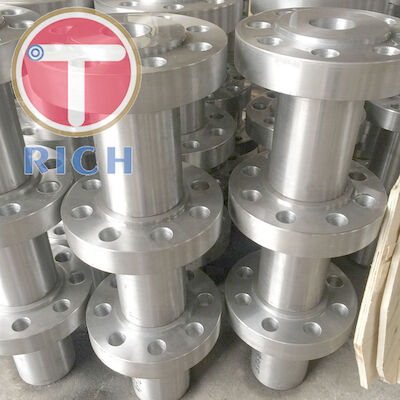

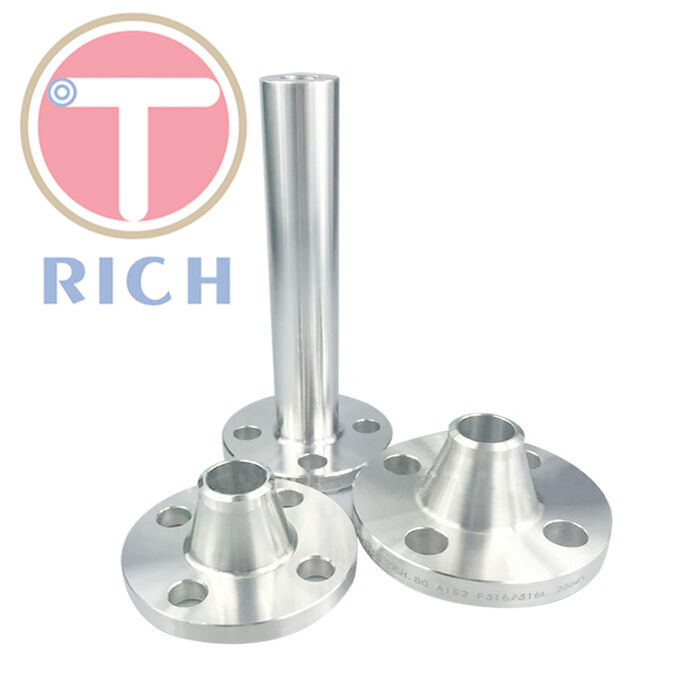

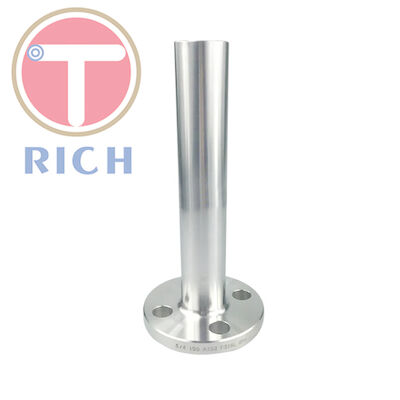

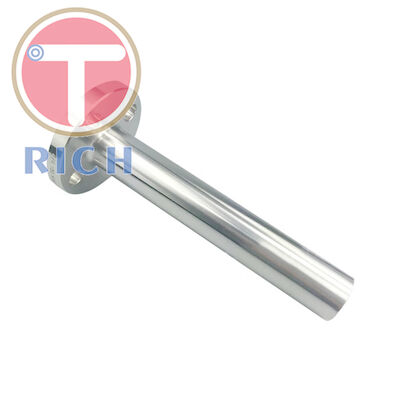

Product Pictures:

Company Introduction:

Packaging and Delivery:

FAQ:

Q: Are you trading company or manufacturer?

A: We are a professional steel pipes materials manufacturer.

Q: How long is your delivery time?

A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.

Q: Do you provide free sampleas?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
