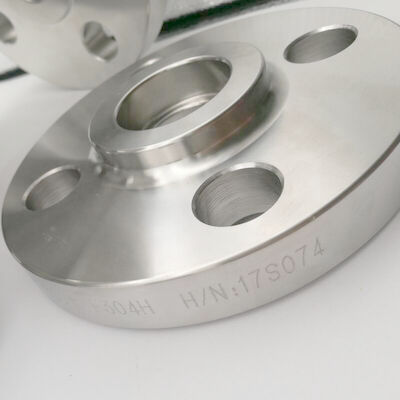

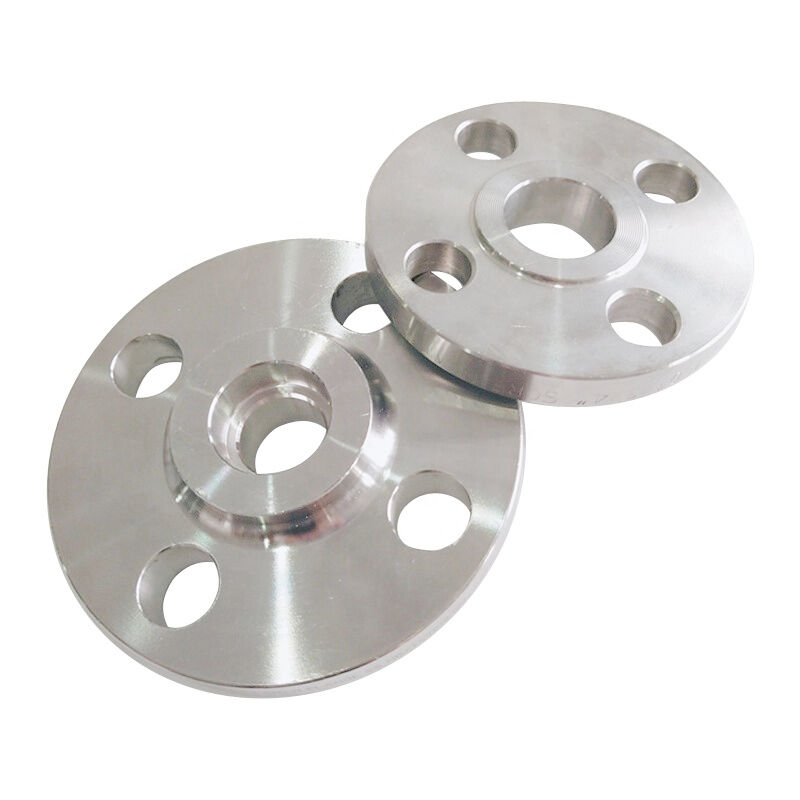

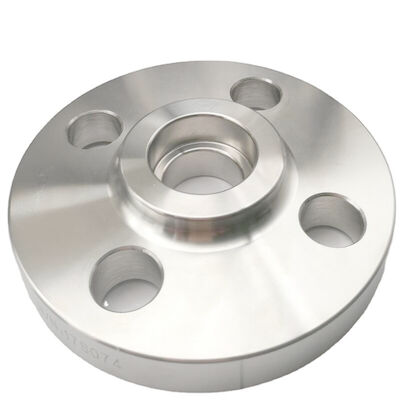

CNC Machining Carbon Steel Welding Neck Flange Titanium GR5
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
IS09001 BV TUV
Model Number:
Non-Standard
Trading Properties
Minimum Order Quantity:
0.5 tons
Price:
Negotiation
Payment Terms:
L/C, T/T
Supply Ability:
50tons per year
Product Summary
Socket Weld/ Slip On/Welding Neck/ Threaded/ Lap Joint/ Plate /Blind Flange, Titanium GR5 Etc. Quick detail: Material : Carbon steel Low alloy steel Stainless steel JIS G 4303 SUS 304 JIS G 4304 SUS 316 Gr5 Size: 1/2”~240" (DN 15mm-DN 6000mm) Produce method: Raw materials --Testing-Under material-...
Product Details
Highlight:
CNC Machining Welding Neck Flange
,Carbon Steel Welding Neck Flange
,Titanium GR5 Socket Weld Flange
Cnc Machining Or Not:
CNC Machining
Application:
Industrial Equipment
Surface Treatment:
As Required,polish/anodizing/plated
Process:
Cnc Turning,CNC Milling
Service:
OEM ODM,Customized OEM CNC Machining
Product Name:
High Quality CNC Lathe Machined Precision OEM Other Auto Parts
Tolerance:
0.01-0.05mm
Equipment:
CNC Machining Centres,CNC Lathe Machines,lathe/milling/grinding,Numerical Control Car
Packing:
Poly Bag + Inner Box + Carton
Product Description
Socket Weld/ Slip On/Welding Neck/ Threaded/ Lap Joint/ Plate /Blind Flange, Titanium GR5 Etc.
Quick detail:
Material :
Carbon steel
Low alloy steel
Stainless steel
JIS G 4303 SUS 304
JIS G 4304 SUS 316
Gr5
Size:
1/2”~240" (DN 15mm-DN 6000mm)
Produce method:
Raw materials --Testing-Under material--Forge--Forgings--Process--CNC Machining--CNC drilling--Clean--Package--Ship.
Certificate:
TUV,BV,ISO
Nomial sizes of lingt flange for nominal pressure 10K
| Nominal preesure | Classification of flange | Nominal Size A | |||||||||||||||||||
| 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 90 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 300 | 350 | 400 | ||
| 10K light type | SOP | O | O | O | O | O | O | O | O | O | O | O | O | O | O | O | O | O | O | O | - |
| SOH | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | O | |
Torich supply fitting with nice quality and price
