A350, A182, PN20, PN50 Smooth Surface PL DN250 PN10 S235JR Slip On Flange Plate Flange Flanges Dimention
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
IS09001 ISO14001 TS16949
Model Number:
A350, A182
Trading Properties
Minimum Order Quantity:
0.5 tons
Price:
Negotiation
Payment Terms:
L/C, T/T
Supply Ability:
50tons per year
Product Summary
PL Flange M28 X 1.5 Pipe And Flanges Flanges Dimention Technical Standard HG20592,ASME B16.5,DIN2630WN,JIS2220PL,ASTM A182 etc Steel Grade Stainless Steel: 304,316,316Ti,321 347 Alloy Steel: F11,F22,F91,F5,F9,F51 Duplex Stainless Steel :F51,F53,F55,F60 Type: (1)PL: PL Flange； (2)WN: Weld Neck Flange ...
Product Details
Highlight:
A350 Flange Plate
,A182 Flange Plate
,DN250 Flange Plate
Material:
Carbon Steel Or Stainless Steel
Material Capabilities:
Stainless Steel
Cnc Machining Or Not:
CNC Machining
Application:
Industrial Equipment
Surface Treatment:
As Required,polish/anodizing/plated
Process:
Cnc Turning,CNC Milling
Service:
OEM ODM,Customized OEM CNC Machining
Product Name:
High Quality CNC Lathe Machined Precision OEM Other Auto Parts
Tolerance:
0.01-0.05mm
Equipment:
CNC Machining Centres,CNC Lathe Machines,lathe/milling/grinding,Numerical Control Car
Packing:
Poly Bag + Inner Box + Carton
Product Description

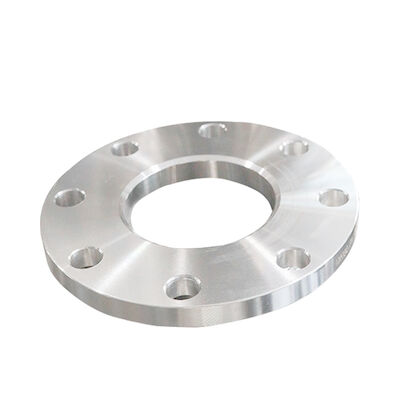

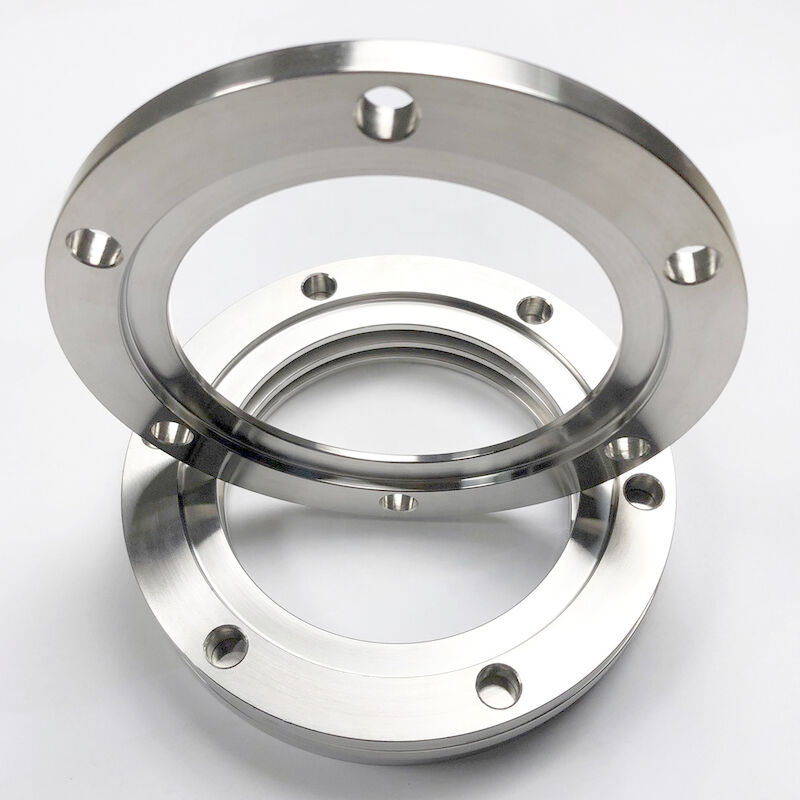

PL Flange M28 X 1.5 Pipe And Flanges Flanges Dimention
Technical Standard
HG20592,ASME B16.5,DIN2630WN,JIS2220PL,ASTM A182 etc
Steel Grade
Stainless Steel: 304,316,316Ti,321 347
Alloy Steel: F11,F22,F91,F5,F9,F51
Duplex Stainless Steel :F51,F53,F55,F60
Type:
(1)PL: PL Flange；
(2)WN: Weld Neck Flange
(3)SO: Slip On Flange
(4)BL: Blind Flange
(5)TH: Threaded Flange
(6)IF: Integral Pipe Flange
(7)SW: Socket Weld Flange
Application:
It is widely used in petroleum, chemical, nuclear power plant, food manufacturing, construction, shipbuilding, paper making, pharmaceutical and other industries. In pipeline engineering, flange is mainly used for pipeline connection.
1. Stainless steel flange is used to connect pipes.
2. Stainless steel flange is used to connect valve and pipe.
