ASTM A519 1035 Seamless Carbon And Alloy Steel Mechanical Tubing For Hydraulic
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 2 tons | Price : | $1500-1600 |
|---|---|---|---|
| Packaging Details : | Packed in hexagonal in boxes | Delivery Time : | 45-60 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 20 tons per month |
| Place of Origin: | China | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO9001 ISO14001 | Model Number: | 304L |
|
Detail Information |
|||
| Tolerance Of OD: | 0.1-0.4mm | Tolerance Of ID: | 124.5-125.2mm |
|---|---|---|---|
| Tolerance Of Length: | -0/+10mm | Grade: | 304L |
| Usage: | Planar Sputtering Target, Alloy Sputtering Target, Cylindrical Ag Alloy Sputtering Target,Metal Single Crystals | Standard: | DIN2462 |
| High Light: | Planar Sputtering Target Stainless Steel Tubing,0.4mm Stainless Steel Tubing,DIN2462 Stainless Steel Seamless Tube |
||
Product Description
Torich 133*4*4113mm 304L Planar Sputtering Target Sputtering Target Stainless Steel Tube
Torich 133*4*4113mm 304L Sputtering Target Stainless Steel Tube
Grade:304L
Specification: 133*4*4113mm
Tolerance of OD:0.1-0.4mm
Tolerance of ID:124.5-125.2mm
Tolerance of Length:-0/+10mm
Ellipticity: Roundness deviation≤0.10mm
Straightness deviation: Overall length direction≤0.5mm
Standard:DIN2462
Special requirements:
1. Quality requirements:
Tolerance of OD:0.1-0.4mm
Tolerance of ID:124.5-125.2mm Tolerance of Length:-0/+10mm
Ellipticity: Roundness deviation≤0.10mm
Straightness deviation: Overall length direction≤0.5mm
2. Appearance requirements:
The inner and outer surface of the steel pipe shall be free from visible cracks, scabs and deformation caused by bumping bow, and the surface roughness Ra＜32um.
The outer end shall be free from deformation, elliptical notch and other defects, and the pipe body shall be free from pits(pits deeper than 0.1mm are not allowed on the inner wall of the steel pipe),inclusions and other defects. There shall be no scratch (0.1mm).
Dirt on the inner hole: there shall be no oil pollution inside and outside the steel pipe or dirt and rust that can not be removed by fine sandpaper.
3. Packing requirements:
Casing cap at both ends of steel pipe, woven bag packing
4. Requirements for lettering:
TP304L 138mm*4.4mm HEAT NO:×××
Note:(The size is only used ink-jet printing, the size of ink-jet printing should also be written on the outer package, not the length)
Application:
Planar Sputtering Target,
Alloy Sputtering Target
Cylindrical Ag alloy Sputtering Target
Metal Single Crystals
| Tolerance of OD | 0.1-0.4mm |
| Tolerance of ID | 124.5-125.2mm |
| Tolerance of Length | -0/+10mm |
| Ellipticity | Roundness deviation≤0.10mm |
| Standard: | DIN2462 |

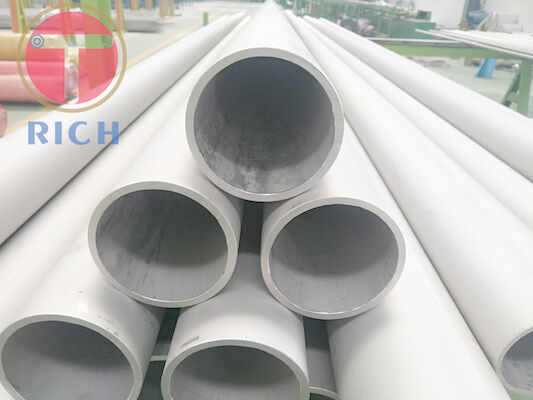

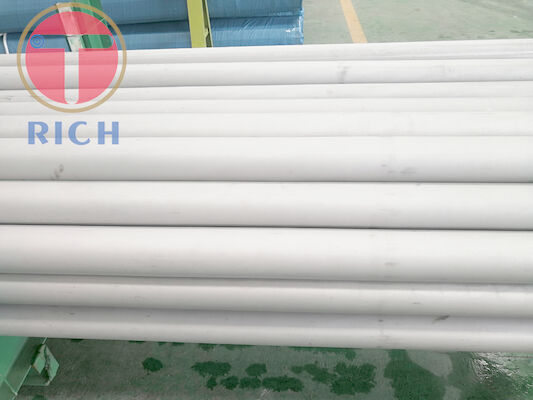

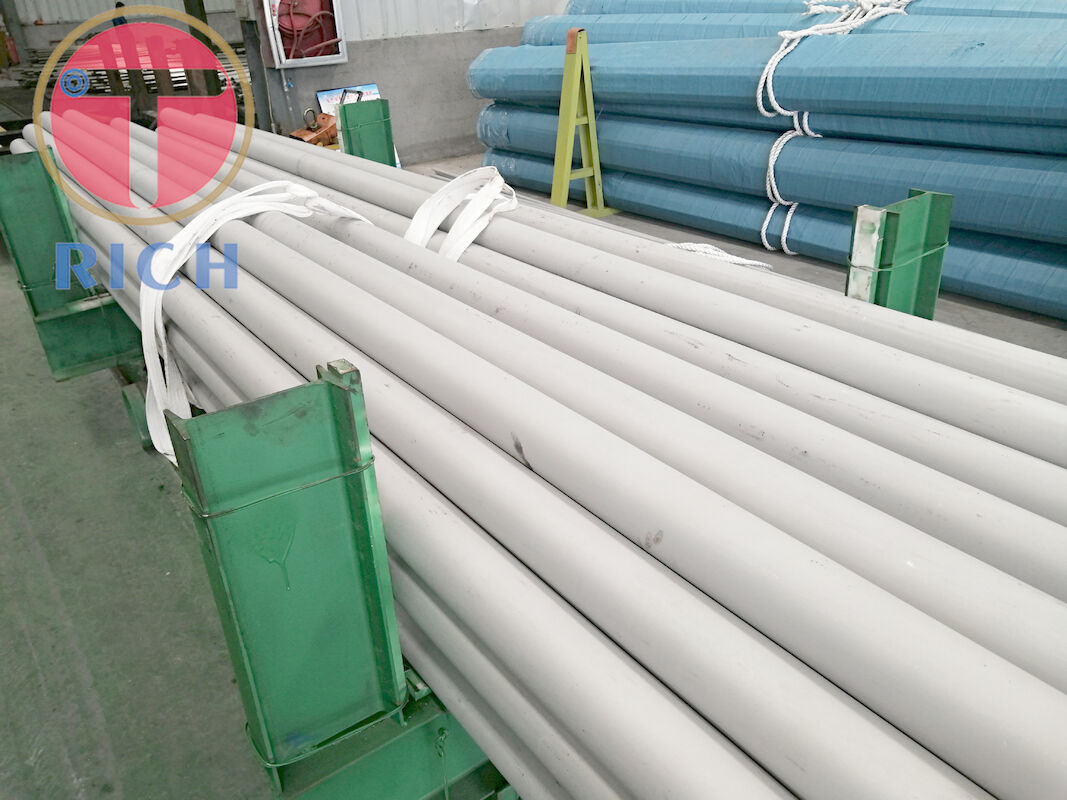

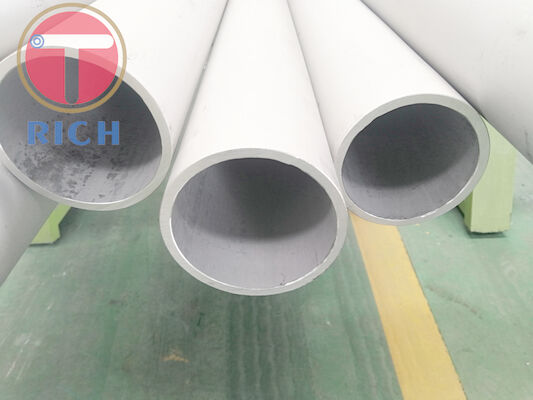

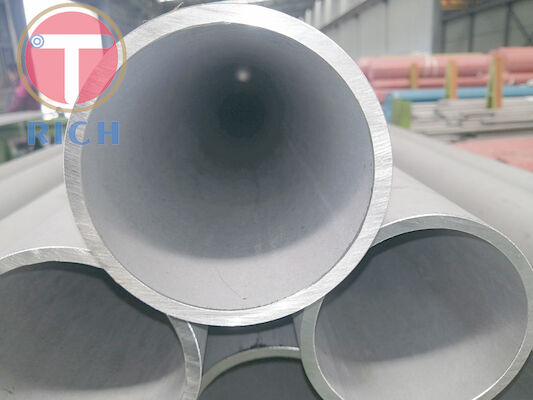

Picture:
QUALITY CONTROL
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.
A&Q
A: A professional steel pipes materials inventor, manufacturer and solution provider
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample of SCM 440 42CrMo Mechanical Tubing for Reinforcement sleeve for free charge but need pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
