SA178a Annealed ASTM A178 ERW Heat Exchanger Tubes
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 3 tons | Price : | negotiable |
|---|---|---|---|
| Packaging Details : | packing in wooden boxes or in hexagonal bundles | Delivery Time : | 30-35 days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 60000 Ton per year |
| Place of Origin: | ZheJiang,CHINA | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO9001; ISO14001; TSI16949 | Model Number: | ASTM A226 |
|
Detail Information |
|||
| Product Name: | ASTM A226 Electric Resistance Welded Carbon Steel Boiler Superheater Tubes For High Pressure Service | Product Keyword: | Welded Carbon Boiler Steel Pipe |
|---|---|---|---|
| Application: | For Boiler Pipe, Smoke Pipe, Heat-exchanger And Chemical Industry | Secondary: | Non-secondary |
| Section Shape: | Round | Alloy Or Not: | Non-Alloy |
| High Light: | High Pressure Service Superheater Tubes,5mm Electric Resistance Welded Pipe,ASTM A226 Carbon Steel Boiler Tubes |
||
Product Description
| OD | 5-420mm |
| WT | 1-50mm |
| Length | max12000mm |
Scope
1.1 This specification covers minimum-wall-thickness, electric-resistance-welded, carbon steel, boiler and superheater tubes for high-pressure service.
1.2 The tubing sizes and thicknesses usually furnished to this specification are 1/2 in. to 5 in. [12.7 to 127 mm] in outside diameter and 0.085 to 0.360 in. [2.2 to 9.1 mm] inclusive, in minimum wall thickness. Tubing having other dimensions may be furnished, provided such tubes comply with all other requirements of this specification.
1.3 Mechanical property requirements do not apply to tubing smaller than 1/8 in. [3.2 mm] in inside diameter or 0.015 in. [0.4 mm] in thickness.
1.4 When these products are to be used in applications conforming to ISO Recommendations for Boiler Construction, the requirements of Specification A520 shall supplement and supersede the requirements of this specification.
1.5 An optional supplementary requirement is provided and, when desired, shall be so stated in the order.
1.6 The values stated in either inch-pound units or SI units are to be regarded separately as standard. Within the text, the SI units are shown in brackets. The values stated in each system are not exact equivalents; therefore, each system must be used independently of the other. Combining values from the two systems may result in nonconformance with the specification. The inch-pound units shall apply unless the "M" designation of this specification is specified in the order.

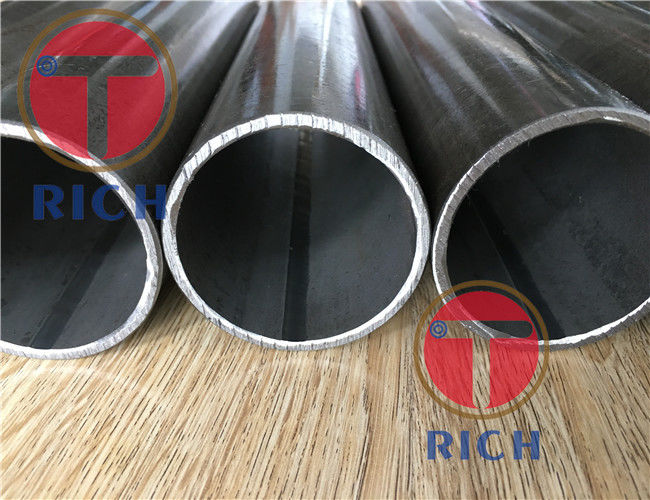

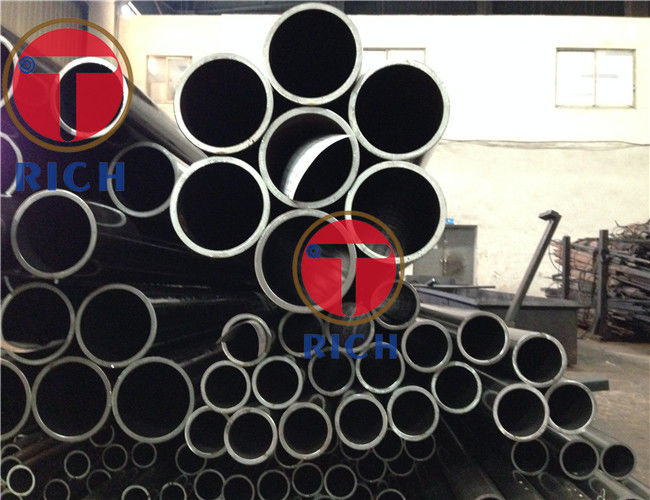

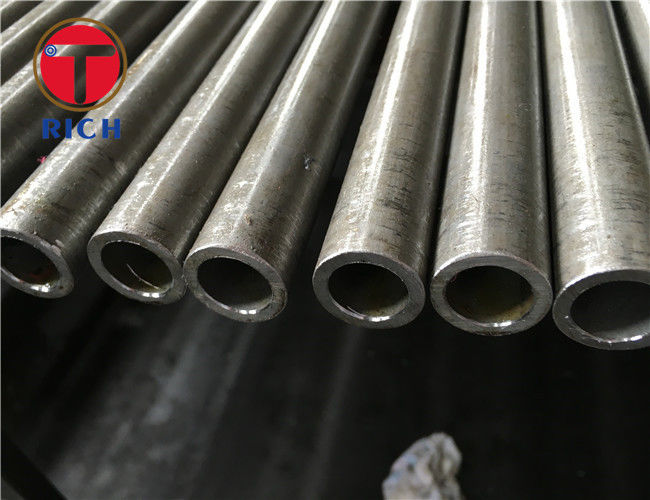

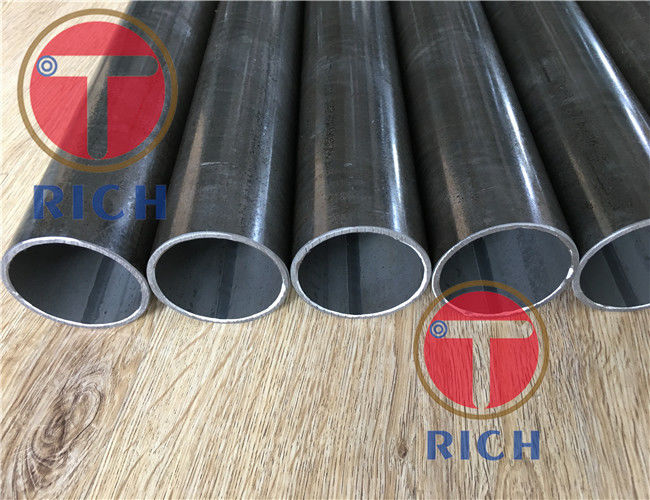

Product show:
Q: Are you trading company or manufacturer?
A: We are a professional steel pipes materials manufacturer.
Q: How long is your delivery time?
A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.
Q: Do you provide free samples?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
