ASTM A179 Carbon Steel 1mm Heat Exchanger Tubes

ASTM A179 Carbon Steel 1mm Heat Exchanger Tubes

ASTM A179 Carbon Steel 1mm Heat Exchanger Tubes

Brand Name: TORICH
Model Number: SA179, SA192, SA210, SA213 T5, T11,T22
MOQ: 5 tons
Price: 800-1200 usd per ton
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50000 tons per year
Detail Information
Product Description
Detail Information
Place of Origin:
Zhejiang,China
Certification:
ISO9001,ISO14001,TS16949
Product Name:
ASTM A179 Carbon Steel Heat Exchanger Tubes
Keyword:
Heat Exchanger Tubes
Shape:
Round
Type:
Seamless
Material:
T5 T11, T12 ,A-1,C
Application:
For Boiler,heat Exchanger,Superheater Use
Brand:
TORICH
Length:
Customized
OD:
12.7-127mm
WT:
1-15mm
Packaging Details:

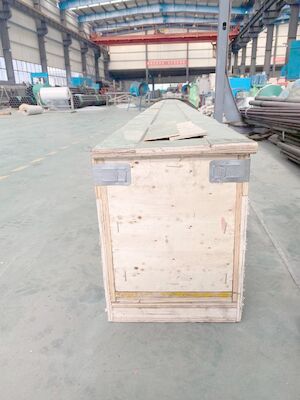

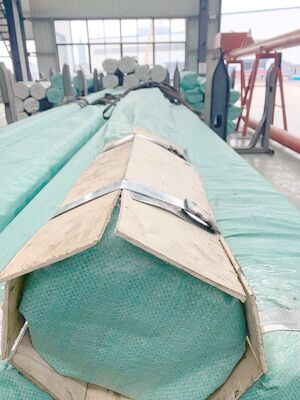

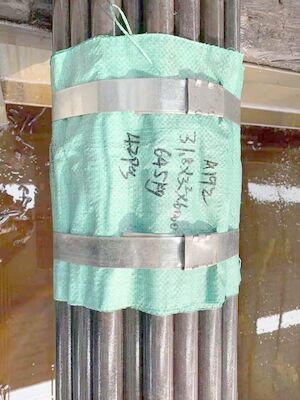

anti-rust oil protection in Hexagonal Bundles or Wooden Boxes
Supply Ability:
50000 tons per year
Highlight:

Carbon Steel Heat Exchanger Tubes

,

ASTM A179 Heat Exchanger Tubes

,

1mm Heat Exchanger Tubes

Product Description

ASTM A179 Carbon Steel Heat Exchanger Tubes

Applications: for Boilers,Superheaters,Steam linepipes of boilers


Size range: O.D.:12.7-127mm W.T.:1-15mm L: according to customer requirement





Steel Grade and Chemical Compositions:
Grade C Mn P S Si
A-1 ≤0.27 ≤0.93 ≤0.035 ≤0.035 ≥0.10
C ≤0.35 0.29-1.06 ≤0.035 ≤0.035 ≥0.10


Mechanical properties:

Grade Yield Point
Mpa(ksi)		 Tensile Strength
Mpa(ksi)		 Elongation
A-1 ≥255(37) ≥415(60) ≥30%
C ≥275(40) ≥485(70) ≥30%



Tolerance for OD and WT(SA-450/SA-450M)
OD in(mm) + - WT in(mm) + -
＜1''(25.4) 0.10 0.10 ≤1.1/2''(38.1) 20% 0
1''～1.1''(25.4～38.1) 0.15 0.15 ＞1.1/2''(38.2) 22% 0
＞1.1/2''～＜2''(38.1～50.8 0.20 0.20
2''～＜2.1/2''(50.8～63.5) 0.25 0.25
2.1/2''～＜3''(63.5～76.2) 0.30 0.30
3''～＜4''(76.2～101.6) 0.38 0.38
4''～＜7.1/2''(101.6～190.5) 0.38 0.64
＞7.1/2～9''(190.5～228.6) 0.38 1.14



Surface Condition:

Pickling or shot blasting, Passivated, Black Phosphating.



Tests and Inspection:

Flattening Test

Flaring Test

Hardness Test

Hydrostatic or Nondestruction Electric Test ( Eddy Current and Ultrasonic Testing)





buy seamless medium-carbon steel boiler and superheater tubes manufacturercheap seamless medium-carbon steel boiler and superheater tubes suppliers



Reference Documents:

ASTM A450/A450M Specification for General Requirements for Carbon, Ferritic Alloy, and Austenitic Alloy Steel Tubes

ASTM A210 Seamless Medium Carbon Steel Heat Exchanger Tubes For Superheaters
