Torich ASTM A556 Gr A2 B2 C2 Seamless Boiler Tubes
Product Details
C2 Seamless Boiler Tubes
,ASTM A556 Seamless Boiler Tubes
,ASTM A556 Boiler Tubes
Torich ASTM A556 Seamless Cold Drawn Seamless Boiler Pipe
This standard is issued under the fixed designation A556/A556M；the number immediately following the designation indicate the year of original adoption or,in the case of revision,the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon indicates an editorial change since the last revision or reapproval.
Reference documents:
A450/A450M Specification for General Requirement for Carbon and Low Alloy Steel Tubes
E30 Test Methods for Chemical Analysis of Steel,Cast Iron,Open-Hearth Iron and Wrought Iron
1. Scope: This specification covers minimum-wall-thickness, seamless cold-drawn carbon steel tubes including bending into the form of U-tubes,if specified,for use in tubular feed water heaters.
Size : from 5/8 to 1 1/4-in 15.9-31.8mm
Outerside diameter,inclusive,with minimum wall thickness equal to or greater than 0.045inch (1.1mm)
Order Information:
OD: 5/8’’- 1 1/4” (15.9-31.8mm) WT: ≥ 0.045’’ 1.1mm OD Tolerance : 0,+20%
Chemical Requirement :
| Composition ,% | ||
| Grade A2 | Grade B2 | Grade C2 | |
| Carbon, max | 0.18 | 0.27 | 0.30 |
| Manganese | 0.27-0.63 | 0.29-0.93 | 0.29-1.06 |
| Phosphorus, max | 0.035 | 0.035 | 0.035 |
| Sulfur, max | 0.035 | 0.035 | 0.035 |
| Silicon , min | ... | 0.10 | 0.10 |
Hardness Requirement:
| Grade A2 | HR B 72 |
| Grade B2 | HR B 79 |
| Grade C2 | HR B 89 |
Tensile Requirements:
| Grade A2 | Grade B2 | Grade C2 | |
| Tensile strength,min,ksi(Mpa) | 47(320) | 60(410) | 70(480) |
| Yield Strength,min,ksi(Mpa) | 26(180) | 37(260) | 40(280) |
| Elongation in 2 in or 50min, min,%(longitudinal) | 35 |
30 | 30 |

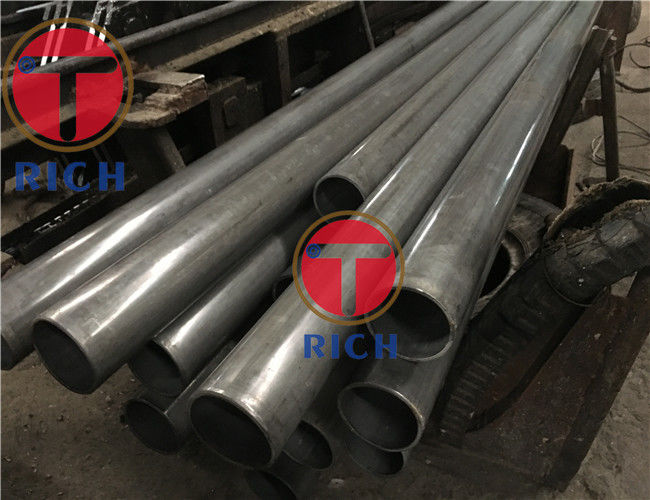

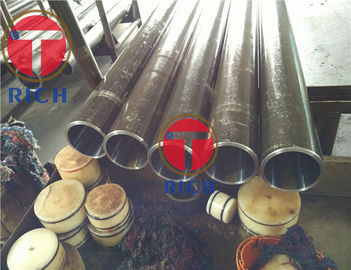

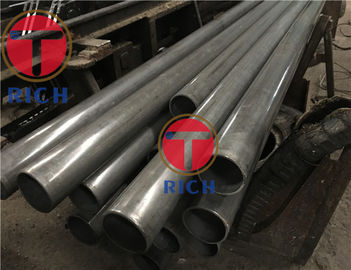

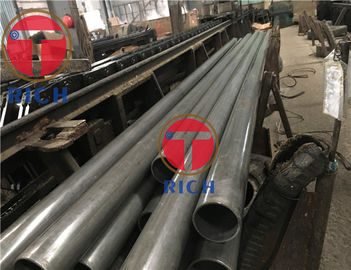

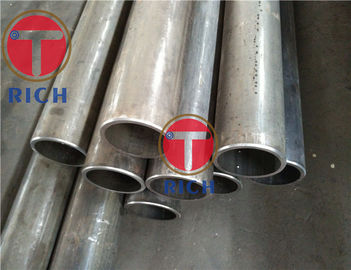

Picture:
QUALITY CONTROL
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.
A&Q
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample of SCM 440 42CrMo Mechanical Tubing for Reinforcement sleeve for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
-
