304L Seamless OD133mm Stainless Steel Round Pipe
Product Details
OD133mm stainless steel round pipe
,304L stainless steel round pipe
,TORICH seamless stainless steel pipe
TORICH DIN2462 Seamless Stainless Steel Round Pipe Tube 133x4x4113mm for Sputtering Target
Special requirements:
1. Quality requirements:
Tolerance of OD:132.8-133.5mm
Tolerance of ID:124.5-125.2mm Tolerance of Length:-0/+5mm
Ellipticity: Roundness deviation≤0.10mm
Straightness deviation: Overall length direction≤0.5mm
2. Appearance requirements:
The inner and outer surface of the steel pipe shall be free from visible cracks, scabs and deformation caused by bumping bow,
and the surface roughness Ra<32um.
The outer end shall be free from deformation, elliptical notch and other defects, and the pipe body shall be free from pits
(pits deeper than 0.1mm are not allowed on the inner wall of the steel pipe),inclusions and other defects. There shall be no scratch (0.1mm).
Dirt on the inner hole: there shall be no oil pollution inside and outside the steel pipe or dirt and rust that can not be removed by fine sandpaper.
3. Packing requirements:
Casing cap at both ends of steel pipe, woven bag packing
4. Requirements for lettering:
TP304L 138mm*4.4mm HEAT NO:×××
Note:(The size is only used ink-jet printing, the size of ink-jet printing should also be written on the outer package, not the length)
Application:
Planar Sputtering Target,
Alloy Sputtering Target
Cylindrical Ag alloy Sputtering Target
Metal Single Crystals
Quick Details:
| Standard | DIN2462 |
| Grade | 304L |
| Specification | 133*4*4113mm |
| Tolerance of OD | 132.8-133.5mm |
| Tolerance of ID | 124.5-125.2mm |
| Tolerance of Length | -0/+5mm |
| Ellipticity | Roundness deviation≤0.10mm |
| Straightness deviation | Overall length direction≤0.5mm |

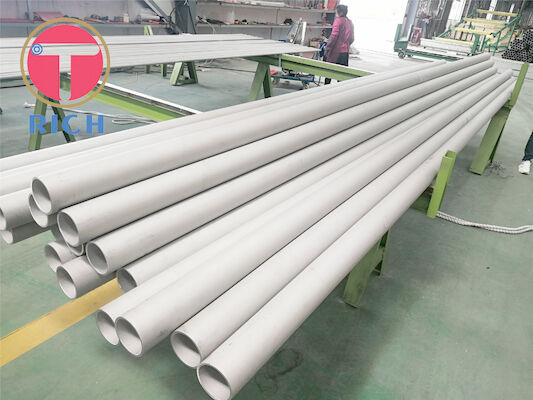

Product Pictures
-
