E355 En10305 Round OD5MM Carbon Steel Seamless Pipe for Antifriction Bearings
Basic Properties
Place of Origin:
ZheJiang,CHINA
Brand Name:
TORICH
Certification:
ISO9001; ISO14001; TSI16949
Model Number:
EN10305 E215 E235 E355
Trading Properties
Minimum Order Quantity:
3 tons
Price:
negotiable
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
60000 Ton per year
Product Summary
E355 En10305 Round OD5MM Carbon Steel Seamless Pipe for Antifriction Bearings Product Discription for E355 En10305 Round OD5MM Carbon Steel Seamless Pipe Producsts Name E355 En10305 Round OD5MM Carbon Steel Seamless Pipe Technical Standard EN10305 Steel Grade E215,E235,E355, other materials upon ...
Product Details
Highlight:
en10305 carbon steel seamless pipe
,e355 carbon steel seamless pipe
,OD5MM Carbon Steel Seamless Pipe
Product Name:
E355 En10305 Round OD5MM Carbon Steel Seamless Pipe For Antifriction Bearings
Product Keyword:
Precision Steel Pipe
Grade:
E215 E235 E355
Application:
Manufacture Of Antifriction Bearings. Ball Bearing, Roller Bearing, Bearing Rings Etc
Section Shape:
Round
OD:
5-100mm
WT:
1-15mm
Length:
Max12000mm
Technique:
Cold Drawn
Brand:
TORICH
Product Description
E355 En10305 Round OD5MM Carbon Steel Seamless Pipe for Antifriction Bearings
Product Discription for E355 En10305 Round OD5MM Carbon Steel Seamless Pipe
| Producsts Name | E355 En10305 Round OD5MM Carbon Steel Seamless Pipe |
| Technical Standard | EN10305 |
| Steel Grade | E215,E235,E355, other materials upon agreement with customers. |
| Certification | ISO9001; ISO14001; TSI16949 |
| Size Range | OD: 5-100 mm, WT: 1-15 mm. Lenth: max12000mm Cutting Length: according to customers PO. |
| Tube Inspection | Chemical analysis Tensile test Flattening test or Drift expanding test Dimensional inspection Visual examination NDT for verification of leaking tightness |
| Tube Application | Hydraulic And Pneumatic Power Systems, Hydraulic And Pneumatic Power |
| Production method
| Cold drawing on the seamless steel tubes, to reach high accuracy on the OD and WT tolerance, with certain heat treatment to achieve better mechanical properties for bending and pressure purposes |
| Deliver condition | +N After the final cold drawing operation the tubes are normalized in a controlled atmosphere Please specifiy the final heat treatment when sending the enquiry. |
Chemical composition
| Name | Number | C max | Si max | Mn max | P max | S max | Al min |
| E215 | 1.0212 | 0.10 | 0.05 | 0.70 | 0.025 | 0.015 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.015 | - |
| E355 | 1.0580 | 0.22 | 0.55 | 1.60 | 0.025 | 0.015 | - |
Permissible deviations of the product analysis from the specified limits given in Table 1
| Element | Specified limit of the cast analysis % by mass | Permissible deviation of the product analysis % by mass |
| C | ≤0.22 | +0.02 |
| Si | ≤0.55 | +0.05 |
| Mn | ≤1.60 | +0.10 |
| P | ≤0.025 | +0.005 |
| S | ≤0.015 | +0.003 |
| Al | ≤0.025 | -0.005 |
Requirements for the drift expanding test
| Steel grade | %increase of the diameter D for | ||
| Name | Number | T≤4mm | T>4mm |
| E215 | 1.0212 | 20 | 15 |
| E235 | 1.0308 | 18 | 12 |
| E355 | 1.0580 | 15 | 10 |

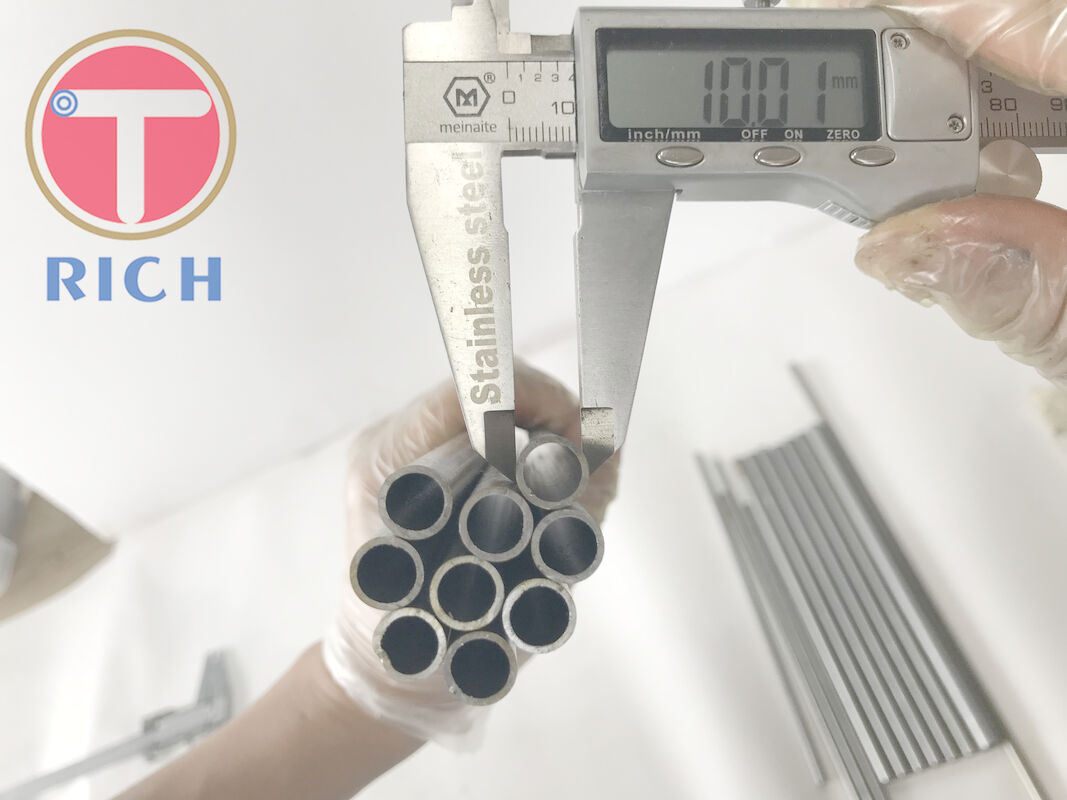

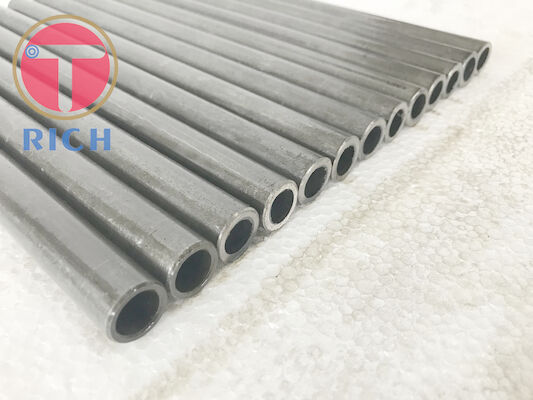

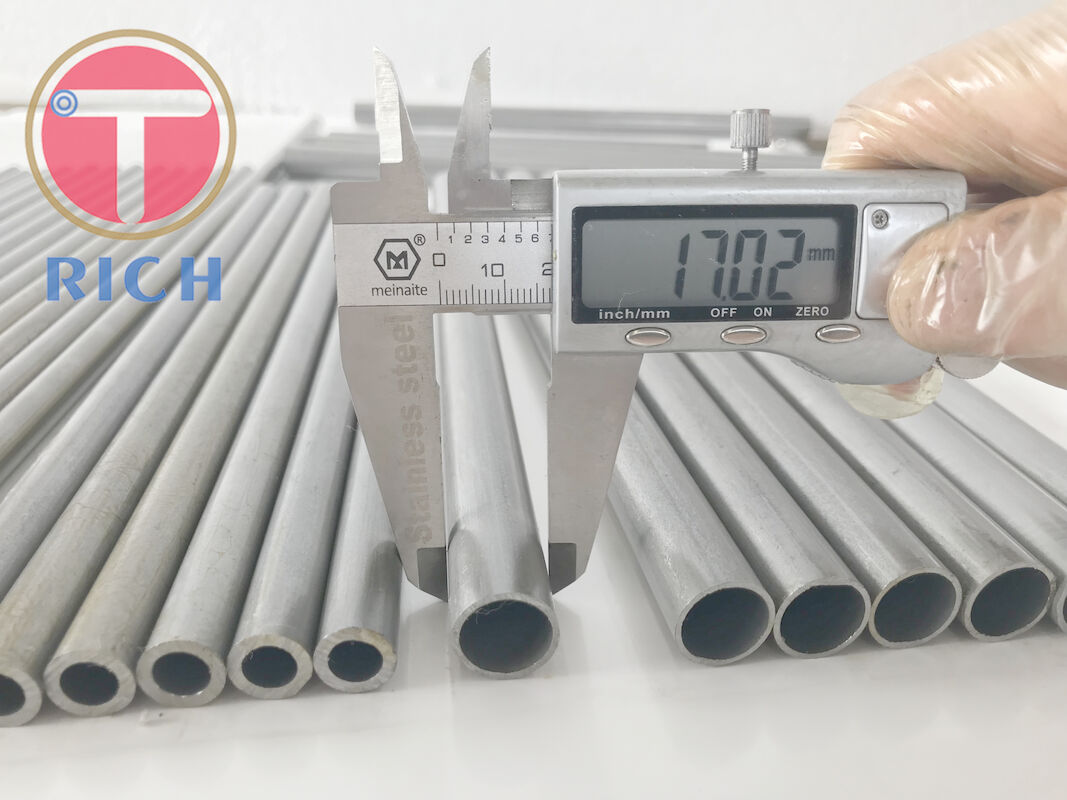

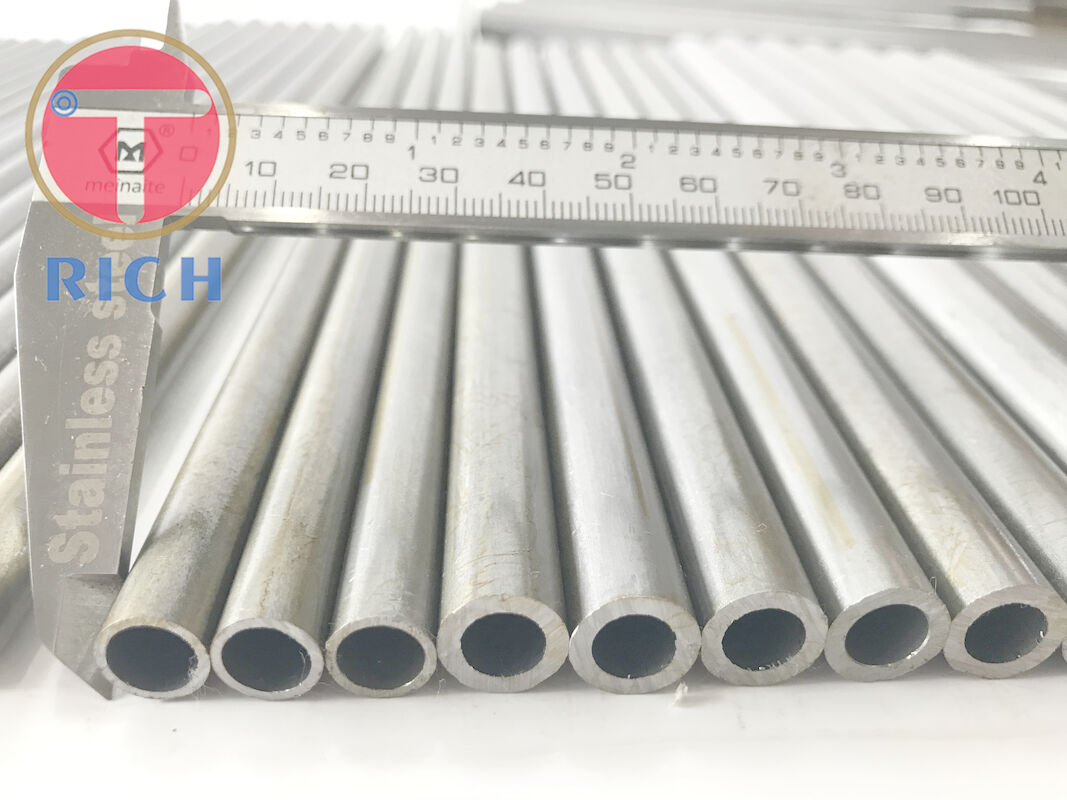

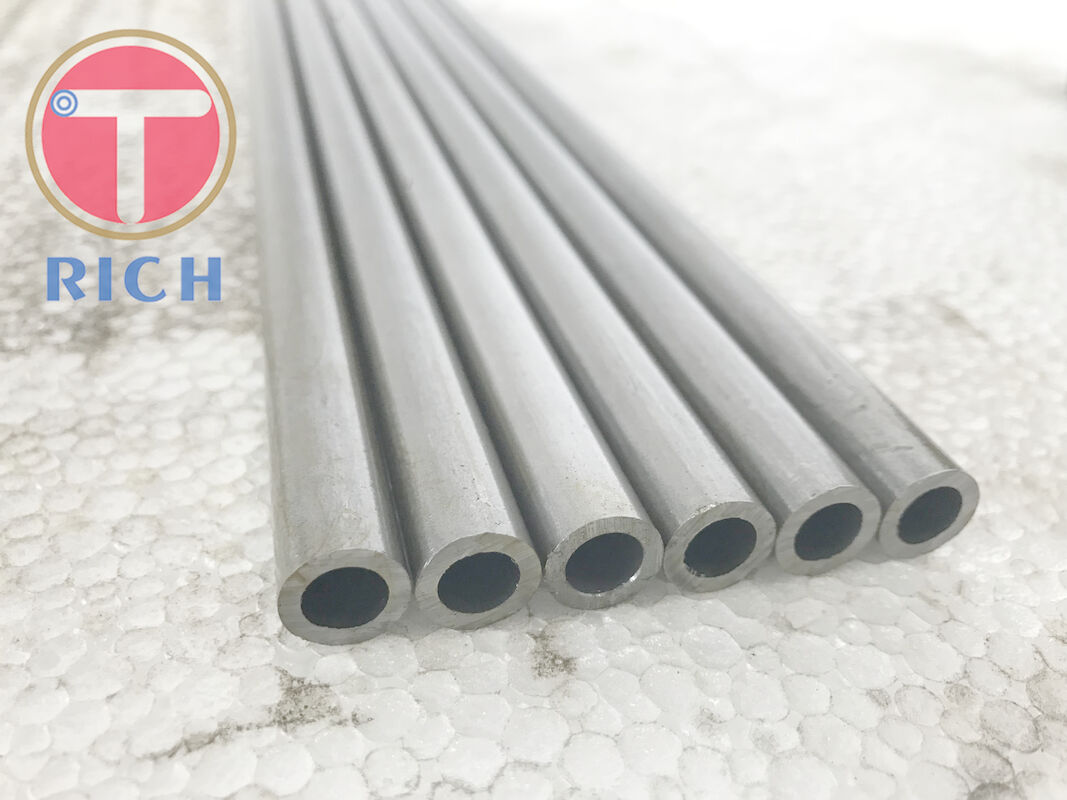

Product Pictures for E355 En10305 Round OD5MM Carbon Steel Seamless Pipe
Production Process for E355 En10305 Round OD5MM Carbon Steel Seamless Pipe
Production Workshop for E355 En10305 Round OD5MM Carbon Steel Seamless Pipe
Packaging&Shippping for E355 En10305 Round OD5MM Carbon Steel Seamless Pipe
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
