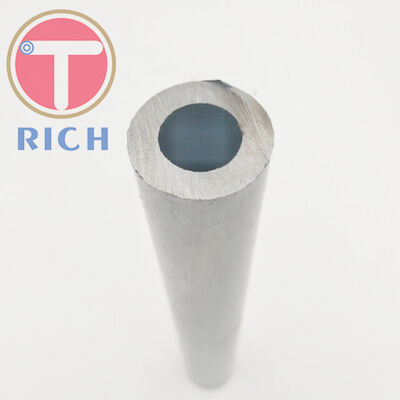

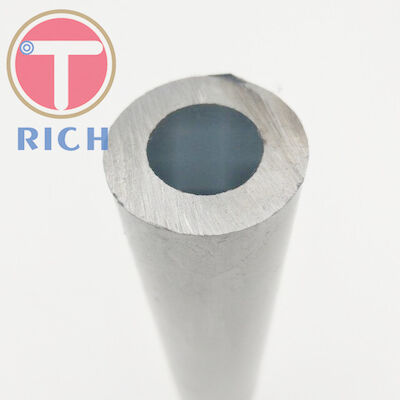

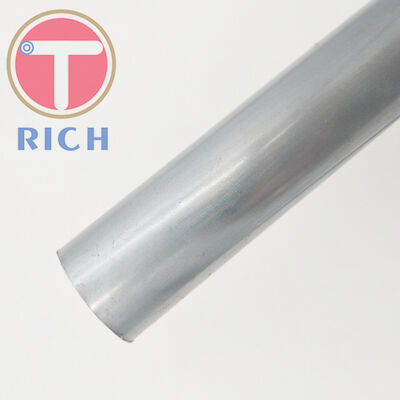

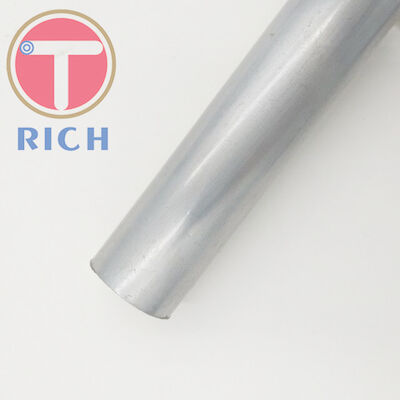

TORICH Astm 1020 Thick Wall Seamless Steel Pipe

Basic Properties
Place of Origin: Zhejiang China
Brand Name: TORICH
Certification: ISO 9001
Model Number: ASTM A519
Trading Properties
Minimum Order Quantity: 1 Ton
Price: USD 1000-2000 Per Ton
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Tons Per Month
Tags

thick wall steel pipe

thick wall steel tube

heavy wall steel pipe
Product Summary
ASTM 1020 SMALL DIAMETER THICK WALL SEAMLESS STEEL PIPE AISI 1020 Carbon Seamless Steel Pipe Tube Chemical Composition(%) Mechanical Property C Si Mn S P Cr Ni Cu Mo Yield Strength Tensile Strength ( σs ) ( σb ) 0.18~0.23 0.15-0.35 0.30~0.60 ≤0.050 ≤0.040 ≤0.25 ≤0.25 ≤0.25 - ≥414 (MPa) ≥483 (MPa) ...

Product Details

Highlight:

1020 thick wall seamless steel pipe

,

astm thick wall seamless steel pipe

,

TORICH Seamless Steel Pipe
Product Description

ASTM 1020 SMALL DIAMETER THICK WALL SEAMLESS STEEL PIPE





AISI 1020 Carbon Seamless Steel Pipe Tube



Chemical Composition(%) Mechanical Property
C Si Mn S P Cr Ni Cu Mo Yield Strength Tensile Strength
( σs ) ( σb )
0.18~0.23 0.15-0.35 0.30~0.60 ≤0.050 ≤0.040 ≤0.25 ≤0.25 ≤0.25 - ≥414 (MPa) ≥483
(MPa)
End Shape Beveled end, plain end, vanished, or adding plastic caps to protect the two ends as per customer's requirements
Surface Oiled, Galvanized, Phosphate etc
Treatment
Technique Cold drawn
Application 1. Automotive and mechanical pipes
2. Petroleum cracking pipes
3. High Pressure Boiler Pipe
4. Low and middle pressure fluid transportation pipeline
5. Chemical fertilizer equipment pipes
6. Heat exchanger pipes
Delivery 1. BK (+C) No heat treatment after last cold forming process.
Conditions 2. BKW (+LC) After last heat treatment there is a light finishing pass (cold drawing)
  3. BKS (+SR) After the final cold forming process the tubes are stress relieve annealed.
  4. GBK (+A) After the final cold forming process the tubes are annealed in a controlled atmosphere.
  5. NBK (+N) After the final cold forming process the tubes are annealed above the upper transformation point in acontrolled atmosphere.
Package 1. Bundle Packing.
2. Plain end or vanished as per customer's request.
3. Wrapped in waterproof paper.
4. Sackcloth with several steel strips.
5. Pack in heavy tri-wall boxes.
