SAE 1020 Shock Absorber 10mm Carbon Steel Seamless Tubing
Product Details
Shock Absorber sae 1020 tubing
,10mm Carbon Steel Seamless Tubing
,SAE1020 Carbon Steel Seamless Tubing
SAE 1020 carbon steel for automobile outer tube
Cabon steel grade SAE 1020 is a low hardness and low tensile strength alloy. The Brinell hardness of the SAE 1020 Steel Tube ranges between 119 – 235, whereas its tensile strength is between 410 MPa to 790 MPa. Though it lacks some of the characteristics of a conventional carbon steel grade, the SAE 1020 Steel Tube exhibits other important characteristics such as high strength, high machinability, high ductility as well as good weldability. A low carbon content in its chemistry makes the pipe resistant to flame hardening or to induction hardening.
Dimensions : ASTM, ASME and API
Size : 10mm OD to 76 mm OD
Wall Thickness : 1 mm to 8 mm
Length : Single Random, Double Random & Required Length
Schedules : SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules
Form : Round, Square, Rectangular, Hydraulic Etc
End : Plain End, Beveled End, Treaded
End Protection : Plastic Caps
Chemical composition(mass fraction)(wt.%)
| C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Cr | Ni |
|---|---|---|---|---|---|---|
| 0.18-0.23 | 0.07-0.6(a,b) | 0.3-0.6 | 0.03 | 0.05 | ||
| Mo | Al | Cu | Nb | Ti | V | Ce |
| N | Co | Pb | B | Other |
Mechanical Properties
| Yield Rp0.2 (MPa) | Tensile Rm (MPa) | Impact KV/Ku (J) | Elongation A (%) | Reduction in cross section on fracture Z (%) | As-Heat-Treated Condition | Brinell hardness (HBW) |
|---|---|---|---|---|---|---|
| 844 (≥) | 885 (≥) | 24 | 31 | 24 | Solution and Aging, Annealing, Ausaging, Q+T,etc | 132 |

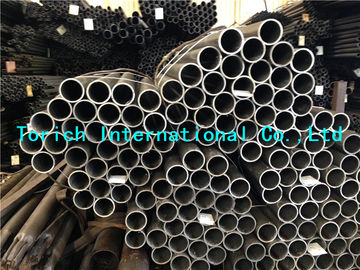

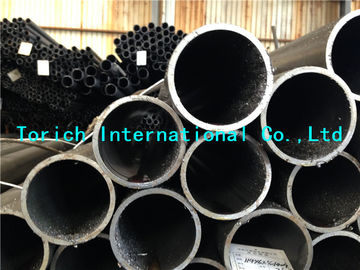

Product Pictures:
Company Introduction:
Packaging and Delivery:
FAQ:
Q: Are you trading company or manufacturer?
A: We are a professional steel pipes materials manufacturer.
Q: How long is your delivery time?
A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.
Q: Do you provide free sampleas?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
-
