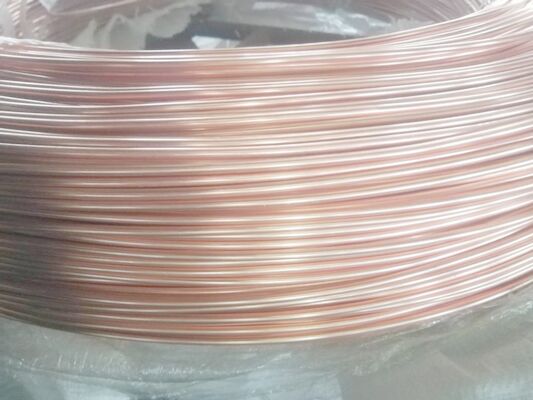

ASTM A254 BHG1 0.28mm Refrigerator Tube
Basic Properties
Place of Origin:
Zhejiang,China
Brand Name:
TORICH
Certification:
ISO9001,ISO14001
Model Number:
ASTM A254
Trading Properties
Minimum Order Quantity:
10 TONS
Payment Terms:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:
5000 ton per year
Product Summary
ASTM A254 BHG1 Refrigerator Tube Welded Steel Tube 1. Standard ASTM A254 Copper-brazed steel tubing SAE J526 Welded low-carbon tubing EN10305-6 Welded cold drawn tubes from hydraulic and pneumatic power systems 2. Steel Grade BHG1, SPCC, SPCD, SPCEN, ST14, ST15, ST16, DC04, DC05, DC06 3. Heat ...
Product Details
Highlight:
BHG1 Refrigerator Tube
,ASTM A254 Refrigerator Tube
,0.28mm Refrigerator Tube
Product Name:
ASTM A254 BHG1 Refrigerator Tube Welded Steel Tube
Keyword:
Refrigerator Tube
Material:
ASTM A254 BHG1
Shape:
Round
Technique:
ERW
Usage:
Refrigeration
Surface:
Copper Coating
Length:
Max12000mm
OD:
0.28-10mm
WT:
0.08-1mm
Product Description
ASTM A254 BHG1 Refrigerator Tube Welded Steel Tube
1. Standard
ASTM A254 Copper-brazed steel tubing
SAE J526 Welded low-carbon tubing
EN10305-6 Welded cold drawn tubes from hydraulic and pneumatic power systems
2. Steel Grade
BHG1, SPCC, SPCD, SPCEN, ST14, ST15, ST16, DC04, DC05, DC06
3. Heat Treatment
BK or NBK
4. Specification
| O D/ mm | 4 | 4.2 | 4.76 | 6 | 6.35 | 7.8 | 8 | 9.52 |
| W T | 0.5-1.0mm (0.5-0.7mm common WT) | |||||||
| Tolerance | ±0.05mm | |||||||
| Length | 180Kg/coil; 700-1000m/coil; per customer’s request | |||||||
5. Production Process
Tube welding– Cold drawing (reduce diameter)– Annealing in Protected Atmosphere— Cleaning-- Leakage detection– Zinc/Copper Plating– Keep pressure (Airtightness) – Packing
6. Surface Treatment
| Coating | Thickness | Salt spray test duration |
| Copper/White Zinc/Colour-Zinc | 8μm | 72h |
| PVF | 8μm+20μm | 1000-2000h |
| Military Green Zinc | 8μm | 180h |
| GALF | 8μm+20μm | 1000-2000h |
| Nylon | 8μm+40μm | 180h |

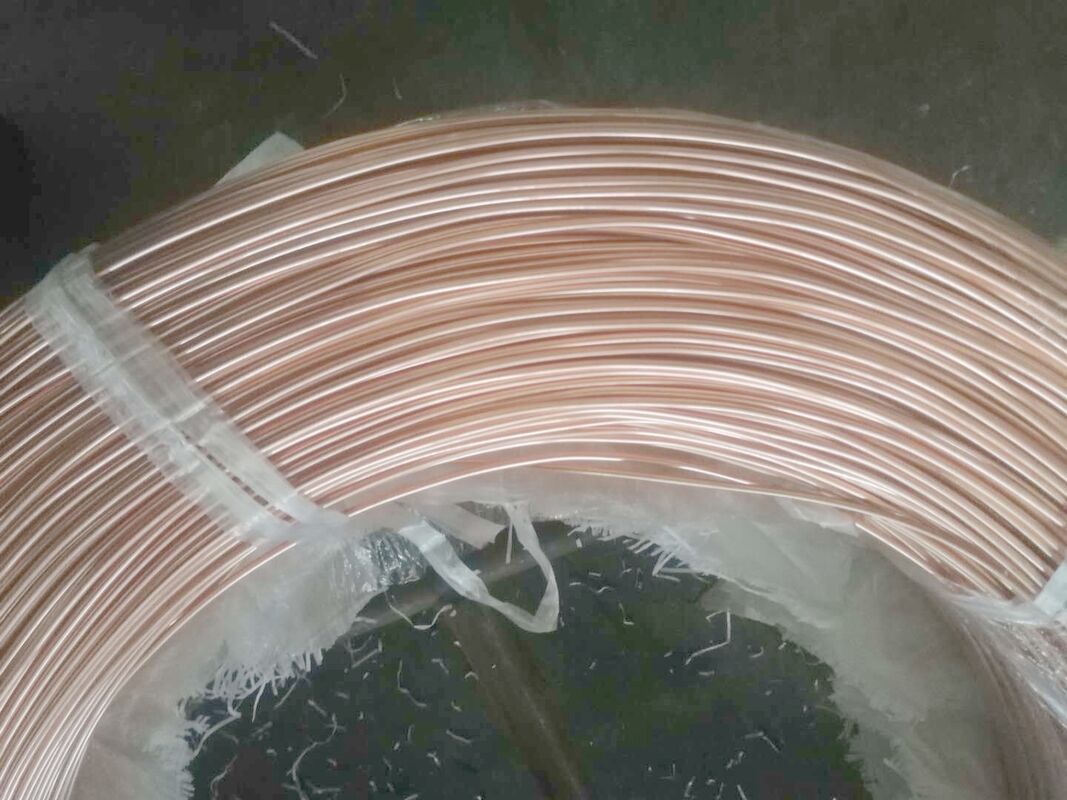

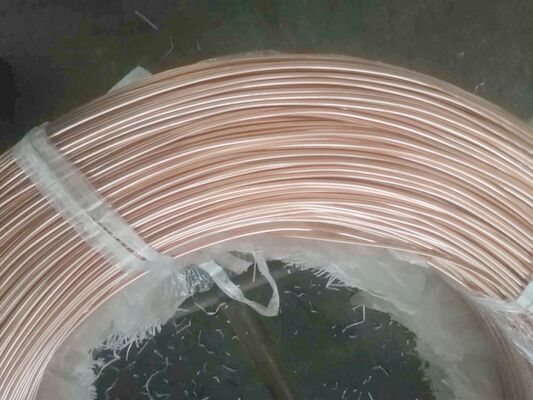

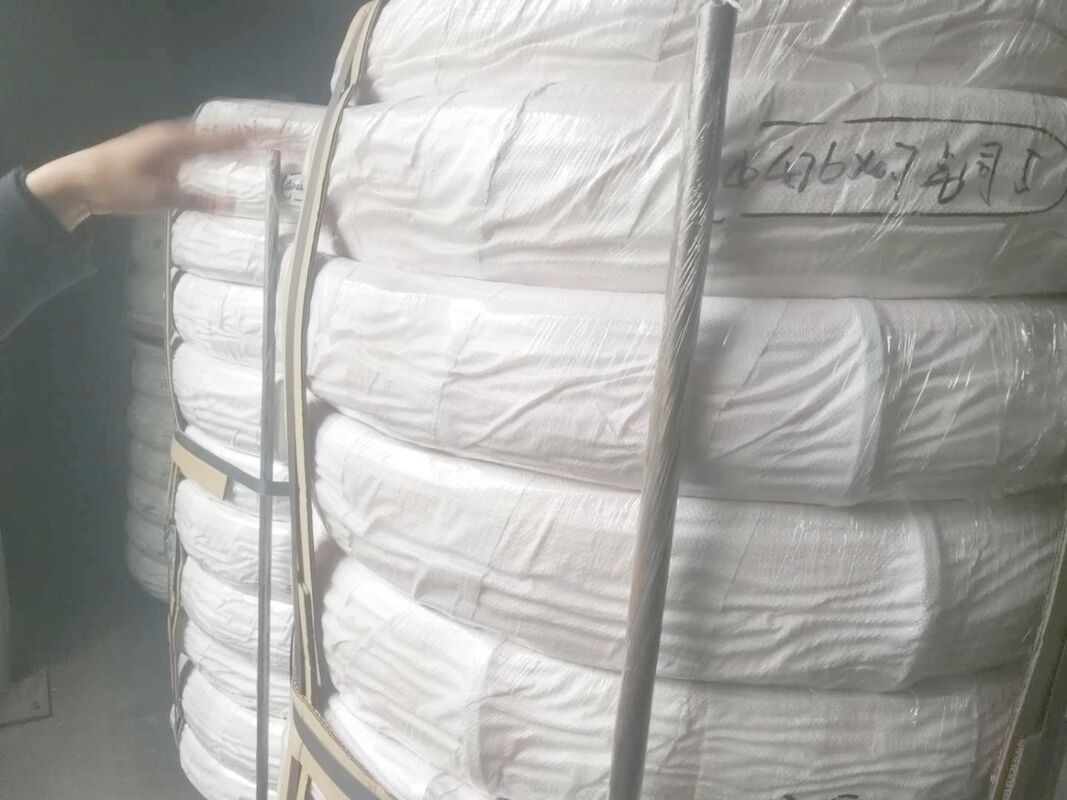

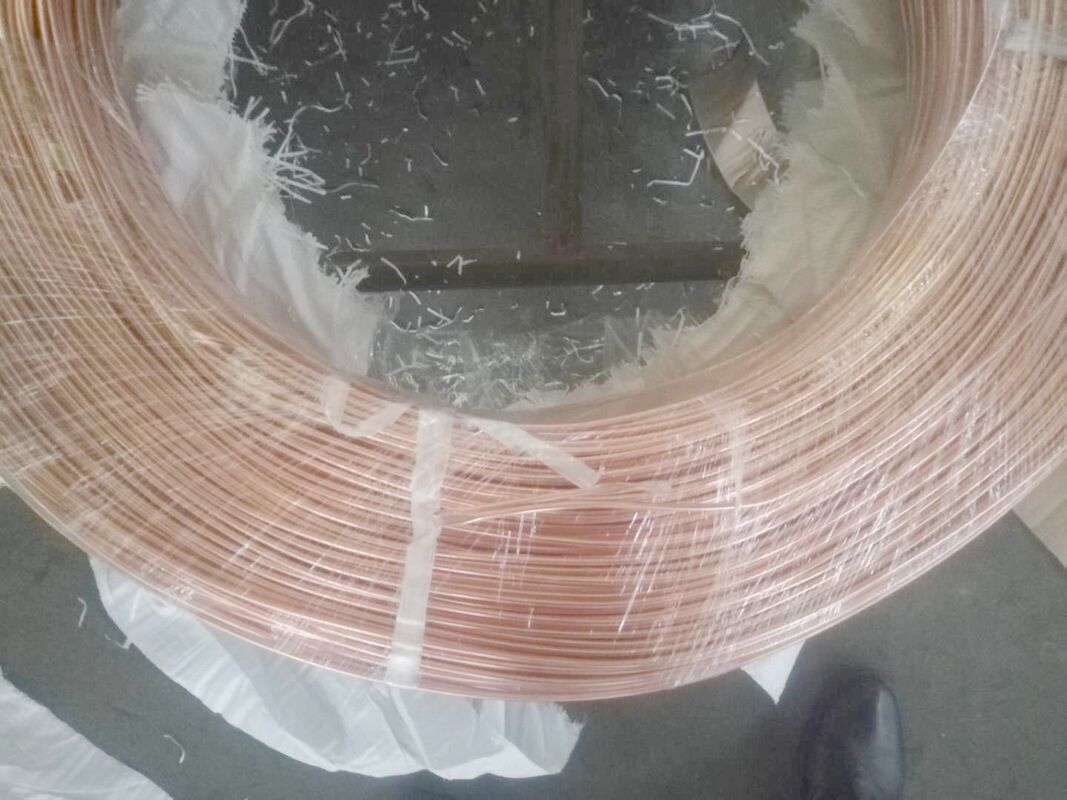

7. Packing: In coil, in wooden box with seaworthy packing
8. Application
1) Fluid carrying system for automobiles
2) Fluid carrying system for refrigerators
3) Wire condenser for chillers, showcase
4) Vending machine, ice machine etc.
