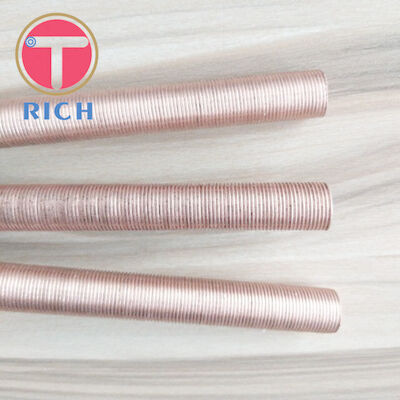

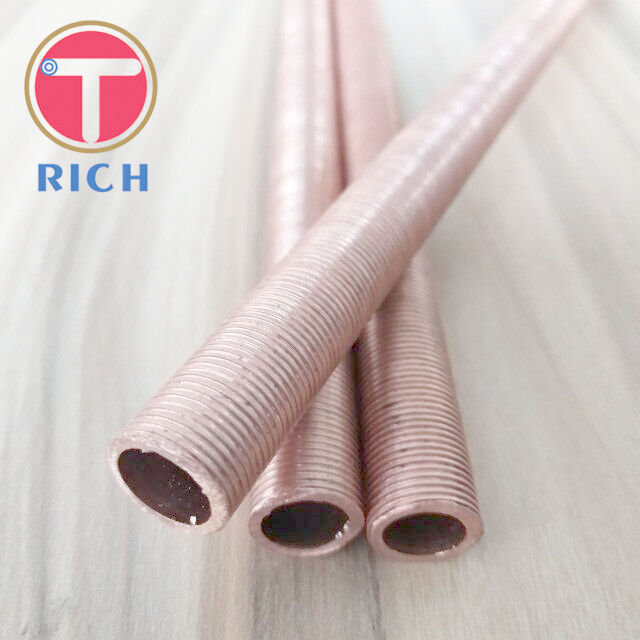

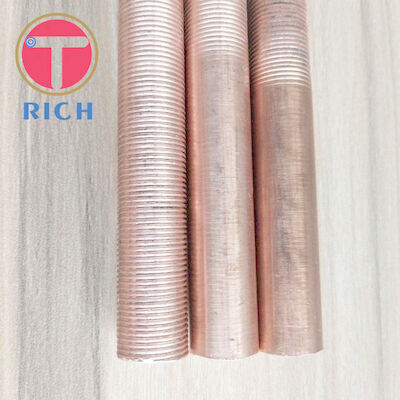

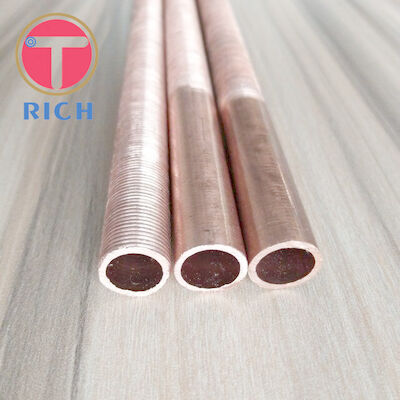

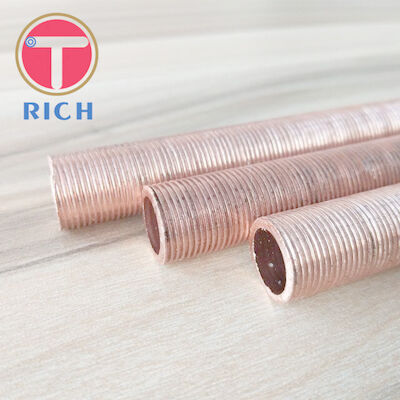

Copper Coated Seamless 8mm Od Low Finned Tube
Basic Properties
Place of Origin:
Zhejiang,CN
Brand Name:
TORICH
Certification:
ISO 9001,ISO14001,TS16949
Model Number:
GB/T19447 C10200
Trading Properties
Minimum Order Quantity:
500 KGS
Price:
negotiable
Payment Terms:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:
50000 TONS PER YEAR
Product Summary
Copper Coated Seamless Low Finned Tube PRODUCT DESCRIPTION: Keyword: Copper Low Fin Tube Material: C10200, C11000 Etc Fin Thickness: 0.1mm - 2mm Tube OD: 8mm - 55mm Length: max 12m Application: For Boiler And Heat Exchanger End Protector: Plain End / Beveled End Surface: Copper Coated Test and ...
Product Details
Highlight:
Seamless low finned tube
,8mm od low finned tube
,od 8mm low finned tube
Product Name:
Copper Coated Seamless Low Finned Tube
Keyword:
Low Finned Tube
Shape:
Round
Application:
For Boiler And Heat Exchanger
Material:
C10200, C11000 Etc
Surface:
Copper Coated
Length:
Max 12000mm
Tube OD:
8-55mm
Fin Thickness:
0.1-2mm
Brand:
TORICH
Product Description
Copper Coated Seamless Low Finned Tube
PRODUCT DESCRIPTION:
Keyword: Copper Low Fin Tube
Material: C10200, C11000 Etc
Fin Thickness: 0.1mm - 2mm
Tube OD: 8mm - 55mm
Length: max 12m
Application: For Boiler And Heat Exchanger
End Protector: Plain End / Beveled End
Surface: Copper Coated
Test and Inspection: Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test etc
QUALITY CONTROL:
Incoming Raw Material Inspection
Raw Material Segregation to avoid steel grade mix-up
Heating and Hammering End for Cold Drawing
Cold Drawing and Cold Rolling, on line inspection
Heat Treatment, +A, +SRA, +LC, +N, Q+T
Straightening-Cutting to specified length-Finished Measuring Inspection
Mechanical testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
Packing and Stocking
Quick Detail:
Low Finned Tubes add short fin in the tube wall that greatly increase the surface area over smooth tube. The fins are formed into the tube wall so the outside diameter of the fins are not larger than the pre-finned smooth tube.Energy Transfer is solely focused on producing the largest variety and most complete solutions for finned tubing. Low finned tubes can be provided with a smooth or rifled tube inside surface.
Our Company
TorichInternational Co.,Ltd is a professional manufacturer and exporter of steel pipes materials. It is an international marketing and sales company specialized in steel tubes.Our main products:Seamless Steel Tubes with Carbon and Alloy Steel Grade, Welded Precision Steel Tubes,DOM Steel Tubes, Seamless & Welded Stainless Steel Tubes with Nickel and Alloy Steel Tube.Our factory was established since 1997, with the name of Haiyan SanxinSteel Pipe Co., Ltd. The factories` technicians are of great engineering experience in steel pipe industry for more than 20 years, who are in great command of product
| Plain tube (mm) | Finned section dimensions (mm) | Ratio | De | |||
| D×t | Tp | dd | dr | di | η | mm |
| 19×2 | 0.8 | 18.8 | 17 | 134 | 2.8 | 17.9 |
| 19×2 | 1 | 18.8 | 16.8 | 13.4 | 2.5 | 17.8 |
| 19×2 | 1.25 | 18.8 | 16.6 | 13 | 2.2 | 17.8 |
| 19×2 | 1.5 | 18.8 | 16.4 | 13 | 2 | 17.7 |
| 19×2 | 2 | 18.8 | 23 | 13 | 1.7 | 17.5 |
| 25×2.5 | 0.8 | 24.8 | 22.6 | 18.8 | 2.8 | 23.9 |
| 25×2.5 | 1 | 24.8 | 22.3 | 18.8 | 2.75 | 23.7 |
| 25×2.5 | 1.25 | 24.8 | 22.3 | 18 | 2.5 | 23.6 |
| 25×2.5 | 1.5 | 24.8 | 22.3 | 18 | 2.2 | 23.5 |
| 25×2.5 | 2 | 24.8 | 22 | 18 | 1.8 | 23.4 |
| 25×2.5 | 2.5 | 24.8 | 22 | 18 | 10.6 | 23.3 |
| D------Outside diameter of plain end section | ||||||
| Dof----Diameter of top fins | ||||||
| Dr-----Root diameter of finned section | ||||||
| Di-----Inside diameter of finned section | ||||||
| T------Wall thickness of plain end section | ||||||
| Tp-----Fin pitch | ||||||
| De----Equivalent diameter of finned tube | ||||||
| L------Plain tube end length | ||||||
