Product Description

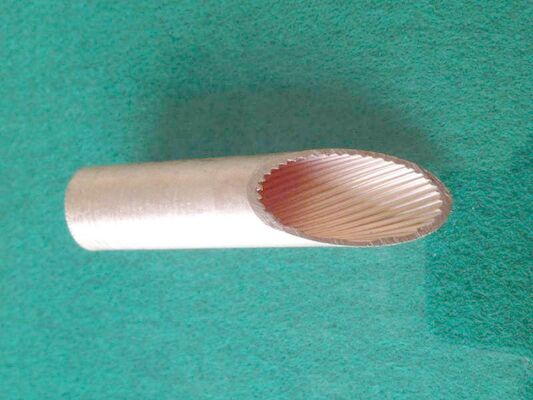

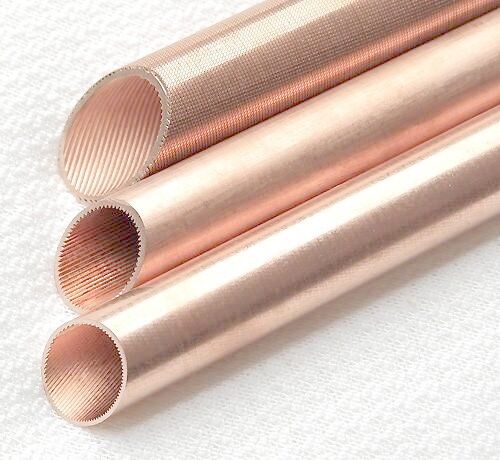

C12200 Inner Grooved Copper Tube
1) Standard Complied: ASTM B-68, GB/T 20928
2) Grade: C12200
3) Temper: soft drawn or light soft drawn
4) Unit Weight: 34kg -270 kg
5) Outside diameter: 5.0mm - 16.00mm
6) Inner diameter: 4.3mm - 14.22mm
7) Bottom wall thickness: 0.20mm - 0.75mm
8) Total wall thickness: 0.35mm - 0.83mm
9) Fin Groove Depth: 0.15mm - 0.33mm
O.D inch(mm) |
BWT inch(mm) |
Number of fins |
FIN HEIGHT (mm) |
Helix Angle |
Weight (kg/m) |
(7.0) | 0.330 | 60 | 0.203 | 12 | 0.0781 |
5/16 (7.94) | 0.305 | 60 | 0.203 | 18 | 0.0804 |
3/8 (9.52) | 0.305 | 60 | 0.203 | 18 | 0.0967 |
3/8 (9.52) | 0.330 | 60 | 0.203 | 18 | 0.0989 |
3/8 (9.52) | 0.356 | 60 | 0.203 | 18 | 0.1027 |
3/8 (9.52) | 0.381 | 60 | 0.203 | 18 | 0.1205 |
3/8 (9.52) | 0.406 | 60 | 0.203 | 18 | 0.1176 |
1/2 (12.7) | 0.381 | 60 | 0.254 | 18 | 0.1622 |
1/2 (12.7) | 0.406 | 60 | 0.254 | 18 | 0.1711 |
1/2 (12.7) | 0.432 | 60 | 0.254 | 18 | 0.1792 |
1/2 (12.7) | 0.456 | 60 | 0.254 | 18 | 0.1887 |
1/2 (12.7) | 0.483 | 60 | 0.254 | 18 | 0.2064 |
5/8 (15.88) | 0.498 | 75 | 0.305 | 23 | 0.2695 |
5/8 (15.88) | 0.510 | 75 | 0.305 | 23 | 0.2695 |
5/8 (15.88) | 0.510 | 75 | 0.305 | 25 | 0.3049 |
5/8 (15.88) | 0.584 | 75 | 0.305 | 25 | 0.3240 |
5/8 (15.88) | 0.635 | 60 | 0.305 | 27 | 0.3503 |
5/8 (15.88) | 0.715 | 60 | 0.305 | 27 | 0.3726 |
Feature:
1) Leak proof
2) Long lasting
3) Accurate groove designs
4) Corrosion resistant
5) High metallurgical strength
6) High temperature resistant
7) High pressure resistant
8) Excellent heat transfer property
9) Good electrical conductivity, etc.
Applications :
The continuous or discontinuous spiral groove on inner surface of copper tube can increase contact area, change the flow type of refrigerant in the tube. The outer surface of copper tube can also be processed with corrugate spiral groove to expand range of use. It is suitable for heat exchanger in home air conditioner or dry evaporator in central conditioner.
Air-conditioner
Heat exchanger
Central air-conditioner dry evaporator
Heat pipe radiator of electronic products
Solar equipments
Water-cooled screw chilled water units
