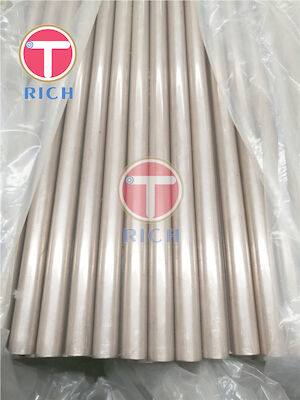

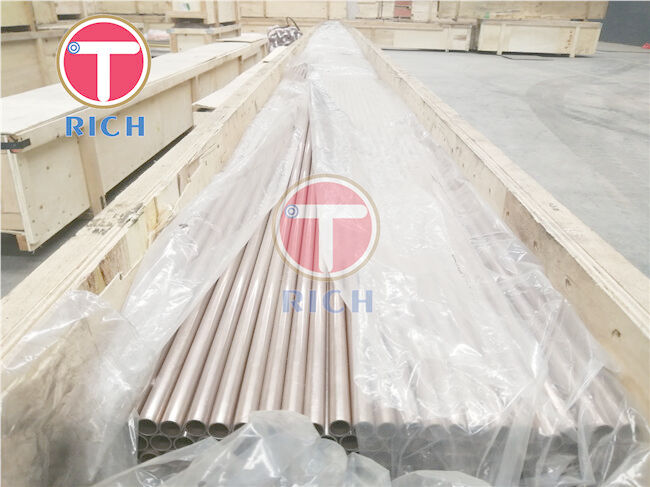

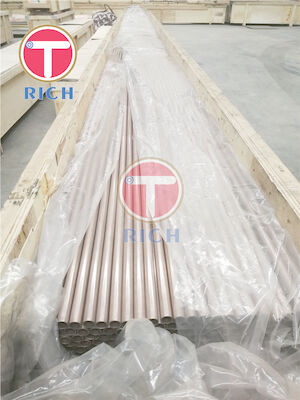

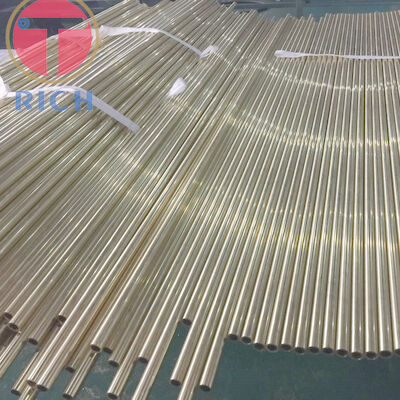

OD12mm ASTM B111 C70400 C70600 Alloy Steel Pipe
Product Details
C70600 Alloy Steel Pipe
,C70400 Alloy Steel Pipe
,OD12mm Alloy Steel Pipe
ASTM B111 C70400 C70600 Copper and Copper-Alloy Seamless Tube for Condenser Tubes
| Standard | ASTM B111, GB/T8890, BS2871, EN12451, JIS H3300 |
| Material | C70400, C70600, C71500, C71640 |
| Size | WT: 0.5-15mm; OD: 5-80mm; Length: 500-25000mm |
| Applications | For Condenser Tubes and Ferrule Stock |
| Test | Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test etc |
Chemical Composition
| Steel Grade | Cu | Sn | Al | As | Ni | Fe | Mn | Pb | Zn |
| C70400 | Remain | - | - | - | 4.8-6.2 | 1.3-1.7 | 0.3-0.8 | 0.05 max | 1.0 max |
| C70600 | Remain | - | - | - | 9.0-11.0 | 1.0-1.8 | 1.0 max | 0.05 max | 1.0 max |
| C71500 | Remain | - | - | - | 29.0-33.0 | 0.4-1.0 | 1.0 max | 0.05 max | 1.0 max |
| C71640 | Remain | - | - | - | 29.0-32.0 | 1.7-2.3 | 1.5-2.5 | 0.05 max | 1.0 max |
Mechanical Properties
| Steel Grade | Temper | Tensile Strength Mpa | Yeild Strength Mpa | Elongation % | Expansion Requirement % | Grain Size mm | ||
| Min | Min | Max | Min | Min | Min | Max | ||
| C70400 | 061 | 260 | 85 | - | - | 30 | 0.01 | 0.045 |
| H55 | 275 | 205 | - | - | 20 | - | - | |
| C70600 | 061 | 275 | 105 | - | - | 30 | 0.01 | 0.045 |
| H55 | 310 | 240 | - | - | 20 | - | - | |
| C71500 | 061 | 360 | 125 | - | - | 30 | 0.01 | 0.045 |
| HR50A | 495 | 345 | - | 12 | 20 | - | - | |
| HR50B | 495 | 345 | - | 15 | 20 | - | - | |
| C71640 | 061 | 435 | 170 | - | - | 30 | 0.01 | 0.045 |
| HR50 | 560 | 400 | - | - | 20 | - | - | |
Referenced Documents:
B153 Test method for expansion (Pin Test) of copper and copper alloy pipe and tubing.
B154 Test method for mercurous nitrate test for copper alloys.
B170 Specification for oxygen-free electrolytic copper refinery shapes.
B224 Classification of Coppers.
B846 Terminology for copper and copper alloy.
B858 Test method for ammonia Vapor for determining susceptibility to stress corrosion cracking in copper alloys.
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
-
