EN10216-2 DIN17175 TORICH Cold Drawn Seamless Tube
Basic Properties
Place of Origin:
ZheJiang,CHINA
Brand Name:
TORICH
Certification:
ISO9001; ISO14001; TSI16949
Model Number:
EN10216-2
Trading Properties
Minimum Order Quantity:
5 Tons
Price:
negotiable
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
5000 Ton per year
Product Summary
EN10216-2 Seamless carbon and low-alloy steel tubes for pressure purposes Standard: EN10216-2 Applications: For manufacturing pipelines of boilers, vessel equipment Production Method: Seamless Cold Drawn Size range: O.D.:5-420mm W.T.:0.5-50mm L:max12000mm WT Tolerance: +/-0.15mm Delivery Condition: ...
Product Details
Highlight:
DIN17175 cold drawn seamless tube
,EN10216-2 cold drawn seamless tube
,TORICH cold drawn seamless tube
Product Name:
EN10216-2, DIN17175 Seamless Carbon And Low-alloy Steel Tubes
Product Keyword:
Seamless Carbon And Low-alloy Steel Tube
Application:
For Manufacturing Pipelines Of Boilers, Vessel Equipment
Secondary:
Non-secondary
Section Shape:
Round
Technology:
Cold Drawn
Type:
Seamless
Product Description
EN10216-2 Seamless carbon and low-alloy steel tubes for pressure purposes
Standard: EN10216-2
Applications: For manufacturing pipelines of boilers, vessel equipment
Production Method: Seamless Cold Drawn
Size range: O.D.:5-420mm W.T.:0.5-50mm L:max12000mm
WT Tolerance: +/-0.15mm
Delivery Condition: +Cc +LCc +SR +Ad +N NBK
Steel Grade and Chemical Compositions:
| Steel grades | CHEMICAL COMPOSITION (LADLE ANALYSIS) | |||||||||||||
| C% max | Si% max | Mn% max | P% max | S% max | Cr% max | Mo% max | Ni% max | Al% min | Cu% max | Nb% max | Ti% max | V% max | Cr+ Cu+ Mo+ Ni% MAX | |
| P195GH | 0,13 | 0,35 | 0,70 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | >= 0,020 | 0,30 | 0,010 | 0,040 | 0,02 | 0,70 |
| P235GH | 0,16 | 0,35 | 1,20 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | >= 0,020 | 0,30 | 0,010 | 0,040 | 0,02 | 0,70 |
| P265GH | 0,20 | 0,40 | 1,40 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | >= 0,020 | 0,30 | 0,010 | 0,040 | 0,02 | 0,70 |
| 16Mo3 | 0,12- 0,20 | 0,35 | 0,40- 0,70 | 0,025 | 0,020 | 0,30 | 0,25- 0,35 | 0,30 | >= 0,020 | 0,30 | - | - | - | - |
| 14MoV6-3 | 0,10- 0,15 | 0,15- 0,35 | 0,40- 0,70 | 0,025 | 0,020 | 0,30- 0,60 | 0,50- 0,70 | 0,30 | >= 0,020 | 0,30 | - | 0,22-0,28 | - | - |
| 13CrMo4-5 | 0,15 | 0,50- 1,00 | 0,30- 0,60 | 0,025 | 0,020 | 1,00- 1,50 | 0,45- 0,65 | 0,30 | >= 0,020 | 0,30 | - | - | - | - |
| 10CrMo9-10 | 0,10- 0,17 | 0,35 | 0,40- 0,70 | 0,025 | 0,020 | 0,70- 1,15 | 0,40- 0,60 | 0,30 | >= 0,020 | 0,30 | - | - | - | - |
Mechanical Proporties:
| Mechanical properties | |||||||||||||
| Pipe types | Steel grades | Mechanical properties during tensile testing in room temperature | Resilience | ||||||||||
| Boiler P195GH, P235GG P265GH 16Mo3 14MoV6-3 13CrMo4-5 10CrMo9-10 Wg PN-EN 10216-2 | Upper yield limit or yield strength Re or R0,2 for wall thickness of t min | Tensile strength Rm | Elongation A min% | Minimum energy average absorbed KVJ at the temperature of 0°C | |||||||||
| T<=16 | 16<T<=40 | 40<t<=60 | 60<T<=60 | I | T | ||||||||
| MPa | MPa | MPa | MPa | MPa | I | t | 20 | 0 | -10 | 20 | 0 | ||
| P195GH | 195 | - | - | - | 320- 440 | 27 | 25 | - | 40 | 28 | - | 27 | |
| P235GH | 235 | 225 | 215 | - | 360- 500 | 25 | 23 | - | 40 | 28 | - | 27 | |
| P265GH | 265 | 255 | 245 | - | 410- 570 | 23 | 21 | - | 40 | 28 | - | 27 | |
| 16Mo3 | 280 | 270 | 260 | - | 450- 600 | 22 | 20 | 40 | - | - | 27 | - | |
| 14MoV6-3 | 320 | 320 | 310 | - | 460- 610 | 20 | 18 | 40 | - | - | 27 | - | |
| 13CrMo4-5 | 290 | 290 | 280 | - | 440- 590 | 22 | 20 | 40 | - | - | 27 | - | |
| 10CrMo9-10 | 280 | 280 | 270 | - | 480- 630 | 22 | 20 | 40 | - | - | 27 | - | |

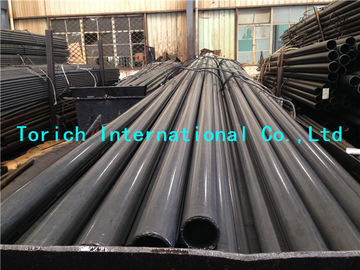

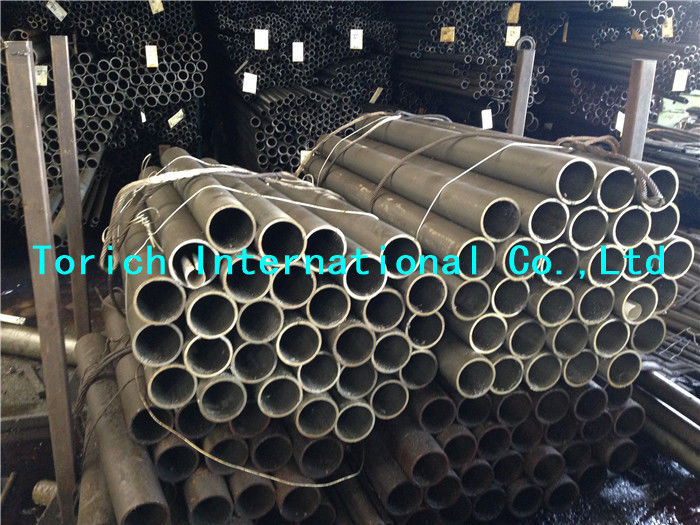

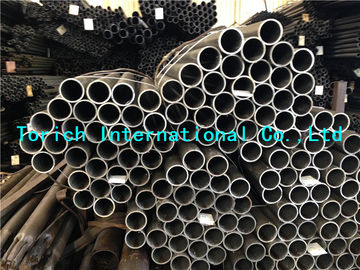

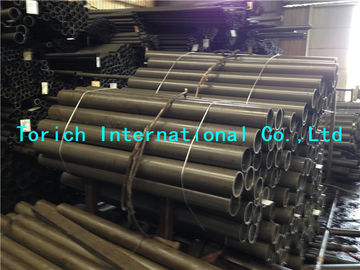

Products Show:
FAQ
Q: Are you trading company or manufacturer?
A: We are a professional steel pipes materials manufacturer.
Q: How long is your delivery time?
A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.
Q: Do you provide free samples?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
