ASTM A106 A53 API 5L TORICH Carbon Seamless Pipe
Basic Properties
Place of Origin:
ZheJiang,CHINA
Brand Name:
TORICH
Certification:
ISO9001; ISO14001; TSI16949
Model Number:
ASTM A106
Trading Properties
Minimum Order Quantity:
5 Tons
Price:
negotiable
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
5000 Ton per year
Product Summary
ASTM A106 A53 API 5L Seamless Carbon Steel Tubing For High Temperature Service ASTM A106 seamless pressure pipe (also known as ASME SA106 pipe) is commonly used in the construction of oil and gas refineries, power plants, petrochemical plants, boilers, and ships where the piping must transport ...
Product Details
Highlight:
astm a106 pipe
,ASTM A106 carbon seamless pipe
,TORICH Carbon Seamless Pipe
Product Name:
ASTM A106 A53 API 5L Seamless Carbon Steel Tubing
Product Keyword:
Seamless Carbon Steel Tube
Grade:
GradeA GradeB GradeC
Application:
For High Temperature Service
Secondary:
Non-secondary
Section Shape:
Round
Product Description
ASTM A106 A53 API 5L Seamless Carbon Steel Tubing For High Temperature Service
ASTM A106 seamless pressure pipe (also known as ASME SA106 pipe) is commonly used in the construction of oil and gas refineries, power plants, petrochemical plants, boilers, and ships where the piping must transport fluids and gases that exhibit higher temperatures and pressure levels.
Type: Seamless Carbon Steel Tube
Application: For high temperature service
Technique: Cold Drawn
Size:
| OD | 5-420mm |
| WT | 1-50mm |
| LENGTH | Max12000mm |
Process:
Killed steel, with primary melting process being open-hearth, basic-oxygen, or electric-furnace, possibly combined with separate degassing or refining.
Steel cast in ingots or strand cast is permissible.
Hot-finished pipe need not be heat treated.
Cold-drawn pipe shall be heat treated after the final cold draw pass.
Chemical Composition:
| Steel Grade | C | Mn | P | S | Si | Cr | Cu | Mo | Ni | V |
| max | max | max | min | max | max | max | max | max | ||
| A | 0.25 | 0.27~0.93 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
| B | 0.30 | 0.27~1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
| C | 0.35 | 0.27~1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
Mechanical Proporties:
| Grade | Tensil Strength Mpa | Yield Point Mpa | Elongtation % |
| A | ≥330 | ≥205 | 20 |
| B | ≥415 | ≥240 | 20 |
| C | ≥485 | ≥275 | 20 |

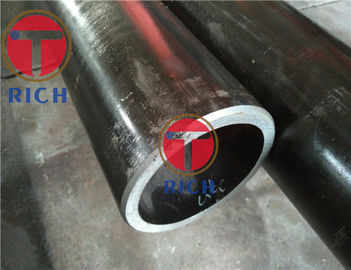

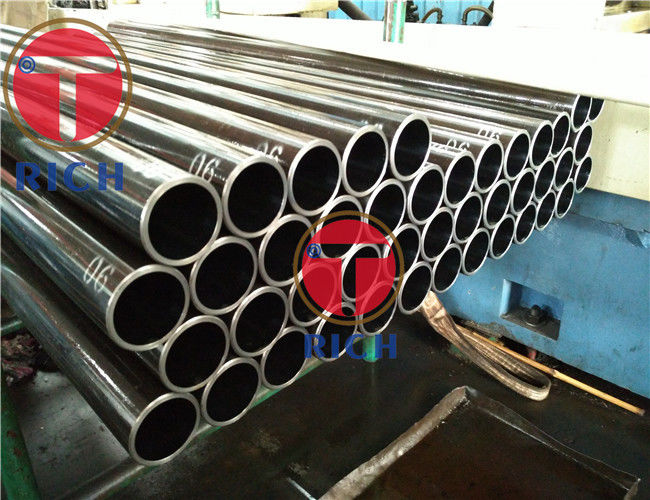

Product Show:
FAQ
Q: Are you trading company or manufacturer?
A: We are a professional steel pipes materials manufacturer.
Q: How long is your delivery time?
A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.
Q: Do you provide free samples?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
