ASTM B280 C12200 Seamless Copper Tube For Conditioning

Minimum Order Quantity : 200 kg Price : negotiable
Packaging Details : packing in wooden boxes Delivery Time : 30-35 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5000 Ton per year
Place of Origin: ZheJiang,CHINA Brand Name: TORICH
Certification: ISO9001; ISO14001; TSI16949 Model Number: ASTM B280

Detail Information

Product Name: ASTM B280 C12200 Seamless Copper Tube For Conditioning Product Keyword: Copper Seamless Tube
Grade: C10200 C12000 C12200 Application: For Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe
Secondary: Non-secondary Section Shape: Round
High Light:

C12200 Seamless Copper Tube

,

ASTM B280 Seamless Copper Tube

,

C12200 Seamless Copper Conditioning Tube

Product Description

ASTM B280 C12200 Seamless Copper Tube for conditioning

This specification covers the requirements for seamless UNS C10200, C12000, or C12200 copper alloy tubes used for connection, repairs, or alternations of field air conditioning or refrigeration units. Materials in the form of billets, bars, or tubes should be used to produce a homogeneous uniform wrought structure by either hot or cold working. Each tube should be cold drawn to the finished size and wall thickness. Coiled lengths with soft annealed tempers should be bright annealed after coiling then dehydrated and either capped, plugged, crimped, or otherwise closed at both ends. Straight lengths with hard drawn tempers should be cleaned and either capped, plugged, or otherwise closed at both ends.

Type: Copper Steel Tube

Application: For Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe

Technique: Cold Drawn

Size

OD 5-30mm
WT 0.3-2mm
LENGTH Max12000mm



GENERAL SPECIFICATIONS:

Cleanliness: Bore quality meets the 0.038g/m ASTM B280 specified limit

Material: C12200, Cu 99.9% min, P 0.015 – 0.040%

Mechanical Properties : Tensile Strength: 290 MPa (min) | Elongation: 3% | Hardness: >100 HV

Temper: Hard Drawn

Packaging: Bore internally cleaned and capped

Bending: Not suitable for bending

Length: Manufactured in 10ft lengths, other lengths available on request

Length: Manufactured in 10ft lengths, other lengths available on request



Scope

1.1 This specification establishes the requirements for seamless copper tube intended for use in the connection, repairs, or alternations of air conditioning or refrigeration units in the field.

NOTE 1: Fittings used for soldered or brazed connections in air conditioning and refrigeration systems are described in ASME Standard B16.22.

NOTE 2: The assembly of copper tubular systems by soldering is described in Practice B828.

NOTE 3: Solders for joining copper tubular systems are described in Specification B32. The requirements for acceptable fluxes for these systems are described in Specification B813.

1.2 The tube shall be produced from the following coppers, and the manufacturer has the option to supply any one of them, unless otherwise specified:

Copper
UNS No.
Previously Used
Designation
Description
C10200 OF Oxygen free without
  residual deoxidants
C12000 DLP Phosphorus deoxidized,
 low residual phosphorus
C12200 DHP Phosphorus deoxidized,
 high residual phosphorus

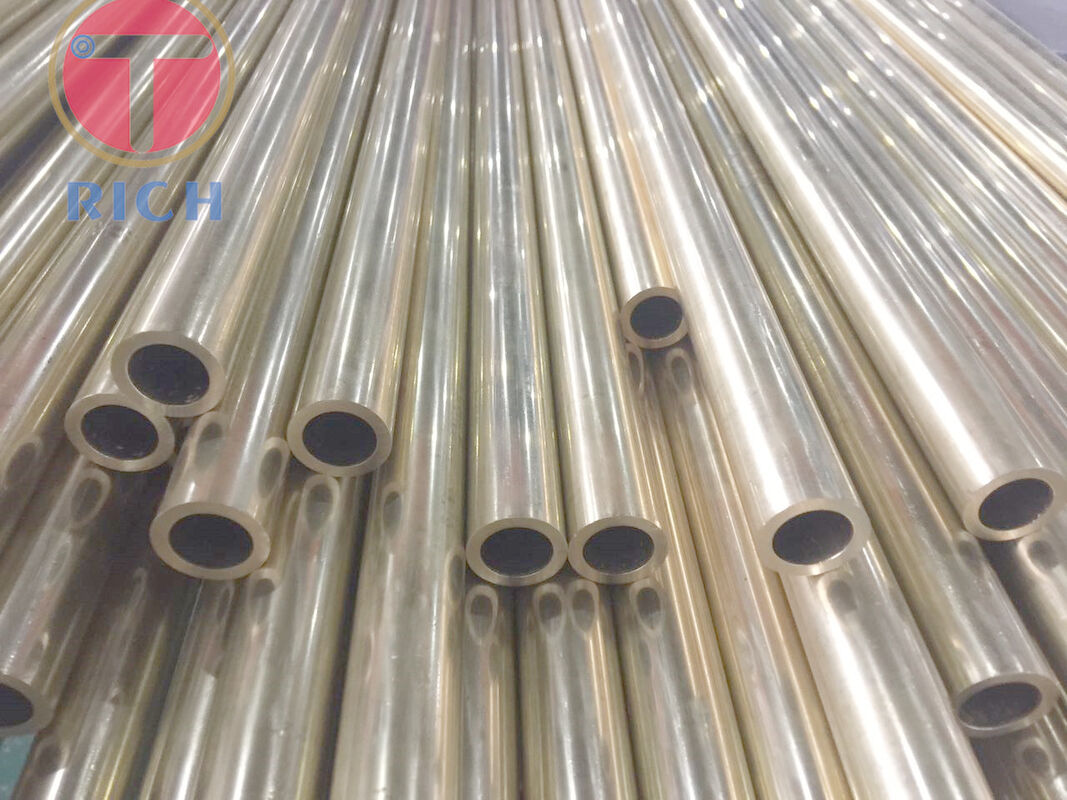

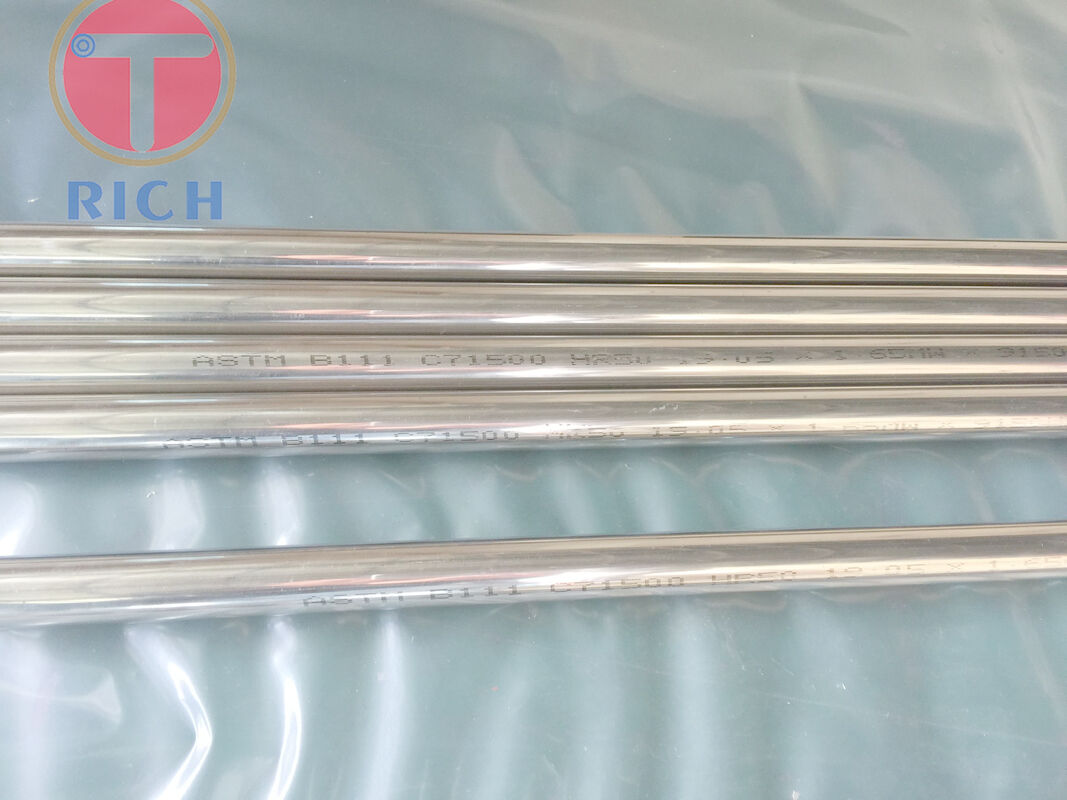

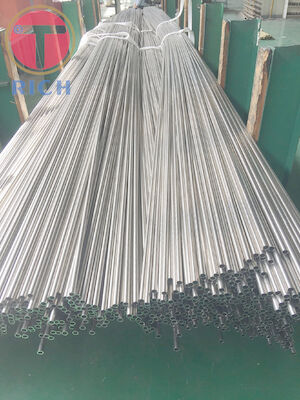

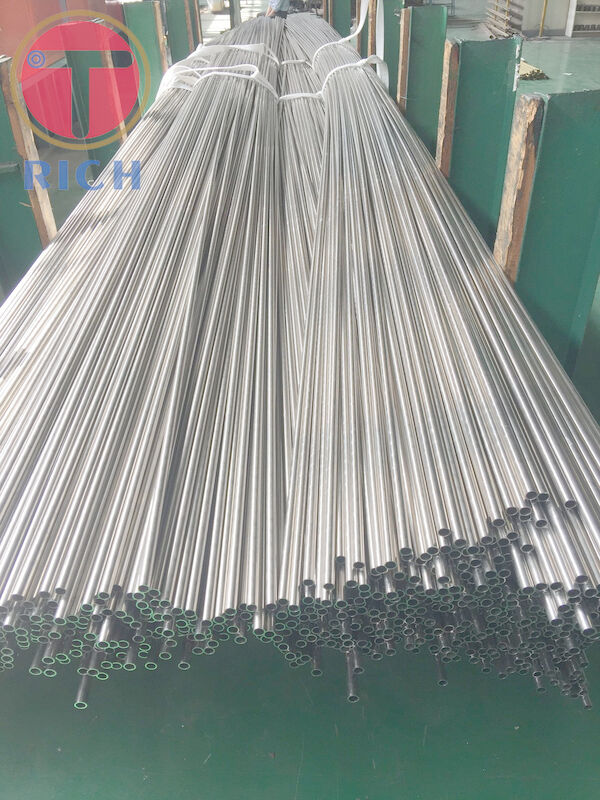

Product Show:


FAQ

Q: Are you trading company or manufacturer?

A: We are a professional steel pipes materials manufacturer.



Q: How long is your delivery time?

A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.



Q: Do you provide free samples?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.



Q: What is your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
