ASTM B111 C68700 Heat Exchanger Tubes
Basic Properties
Place of Origin:
ZheJiang,CHINA
Brand Name:
TORICH
Certification:
ISO9001; ISO14001; TSI16949
Model Number:
ASTM B111
Trading Properties
Minimum Order Quantity:
200 kg
Price:
negotiable
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
60000 Ton per year
Product Summary
ASTM B111 C68700 Aluminum Brass Seamless Tube for Condensers and Heat-exchangers Type: Copper Steel Tube Application: For surface condenser, heat exchanger, and evaporators Technique: Cold Drawn Size: OD 5-420mm WT 1-50mm LENGTH Max12000mm Chemical Composition: Chemical Composition Elements ...
Product Details
Highlight:
C68700 Heat Exchanger Tubes
,ASTM B111 Heat Exchanger Tubes
,C68700 Heat Exchanger pipe
Product Name:
ASTM B111 C68700 Aluminum Brass Seamless Tube For Condensers And Heat-exchangers
Product Keyword:
Aluminum Brass Seamless Tube
Grade:
C68700
Application:
For Surface Condenser, Heat Exchanger, And Evaporators
Secondary:
Non-secondary
Section Shape:
Round
Product Description
ASTM B111 C68700 Aluminum Brass Seamless Tube for Condensers and Heat-exchangers
Type: Copper Steel Tube
Application: For surface condenser, heat exchanger, and evaporators
Technique: Cold Drawn
Size:
| OD | 5-420mm |
| WT | 1-50mm |
| LENGTH | Max12000mm |
Chemical Composition:
| Chemical Composition | |
| Elements | Composition, % |
| Cu, incl. Ag | 76.0-79.0 |
| Sn | – |
| Al | 1.8-2.5 |
| Ni, incl. Co | – |
| Pb | 0.07 max |
| Fe | 0.06 max |
| Zn | Balance |
| Mn | 0.02-0.06 |
Mechanical Proporties:
| Copper or Copper Alloy UNS No. | Temper Designation | Annealing temperature, °C | Tensile Strength, min | Yield Strength, min | HV | |||
| Code | Name | ksi | Mpa | ksi | Mpa | |||
| C68700 | O61 | Annealed | above 650 | 50 | 345 | 18 | 125 | 150 |

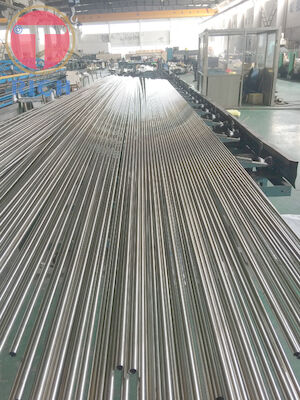

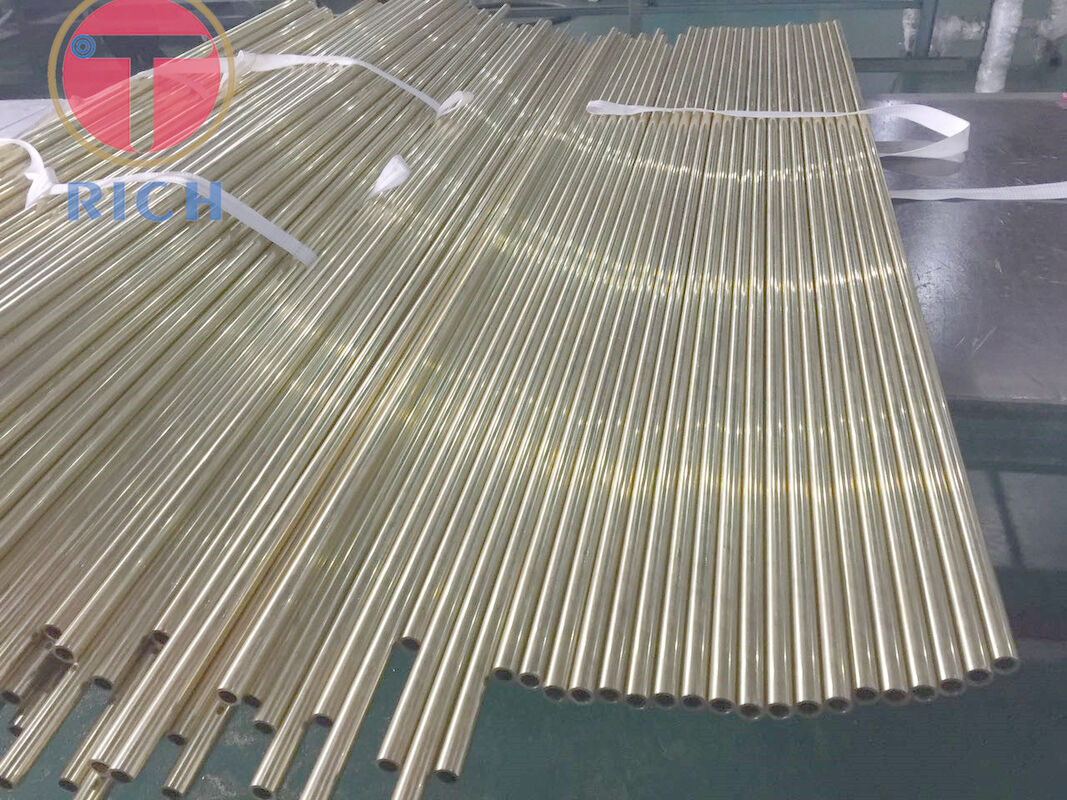

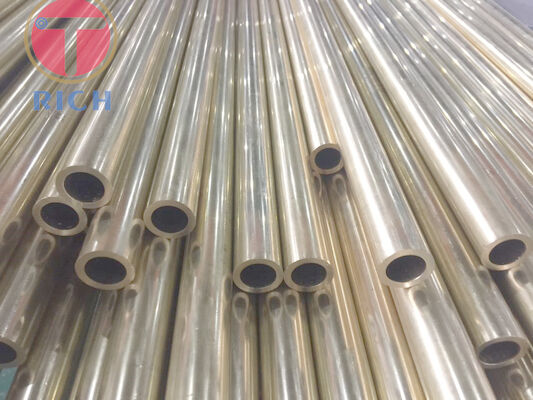

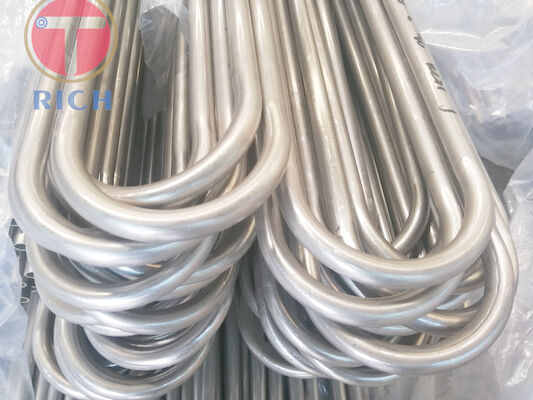

Product Show:
FAQ
Q: Are you trading company or manufacturer?
A: We are a professional steel pipes materials manufacturer.
Q: How long is your delivery time?
A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.
Q: Do you provide free samples?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
