incoloy 825 tubing Pipe Nickel Alloy Pipe
Product Details
ASME SB163 Nickel Alloy Pipe
,12m Length Nickel Alloy Pipe

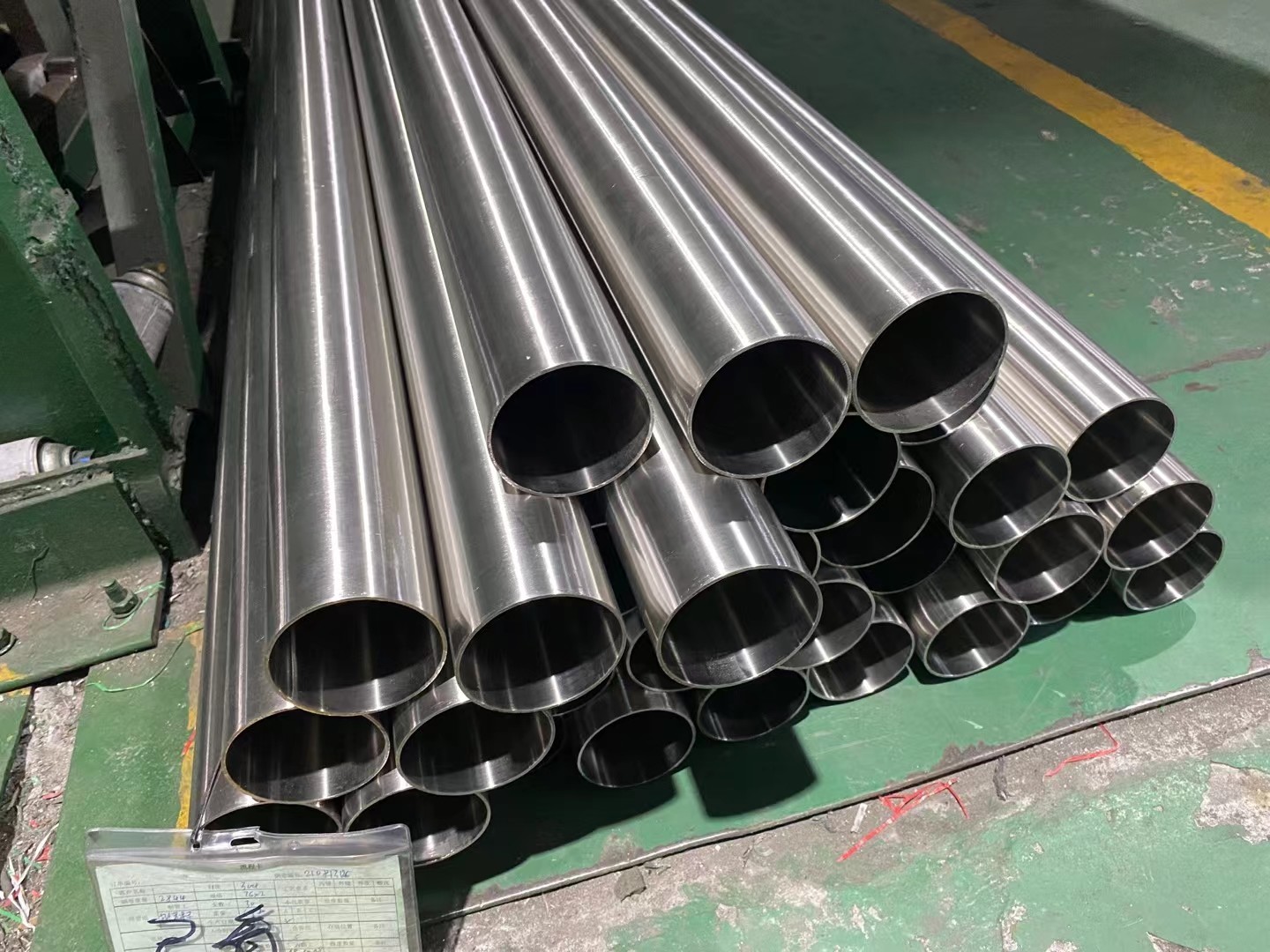

Incoloy 825 Tubing Pipe Nickel Alloy Pipe
Quick detail:
OD:3.18-114.3mm
WT:0.5-12mm
Standard:ASME SB163
Referenced documents:
ASTMB829
ASTMB880
Material: N08825
Delivery condition:Annealed
Chemical Composition:
| Alloy | Nickel | Cu | Mo | Fe | Mn Max | C
| Si Max | S Max | Cr | Al | Ti |
| UNS N08825 | 38-46 | 1.5-3.0 | 2.5-3.5 | 22 min | 1 | 0.05max
| 0.5 | 0.03 | 19.5-23.5 | 0.2 max | 0.6-1.2 |
Nickel-Iron-Chromium-Molybdenum-Copper alloy UNS N08825
Annealed special steel tubes
Mechanical properties
| Tensile Strength min ksi(Mpa) | Yield Strength Min psi(Mpa) | Elongation Min% | |
| Nickel-Iron-Chromium-Molybdenum-Copper alloy UNS N08825
| 85(586) | 35(241) | 30 |
ASTM B163
Referenced ASTM Standard:
B 829 Specification for general requirements for Nickel and Nickel Alloy seamless pipe and tube.
B 880 Specification for general requirements for Chemical check analysis limits for Nickel, Nickel alloys and Cobalt alloys.
E 8 Test method for tension testing of metallic materials.
E 18 Test methods for rockwell hardness and rockwell superficial hardness od metallic materials.
E 29 Practice for using significant digits in test data to determine conformance with sprcifications.
E 76 Test methods for chemical analysis of Nickel-Copper alloys.
E 112 Test Methods for determining the average grain size.
E140 Hardness conversion tables for metal.
E 1473 Test methods for chemical analysis of Nickel, Cobalt and high-temperature alloys.
Keywords:
Seamless tube; UNS N02200; UNS N02201; UNS N04400; UNS N06025; UNS N06045; UNS N06600; UNS N06601; UNS N06603; UNS N06686; UNS N06690; UNS N08120; UNS N08800; UNS N08801; UNS N08810; UNS N08811; UNS N08825
-
